CGDI New Adapters Set for FC200 and AT200

CGDI New Adapters Set for FC200 and AT200

FC200 AT200 New Adapters Set No Need Disassembly

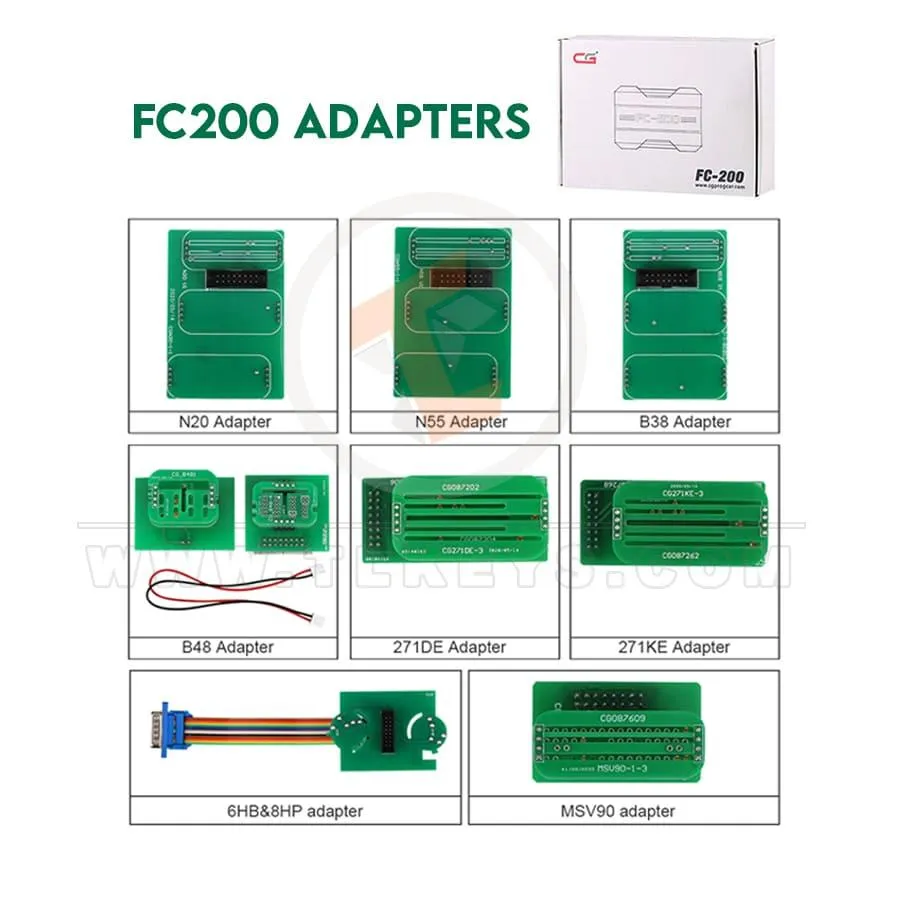

Adapters Including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
Work with both AT200 and FC200.
Each adapter of AT200/FC200 is written with the model of the corresponding ECU.
You only need to insert the interface board into the corresponding interface of the ECU.
If you feel that it cannot be pressed down, do not force it, or it will damage the ECU pins.
See the picture below for the specific insertion position and direction.

Functions of Each Adapter:

MSV90 Adapter:

This adapter supports ISN reading and writing and data backup and recovery of BMW MSV90.

N20 Adapter:

This adapter supports ISN reading and writing, VIN modification, and data reading and writing functions of the N20 and N13 of the F series chassis of the BMW.

B48/B58 Adapter:

This adapter supports ISN reading and data reading and writing functions of BMW models: MG1CS003, MG1CS024, and MG1CS201.

271KE Adapter 271DE Adapter:

These two adapters support the data backup and recovery functions of Mercedes-Benz SIM 271KE and SIM 271DE.

6HP 8HP Adapter:

The adapter is used for the data backup and recovery function of the 6HP and 8HP EGS of BMW models.

CGDI Adapters Set for FC200 and AT200 Package List:

1set x AT200/FC200 Adapter Set
including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
