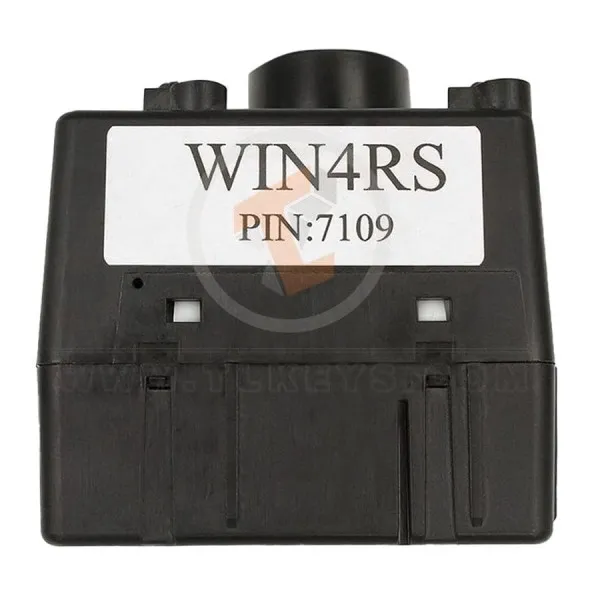

The Diagnostic Box Original WIN4RS Chrysler Wireless Ignition Node

WIN4/WIN4RS uses 4 bolts attaching it to the car

• Simple Plug and Play then the locksmith uses the TCode/MVP, Zed Full, Smartbox, or whatever
  programmer may have to simply program in new keys using the provided PIN on each WONDER WIN MODULE. That's it!
• Vehicles using a REMOTE START will need the appropriate WONDER WIN MODULE but use RS after for
  part. (SO WIN4RS is simply a WIN4 with an extra plug-in for vehicles that have a REMOTE START.)

Installation:

• WHEN removing, or installing a WIN module.

• Make sure the vehicle has a proper voltage of at least 12.3 volts.

• Always have in stock VIRGIN FOBIKS and POD keys for testing purposes.

• Always have a TDB003 for additional testing and confirmation.

• The vehicle battery does not need to be disconnected. Just make sure there is nothing left open to drain the battery.

• Even if the ignition is stuck in the ACC or RUN when the WIN is the unplugged vehicle will turn off. It’s OK!

• If FOBIK or POD key stays stuck inside the WIN turn it counterclockwise and plug the harness in again and this
  will release the key.
• IF it does not release you can use a paper clip and insert it inside the pin hole to the left side of the WIN module.

Testing and Troubleshooting existing WIN Module needs to replace:

• Turning a virgin key to the RUN position and the instrument cluster does not turn on AND the windows will not go up or down.

• IF TDB003 or TDB006 does not detect a signal from WIN when inserting and turning the key to ON.

• If your KEY PROGRAMMER cannot read the PIN or if it gives you an incorrect PIN after you have confirmed from DEALER /NASTF.

• If a new FOBIK remote does not lock/unlock doors. Test with TDB003 to make sure frequency is ok and the door locks operate via door switch.

• If you insert the key and it won’t turn at all.

• If you turn the vehicle to OFF and key won’t go back past ACC leaving accessories ON. In some cases, it takes 1 to 10 minutes for a CLICK to be heard and the key will release.

• If you have to put pressure while turning KEY to CRANK or you have to ‘wiggle’ the key to find the right spot to
  get the vehicle to start or stay running.

• If you remove the KEY and the vehicle stays running AND when you unplug the WIN it turns OFF. IF it does not turn OFF, the problem may be another module other than the WIN.

• If while driving the vehicle turns OFF when hitting ‘bumps’ in the road.

• If the SECURITY LIGHT (RED CIRCLE) stays flashing when using a working key and the vehicle will not CRANK and the light still flashes in the ON position. Even if you add a new FOBIK/POD and these conditions do not change.

Installation and Programming Instruction:
1. Remove old WIN and replace it with a new WONDER WIN MODULE. It will be held on with either 2 or 4 screws.
2. Unplug/Plug the one electrical connector. (Two if it’s remote start equipped.)
3. Using a key programmer that is capable of programming these types of vehicles, simply PROGRAM in from your stock new/virgin POD KEYS or FOBIK STYLE KEYS. (THE OLD KEYS WILL NOT WORK, they are synced to the old WIN module)
4. IF USING a T-Code or MVP you must select BY SYSTEM FOBIK B.
5. Use the provided PIN on the WONDER WIN MODULE.
6. ONCE a WONDER WIN MODULE has keys programmed into it, it CAN NOT be re-used on different
Vehicle.

WIN 4RS Models (with Remote Start)
Fits the following

2008-2010 Chrysler 300
2011-2015 Chrysler Town and Country
2008-2010 Dodge Charger
2009-2014 Dodge Challenger
2010-2013 Dodge Durango
2011-2015 Dodge Grand Caravan
2008-2009 Dodge Magnum
2009-2012 Dodge Ram
2013-2015 Dodge CV Cargo Van
2008-2010 Jeep Commander
2008-2013 Jeep Grand Cherokee
2011-2014 VW Routan
