Xhorse VVDI Key Tool Plus Pad Device

Original Xhorse - VVDI KEY TOOL Plus Pad Full Configuration Advanced Version Advance GL All In One Key Tool

Keytool Plus has it All: Computer, Mobile, Tablet, IMMO Programmer, Foreign Manufacturer, Transponder Generator, Programmer, Frequency Tester

VVDI KEY TOOL PLUS provides an all-in-one security solution for locksmiths without the need to take your laptop or mobile phone.
It supports IMMO programming for vehicles such as BMW, BENZ, AUDI, and VW.
Also, it can control Xhorse key-cutting machines.

VVDI Plus Key Tool Highlights:

• Global Advanced Version
• Faster than most ordinary smart devices
• Data processing, instruction completion, exECUtion operation, strong stability
• Combines the functions of VVDI 2, VVDI MB BGA, Key Tool Max Pro, VVDI Bim, VVDI PROG, and OBD Helper and is available to regulate Xhorse key-cutting machines.
  It provides an all-in-one ECU solution for locksmiths that combines the functions of VVDI2, VVDI MB, Key Tool Max, and VVDI PROG with the ability to expand capabilities as needed.
• Link with Xhorse key-cutting machines to claim one free MB BGA token per day.
  ID48 and Skim MB Key Password Online need a token, but both can read Xhorse bonus points.
• Multilingual: English, French, Spanish, Portuguese, Chinese.
• Free update online.
• 1-year Warranty
• Read Xhorse bonus points for 48 96-bit copies (100 points) and Mercedes calculation (200 points).
  It can bind with a key cutting machine, and Mercedes calculation can get a 1-day free token every day.
• Toyota H Smart Key AKL Without Emulator
• Versatility: extend possible IMMO programming for luxury cars

Xhorse Key Tool Plus Functions:

• Equipped to Outperform
• Support basic functions of a key tool, such as remote generation, cloning, transponder detection, and IMMO programming for Vw & Audi, BMW, and Mercedes Benz.
• Transponder Detection
• Transponder Cloning
• Transponder Generation
• Remote Cloning
• Remote Generation
• Frequency Detection
• Remote Renewal
• Clone IC/ID
• Vehicle Error Light Reset
• Control of the key-cutting machine
• Built-in OBD matrix switch
• RadioFrequency Simulator
• Integrated key identification coil
• Mercedes Benz infrared reading head
• Smart Key Simulator
• Long-distance real estate collection
• Chip PIN detection
• More functions to be added in future updates

Key Tool Plus Other Special Functions:

• Remote Renew
• Set VVDI Super Chip Type
• VVDI Special TP
• Unlock the Toyota Smart Key
• Detect Remote
• VVDI Remote Repair Calibration
• VVDI Smart Key Clone
• VVDI Smart Key Customization
• Charging Battery To Remote
• Honda Cycle Key Renew
• Remote upgrade 8th/unlock
• XM Smart Key Customization
• Toyota Smart Key Frequency Adjustment

Key Tool Plus Coming Soon Functions

OBD Diagnosis And MQB49 IMMO Programming Have Just Been Released On Key Tool Plus And It&rsquo is Projected To Support Doip, Can-FD, and Toyota 8A Smartkey Within The Near Future.

Notes:
* The Bosch ECU adapter cannot be used with Key Tool Plus.
It is for VVDI prog and VVDI Bimtool.
The BMW EWS4 adapter can use the key tool Plus.
But need an Extra Xhorse Multifunction Adapter converter to connect.
* The VVDI MB Power Adapter Fast Cable cannot be used with the pad.
The Pad uses a Benz power adapter in its package to quickly calculate the Pass.
* Benz EIZ / EZS adapter kits are often used with the Key Tool Plus.
But requires an optional DB9 adapter (not yet released) or modification.
* VVDI Toyota 8A adapter and VVDI remote renew adapters are often used with the VVDI pad.
* Tokens:

• XHORSE VVDI MB Yearly Subscription And Activation Free Token
• Xhorse 10 MB Token
• Xhorse 5 MB Token
• VVDI MB Token
• Xhorse 1 MB Token
• 1 Token For ID48-96 Bit Calculation

* Xhorse released a series of key tools plus solderless adapters to easily read solderless chips :

• Xhorse Solder Free Adapters
• Xhorse BCM2 Solder-Free Adapter Set XDNPABCL
• Xhorse XDNP16 Solder Free Adapter
• Xhorse XDNP11GL BMW CAS3 CAS3+ Solder Free Adapter
• Xhorse XDNP12GL CAS4 CAS4+ Solder Free Adapter
• Xhorse XDNP41 MC68HC05X32 Solder-Free Adapter

* Key tool Plus will do Chrysler IMMO with W (with 12+8 gateway adapter) and Ford AKL 2016-2021 with active alarm (with Ford AKL harness)

Xhorse VVDI Key Tool Plus Parameters:

CPU: 8-Core 2GHZ high-performance CPU
Ram + Rom: 4G + 128G large storage capacity
Operation System: Android 9.0
Screen Size: 10.1" HD Anti-glare. Anti-fingerprint. Super 10.1" Anti-glare Display Enables Top Operation Experience.
Rear HD Camera: 13.0mp. The 13MP HD Rear Camera Is Meant To Suit Multiple Scenarios Perfectly.
Battery Capacity: 10000mah. Long Battery Life And Pd3.0 Fast Charge Help Keep You Productive Throughout Your Day.
Charging: 30w Super Fast Charge
Bluetooth: 5.0 Bluetooth
WIFI: 2.4g/5g

Key Tool Plus Tested

• 2002 Toyota Yaris EEPROM 25020 chip 4C
• 1999 starlet EEPROM 24C04 chip PCF93
• 2007 RAV 4 reset IMMO ECU and made two keys manually
• 2010 Land cruiser Amazon reset IMMO ECU and made 2 keys manually
• 2004 Honda CR-V bench
• 2003 s class W220 bench
• 2017 Renault Duster bench
• 2002 Peugeot 407 bench thought BSI
• 2013 Model Volvo S80
• 2018 Model Volvo V40
• 2019 Model Volvo V40

What does the VVDI Plus Key Tool Consist of?

Light Sensor: detects the brightness in the surrounding environment
Pickup Coil: (including 125k low, 13.56m mid, 300-900m high frequency)

• Support reading, writing, and cloning common IMMO transponders
• Support reading common ID transponders
• Support reading common IC transponders
• Support common vehicle remote control frequency detection

IMMO Transponder Placement Hole: For Vehicle IMMO Transponders
USB Charging Port: Support standard quick charge adapter and standard Type-C port DC-5V input.
PS2 Port: for remote programming
DB15 Port: Supports standard and optional programming adapters with the DB15 port
DB25 Port: for OBD matching
Benz Infrared (IR) Port: Support Benz Fbs3 and Fbs4 smart play and support Benz Ir player.

Xhorse Key Tool Plus Advanced Processor

4xcortex-a53 Up To 2.3ghz
4xcortex-a53 Up To 1.8ghz
Memory 4g+ Storage 128g
Resolution Up To Fhd+ (2,400*1,080)

What will we complete with the Prog function on Key Tool Plus?
Support EEPROM Reading and Writing: Support reading and writing most types of transponders in the market.
Support BMW IMMO module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
Support Land Rover RFA module reading and IMMO programming.
Support Porsche BCM programming.
Support reading ECU with a box on Audi, BMW, and Volkswagen.
Support instrument programming on Honda, Kia, and Hyundai.


Key Tool Plus IMMO Key Programming Function:

Key Tool Plus supports more than 20,000 car models worldwide.
We will select car brands and car models on the IMMO programming interface.


Ren 4A Smart Card / 4A Flip Key (Kadjar, Koleos, etc.)	OBD Add Key All Keys Lost Prepare Dealer Key Vehicle With 4A Chips No Need For Reading Backup Flash No Risk Of The Car Dead
Mercedes Benz FBS3	FBS3 Add Key/All Keys Lost Fast Password Calculation With A High Success Rate Time-Saving (Use Benz Non-removal Adapter) Smart Key - All Keys, Lost Add A Key, Enable & Disable Keys EIS/EZS, ELC, ECU Gearbox, and ISM replacement
BMW	OBD Add Key/All Keys Lost CAS1 CAS2 CAS3+ CAS4 CAS4+ FEM BDC (Service Mode) ECU ISN Reading
VAG	IMMO2 IMMO3 IMMO3.5 IMMO4 IMMO5 MQB Add Key All Keys Lost
VAG Online	IMMO4 Add Key And AKL A6 Q7(J518) All Keys Lost MQB Add Key And AKL 5C Add Key Fast Inexpensive No Risk Of The Car Dead With VVDI Remote
Toyota 8A Mechanical Key	OBD Add Key And Every One Key Lost (No Got To Remove IMMO Box For AKL. Require 8A AKL Adapter
Mitsubishi	OBD Add Key All Keys Lost Prepare Dealer Key Outlander ASX Eclipse Cross Etc
Porsche	Generate Dealer Key For Brand Spanking New Porsche (-2018) OBD IMMO Programming (Key Tool Plus Read Dump And Generate Key)
Peugeot Citroen DS	OBD Read PIN Add Key And Every One Key Lost
Ford (-2018)	Smart Key Programming Without PIN Code For-2018 Models / Key Programming
Ford 2019	Key Programming Without Reading PFlash Backups For 2019 Up Focus Escort (Safe, No Risk.)
Jeep Chrysler Dodge	2018 Up Reading PIN Code And Key Programming Key Via OBD
Fiat Viaggio Palio	OBD Add Key AKL And Prepare Dealer Key
Buick Chevrolet Cadillac	OBD Read PIN Code (ID46 Transponder) Online Get PIN Code For A Few Cars With 4D/47 Transponders
Hyundai KIA	OBD Read PIN Code For Cars With 46, 47, 8A Transponders And Program Key
Honda 2019 Up AKL	OBD All Keys Lost For 10th Generation Accord, Envix, Fit, Inspire
Volvo (-2016)	OBD Read ISN By OBDII (Remote Key), Require Cem EEPROM Dump (Remote Key), Require CEM, KVM EEPROM Dump (Smart Key)
Chinese Cars	Support Key Programming For Common Chinese Cars And PIN Code Calculation Or OBD Read PIN Code For A Few Models

Key Tool Plus provides users with key programming, key learning, ECU Coding / Adapting / Replacing, Diagnostic functions, etc.
To solve most problems found in IMMO programming for Volkswagen and Audi cars.

VW & Audi:
3RD / 4TH / 5TH Generation
MQB
MED17 / EDC17

Key Tool Plus can do BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ OBD Key Learning, FEM/BDC Key Programming, File Make Key, ECU ISN Reading, ECU, CAS Synchronization, Etc.
Getting the job done has never been easier.

BMW IMMO Programming
CAS3/CAS3+
CAS4/CAS4+
FEM/BDC
ECU ISN Read Function

Key Tool Plus provides users with comprehensive and professional security solutions for Mercedes-Benz.
The device supports FBS3 Keyless-GO smart key programming, all key lost, key adding, key activation and deactivation, and EIS/EZS, ELV, ECU, Gearbox, and ISM replacement.

Benz IMMO Programming
FBS3 standard keys and FBS3 keyless keys
Smart keys, all keys lost, add keys, activate and deactivate keys
Replacement Eis/EZS, ELV, ECU, Gearbox, and ISM

Solve the Programming Dilemma

IMMO Data Tool (Create Key File)
For some cars, key programming and other settings cannot be completed via OBDII.
KEY TOOL PLUS gives incredible strength to solve the dilemma by providing a File Make Key function which can be used to add keys for them.
This very function can generate a transponder through the direct reading of the transponder data related to the car's IMMO module.
Examples: Magotan/CC 48 transponder File Make Key SUPPORT Audi, Jaguar, Volvo, Ford, BMW, Land Rover, Buick, Kia, Bentley, Peugeot, Cadillac, Toyota, Honda, Porsche, Chevrolet, Nissan, etc.

Versatile Automotive Safety Device:

KEY TOOL PLUS simplifies IMMO programming for luxury cars like Volkswagen, AUDI, BMW, BENZ, Porsche, Bentley, SEAT, etc.
Users can easily complete difficult work on one tablet.
Plus, the support car models won't stop there:
More cars will be included in the list by Xhorse.

Leadership team with Advanced Technology

KEY TOOL PLUS provides users with functions such as key programming, key learning, ECU Coding / Adapting / Replacing, Diagnostic Functions, etc.
to best solve most of the problems they encountered in IMMO programming for Volkswagen and AUDI cars.

Key Tool Plus Pad Transponder & Remote Function:

The most comprehensive vehicle database ever.

Transponders
ID46 online calculation
ID48 (96-bit) online calculation
Toyota H(8A) online calculation
Transponder generation and cloning of more than 850 car models
Special transponders and special cars and vintage car models

Remotes
Support Remote Generation, Smart Key Generation, Frequency Detection, and Remote Clone For A Spread Of Car Models HCS / Fix Code Clone, Non-HCS Rolling Code Clone, Fix Code Editing PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X Fix Code Editing


Combined
Its design concept is to unite the functions of your various devices and offers the advantage of ultra-convenience at your fingertips.

Programming Function:
Key Tool Plus is designed with a Prog function, which can work as a seamless programmer, directly reading and writing common modules and chips for many car models.
Xhorse is the first to provide this integrated solution.
Key Tool Plus supports reading and writing common modules and chips.
It covers "EEPROM and Flash", "IMMO", "Instrument", "Airbag", "ECU", etc.

Support Modules
BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC
Benz: EIS/EIZ
Landrover: RFA
Porsche: BCM
Volvo: CEM/KVM
BMW / Audi/ VW: ECU And More
Honda / Hyundai / Kia: MB91F Dashboard


 Note:
To complete some functions, users need to connect Key Tool Plus to the precise adapters and get the specified model prompt on the interface.
The function is just effective on advanced editing.

IMMO Data Tool (Create Key File) Supports Jaguar - Land Rover - Porsche - Volvo - Mitsubishi - Et Al.
Some cars, key programming, and other settings cannot be completed via OBDII.
Key Tool Plus gives amazing strength to solve the dilemma by providing the file key creation function which can be used to add keys for them.
This very functional feature generates a transponder via reading transponder data related to the Car IMMO module directly.
File Make Key, to get car key via knowledge file.
Users need to use the specific device to read IMMO data and generate a start transponder to start the car directly, not matching the first car.
(Users may need to re-write the information in the IMMO box during the programming process on some car models.)


Xhorse Pad supports key file creation functions for common car models and motorcycles.
It will easily find the car models we want by brand area, name, and A-Z word search.

Maintenance Function
Meet your work demands in every way.
Key Tool Plus supports Maintenance Light Reset, Electric Parking Brake, Tpms, Battery Matching, Throttle Program, Injector Programming, Steering Angle Programming, biting decoding, gearbox programming, headlight programming, etc.
Other maintenance functions will be available soon.

How can the Key Tool Plus Pad control key-cutting machines developed by Xhorse?

Key Tool Plus regulates key-cutting machines ( Condor Dolphin XP-005, Dolphin II XP-005L, Condor Dolphin XP-007, and Panda), to work perfectly as an operation screen.
By using Key Tool Plus, completely liberate your mobile phones.



Cloud-c Diagnostic Mode: After Key Tool Plus starts the C mode of cloud diagnosis, it generates the local C-terminal ID and sends the C-terminal ID to the client who provides the remote service.
Customers use cloud diagnostic Xhorse B-terminal device, after inputting C ID and logging in with the Plus Pad for remote diagnosis, programming, coding, pairing, maintenance, and other functions.

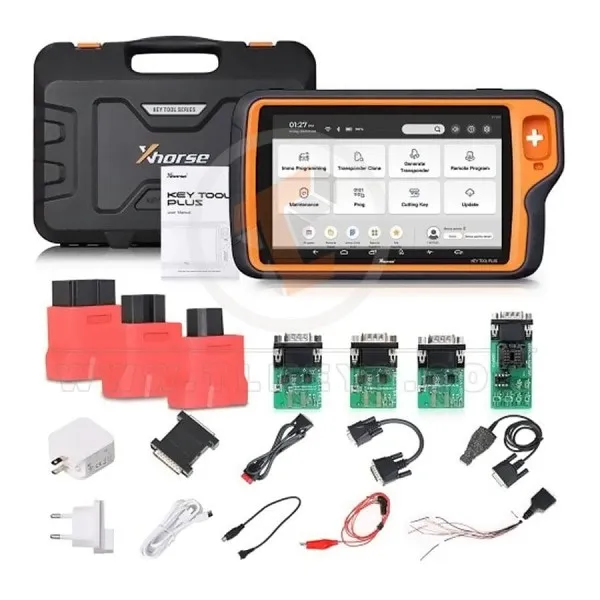

Xhorse VVDI Key Tool Plus Full Package List:

• Key Tool Plus
• User Manual
• Certification And Warranty Card
• Charger
• USB3.0 Type-C Cable
• OBD_DB25 Cable
• OBD_KLA_10 Connector
• OBD_KIA_20 Connector
• OBD Honda 3 Connector
• Remote_PS2 Programming Cable
• Transponder Box
• Prog_DBI5_15 Cable
• Prog EEPROM Adapter
• Benz IR Adapter
• Benz NEC1 Adapter
• Benz NEC2 Adapter
• Benz NEC3 Adapter
• Benz Power Adapter
• 9S12XE Cable
• MCU Cable
