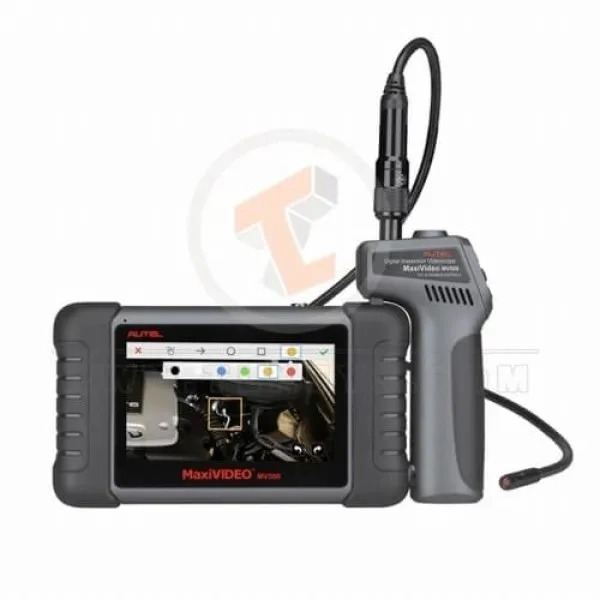

Autel Maxivideo MV500
Autel MaxiVideo MV500, the Autel 5-inch Wireless Tablet & Digital Camera Tool, is ideal for visual inspection of difficult to reach areas
- SKU: TL32321
-
Category:
Key Programming / Diagnostics Tools
- MANUFACTURER: Autel
Attributes
| weight | 0.29 KG |
|---|
Description
Views images in real time
Ideal applications: water restoration, HVAC and refrigeration, electrical inspection,
automotive, pest control
Mini USB connector for uploading images and videos to a computer
White LED to illuminate the inspection area, with illumination control
Supports wireless image transmission of up to 30 meters between the display tablet and
inspection scope
One-year limited warranty
Additional information
| Recommended Use |
Indoor |
|---|---|
| Operating System |
Android TM 4.4.2, KitKat |
| Processor |
Tablet:RockChip RK3188 Cortex-A9 quad-core processor (1.6 GHz) |
| Memory |
Tablet:1GB RAM DDR3 & 16GB ROM |
| Display |
Tablet:5-inch LCD capacitive touchscreen with 1280×720 resolution |
| Dimensions |
Tablet:195.2 x 115.6 x 32.4 mm (7.7"x 4.6"x 1.3") |
| Connectivity |
Tablet: SD card (supports up to 32GB) |
| Wi-Fi |
802.11 b/g/n |
| Camera |
Tablet:Rear-facing, 5-megapixel |
| Sensor |
Tablet:Gravity accelerometer |
| Audio Input/Output |
Tablet:Microphone, Single speaker |
| Power and Battery |
Tablet:3.7 V/3200 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life |
Tablet:Around 3.5 hours of continuous use |
| Battery Charging Input |
5V/3A |
| Power Consumption |
3W |
| Net Weight |
Tablet:463 g (1.02 lb.) |
| Optimal Viewing Distance |
Handle:2.5 cm to 35.6 cm (1” to 14”) |
| Image Capture |
Handle:JPG images (1280 x 720) H.264 videos (1280 x 720) |
| Image Controls |
Handle:Zoom, low light vision |
| Lighting |
Handle:Fully adjustable LED light 40 Lm (flashlight) |
| Cable Reach |
Handle:1 m (39.4") |
| Imager Heads |
Handle:8.5 mm (0.33"), about 1.0 megapixel (1280 x 720) |
| Waterproof |
Handle:To a depth of 1.6 m (63") (imager heads and cable) |
| Additional Port |
Handle:Mini USB – 10 Pin |
