SKU: TL33753
Full System Diagnostic Smart Key and ODO with TMAX
$1450.00
- SKU: TL33753
-
Category:
مفتاح دراجة نارية
Attributes
weight | 0.04 KG |
---|

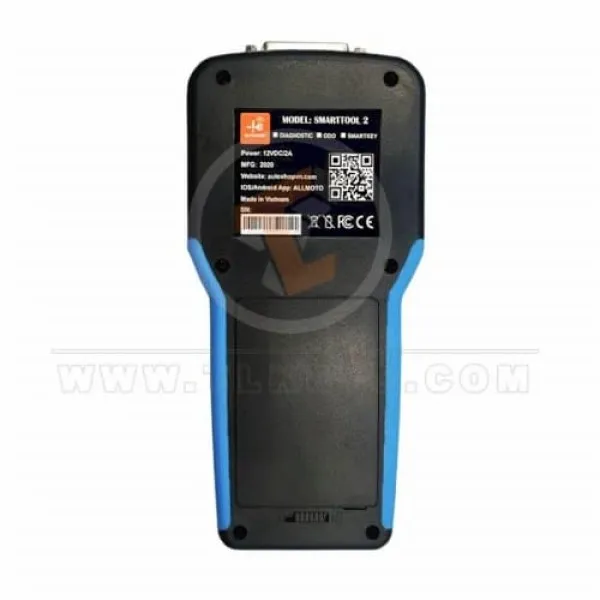

Autoshop Smarttool2 Smart tool ECO - Smart Key and ODO Motorcycle Motorbike Programmer
Tuning, Remap, Diagnostic, Programming Smartkey, and ODO | motorbike key programmer SMARTTOOL2 ECO Programming SmartKey
SMARTTOOL2 is a phone diagnostic tool researched and produced in Vietnam, this multifunctional device is used for motorcycles equipped with PGM-FI electronic fuel injection, anti-lock braking system, smart key system, immobilizer, odometer, and LED lighting system.
In addition, SMARTTOOL2 also integrates one of the latest technologies that resets, adjusts, and unlocks the RPM limit, and A/F tuning for Honda, Yamaha, Piaggio/Vespa, and Suzuki models.
- The tool with a simple interface and is easy to use
- ALLMOTO app was used free for searching electrical circuit diagram and repair guide
- Technology transfer, technical support department
- Using in many languages: English, Vietnamese, Indonesian
- Auto-update on the internet, customers can update by themselves
- Free for update and warranty in 12 months
- Distributors in China, England, France, Italy, Japan, Korea, UAE, Israel, Indonesia, Thailand, Myanmar and other countries
- Support all motocycles: HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM, KYMCO
- Support ECU/ECM manufacturers: Shindengen, Keihin, Denso, Magneti marelli
Diagnostic engine system/ PGM - FI system
- Auto search motorbike
- Read current and history DTC
- Erase DTC, reset ECM
- Engine Live Data
- Check A/F ratio
- Analysis Emission
- View ECU/ ECM Info
- Adjust CO Value (A/F ratio)
- Check sensor operation
- Active test component
- Software upgrade ECU for Honda and Piaggio/Vespa
- Environmental factor / Altitude setting
- Reset the idle air control valve IACV / ISC
- Reset/set the "0" point position of the throttle position sensor
- Erase error P0611 full EEPROM memory of Piaggio / Vespa vehicles
- Supports all motorcycle HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM, and KYMCO
Diagnostic ABS
- Read current and history DTC
- Erase DTC
- ABS Live Data
- Active test component
- View ACU Info
- Support motorcycle: HONDA, YAMAHA, and PIAGGIO
Remap, tuning, and open RPM limit
- In addition to the normal functions as the device diagnostic, SMARTTOOL2 also integrated with remapping and tuning technology, open RPM limit
- Tuning or Remapping is the same. Tuning is the editing of the fuel and fire maps, Remapping is a refresh of the fuel and fire maps in ECM.
Revolving is opening the rpm limit within the permissible limit to meet the mechanical part of the manufacturer - Adjusting the Air/Fuel ratio (A / F)
- Improved engine performance following the different working modes and terrain conditions and operating environments of the motorbike
- Compensate for small mechanical wear (eg, injector mechanical ...) or error due to aging of a sensor, leading to drift of sensor value range.
- Handling some car fuel consumption cases high injection time, fuel-saving, low Garanti
- Open the rpm limit or return the manufacturer zin
- For a different driving experience - more realism
- Support remapping for Honda SH150i / PS150 entered (2007-2008) ECU code: 16400 - KTG -xxx
- Support tuning for PIAGGIO ECM / ECU codes: 26M3G1HW and 28M3G1HW (see support list)
- OFF the oxygen sensor with Piaggio / Vespa
- Set the speed at idle (from 1500 RPM to 1800 RPM)
- Height setting (above 2000m and below 2000m)
- Reload original main data of the Piaggio / Vespa MCU vehicle
REMAPPING HONDA (ECM KEIHIN)
NO | BRAND | MODELS | YEAR | ECM CODE | ID | Mã ECMID | VERSION |
1 | HONDA | FUTURE 125_LED | 2020 | 38770-K73-V81 | 01034F1801 0103ED1101 |
016994072 017034513 |
30, 3F, 3R |
2 | FUTURE 125_2019 | 2019-2020 | 38770-K73-V42 | 0103141101 | 016978961 | 30, 3F, 3R | |
3 | FUTURE 125 | 2016-2018 | 38770-K73-VO2 | 0102671101 | 016934673 | 30, 3F, 3R | |
4 | FUTURE 125 | 2014 | 38770-KYZ-G01 | 0101B91101 | 016890129 | 30, 3F, 3R | |
5 | FUTURE/ WAVE RSX 110 | 2012-2013 | 38770-KYZ-TO3 | 0100FBOE02 | 016841486 | 30, 3F, 3R | |
6 | FUTURE/ WAVE RSX 110 | 2014-2015 | 38770-KYZ-V71 | 01015F1101 | 016867089 | 30, 3F, 3R | |
7 | FUTURE/ WAVE RSX 110 | 2012-2013 | 38770-KYZ-V21 | 0101001101 | 016845841 | 30, 3F, 3R | |
8 | WAVE RSX 110 Fi_2019 | 2019-2020 | 38770-G90-VO2 | 0102681101 | 016934929 | 30, 3F, 3R | |
9 | WAVE RSX 110 Fi_2019 | 2019-2020 | 38770-K90-VO2 | 0102681101 | 016934929 | 30, 3F, 3R | |
10 | WAVE RSX 110 Fi_2020 | 2020-2021 | 38770-K90-V03 | 0102681102 | 016934929 | 30, 3F, 3R | |
11 | WAVE Fi 125 | 2019-2020 | 38770-K90-VC1 | 01038D1101 | 017009937 | 30, 3F, 3R | |
12 | WAVE 110 2014 | 2014-2015 | 38770-K03-M01 | 0101891101 | 016877841 | 30, 3F, 3R | |
13 | WAVE 110 2014 | 2014-2015 | 38770-K03-H01 | 0101880D01 | 016877581 | 30, 3F, 3R | |
14 | WAVE 125 Fi 2019 Thai Land | 2019-2020 | 38770-K73-TC1 | 01033EODO1 | 016989709 | 30, 3F, 3R | |
15 | WAVE 125 Fi 2019 Thai Land | 2019 | 38770-K73-T32 | 0103141102 | 016978961 | 30, 3F, 3R | |
16 | WAVE RSX 110 Fi 2014 Thai Land | 2014-2015 | 38770-658-T81 | 0102B90001 | 016955661 | 30, 3F, 3R | |
17 | WAVE RSX 110 Fi 2014 Thai Land | 2014-2015 | 38770-K58-TC2 | 01034CODO1 | 016993293 | 30, 3F, 3R | |
18 | WINNER 150 V1 | 2017-2018 | 38770-K56-V01 | 0101CB1101 | 016894737 | 30, 3F, 3R | |
19 | WINNER X 150 | 2019-2020 | 38770-K56-V51 | 0103591101 | 016996625 | 30, 3F, 3R | |
20 | SONIC 150 | 2019-2020 | 38770-K56-N01 | 0101C90F01 | 016894223 | 30, 3F, 3R | |
21 | GTR-150 V2 2020 WINNER X 2020 | 2019-2020 | 38770-K56-NJ1 | 0103920F01 | 017011215 | 30, 3F, 3R | |
22 | GTR 150 V1 | 2017-2018 | 38770-K56-N11 | 0101CAOF01 | 016894479 | 30, 3F, 3R | |
23 | GROM / MSX 125 | 2020 | 38770 K26-B42 | 0102130101 | 016913153 | 30, 3F, 3R | |
24 | GROM / MSX 125 | 2016-2019 | 38770-K26-B13 | 0102130501 | 016913157 | 30, 3F, 3R | |
25 | GROM / MSX 125 | 2016-2019 | 38770-K26-B02 | 0102130D01 | 016913165 | 30, 3F, 3R | |
26 | MSX 125 | 2016-2019 | 38770-K26-C31 | 0102570501 | 016930565 | 30, 3F, 3R | |
27 | MSX 125 | 2014-2016 | 38770-K26-901 | 0101350101 | 016856321 | 30, 3F, 3R | |
28 | MSX 125 | 2014-2016 | 38770-K26-911 | 0101350501 | 016856325 | 30, 3F, 3R | |
29 | MSX 125 | 2013-2015 | 38770-K26-931 | 0101350101 | 016856321 | 30, 3F, 3R | |
30 | SCR 110 | 2010-2012 | 38770-GFM-902 | 0100200E02 | 016785422 | FULL VERSION | |
31 | SCR 110 | 2010-2012 | 38770-GFM-961 | 01003A0101 | 016792065 | FULL VERSION | |
32 | LEAD 110 | 2010-2011 | 38770-GGE-901 | 0100B41101 | 016823313 | FULL VERSION | |
33 | LEAD 110 | 2011-2012 | 38770-GGE-941 | 01006D1101 | 016805137 | FULL VERSION | |
34 | AIR BLADE 110 | 2008-2010 | 38770-KVG-V21 | 0100081101 | 016828433 | FULL VERSION | |
35 | AIR BLADE 110 THAI LAND | 2008-2010 | 38770-KVG-A31 | 01009AODO1 | 016816653 | FULL VERSION | |
36 | SH Y 150/ PS 150 | 2007-2008 | 16400-KTG-641 | 01001D0101 | 016784641 | 30, 3F, 3R | |
37 | SH ITALY 150 | 2009-2010 | 16400-KTG-921 | 0100940101 | 016815105 | 30, 3F, 3R | |
38 | SH ITALY 150 | 2009-2010 | 16400-KTG-922 | 0100940101 | 016815105 | 30, 3F, 3R | |
39 | SH ITALY 150 | 2010-2011 | 16400-KTG-982 | 0100940101 | 016815105 | 30, 3F, 3R | |
40 | SH 125 | 2007-2008 | 16400 KTF-641 | 01001C0101 | 016784385 | 30, 3F, 3R | |
41 | SH 125 | 2010-2011 | 16400 KTF-982 | 0100930101 | 016814849 | 30, 3F, 3R | |
42 | SH 300i | 2008-2010 | 38770-KTW-903 | 0100450103 | 016794881 | 30, 3F, 3R | |
43 | SH 300i | 2007-2012 | 38770-KTW-B02 | 0100530101 | 016798465 | 30, 3F, 3R | |
44 | SH 300i VN | 2008-2010 | 38770-KTW-901 | 0100450101 | 016794881 | 30, 3F, 3R | |
45 | AIR BLADE 110 | 2011-2013 | 38770-KVG-V42 | 0100F91103 | 016840977 | 30, 3F, 3R | |
46 | AIR BLADE 110 | 2011-2013 | 38770-KVG-V41 | 0100F91102 | 016840977 | 30, 3F, 3R | |
47 | CLICK 110i | 2013-2015 | 38770-KVB - T03 | 0100880D02 | 016812045 | 30, 3F, 3R | |
48 | VISION 110 | 2012 | 38770-KZL-E71 | 0101621101 | 016867857 | 30, 3F, 3R | |
49 | VISION 110 | 2011 | 38770-KZL-E13 | 0101021102 | 016843281 | 30, 3F, 3R | |
50 | VISION 110 | 2011 | 38770-KZL-E12 | 0101021101 | 016843281 | 30, 3F, 3R |
REMAPING PIAGGIO/VESPA
No | Brand | Part ECM/ECU | Year | Hardware code ECM/ECU |
OFF 02/Heater | Set altitude | Set IDLE Speed |
1 | PIAGGIO/VESPA | 26M3G1HW | 2012-2015 | CM088103 | Yes | Yes | Yes |
2 | CM088109 | ||||||
3 | CM088111 | ||||||
4 | CM088112 | ||||||
5 | CM088113 | ||||||
6 | CM088116 | ||||||
7 | CM088117 | ||||||
8 | 28M3G1HW | CM084901 | |||||
9 | CM084902 | ||||||
10 | CM084915 | ||||||
11 | CM084803 |
REMAP HONDA ACG (ECM SHINDENGEN)
NO | MODELS | YEAR | ECM CODE | KEY | VERSION |
1 | LEAD 125 | 2018 - 2020 | K12K-V11-V01 | SMARTKEY | 3H, 3R |
2 | LEAD 125 | 2018 - 2020 | K12M-V91-V01 | SMARTKEY | |
3 | LEAD 125 | 2017-2019 | K12H-931-V01 | NO - SMARTKEY | |
4 | SH MODE 125 | 2018 - 2020 | K29K-961-V01 | SMARTKEY | |
5 | SH MODE 125 | 2018 - 2020 | K29M-V81-V01 | NO - SMARTKEY | |
6 | VISION 110 | 2018 - 2020 | K44F-V01-VNO1 | NO - SMARTKEY | |
7 | VISION 110 | 2018 - 2020 | K44P-V81-701 | NO - SMARTKEY | |
8 | VISION 110 | 2018 - 2020 | K44P-V91-V01 | SMARTKEY | |
9 | VARIOI CLICK 150 | 2017 - 2020 | K59J-A71-INO1 | SMARTKEY | |
10 | VARIOI CLICK 150 | 2017 - 2020 | K59K-T11-TH01 | SMARTKEY | |
11 | VARIOI CLICK 125 | 2016 - 2020 | KOOR-B61-INO1 | NO - SMARTKEY | |
12 | VARIOI CLICK 150 | 2016 - 2020 | K59F-A01-INO1 | NO - SMARTKEY | |
13 | AIR BLADE 125 | 2016 - 2020 | K66A-V01-VNO1 | NO - SMARTKEY | |
14 | AIR BLADE 125 | 2018 - 2020 | K66G-VG1-V01 | SMARTKEY | |
15 | SH 1251 | 2017 - 2020 | K77A-V01-V11 | SMARTKEY | |
16 | SH 1501 | 2017 - 2020 | K78A-V11-V01 | SMARTKEY | |
17 | AIR BALDE 125 | 2020-2021 | K1F-V01-V01 | SMARTKEY | |
18 | AIR BALDE 150 | 2020-2021 | K1G-V01-V01 | SMARTKEY | |
19 | AIR BALDE 125 | 2020-2021 | K66G-VE1-V01 | NO - SMARTKEY | |
20 | PCX 150 | 2017 - 2020 | K96A-V01-V01 | SMARTKEY | |
21 | PCX 150 | 2017 - 2020 | K97A-V01-V01 | SMARTKEY | |
22 | PCX 150 | 2016 - 2017 | K35A-V01-V01 | SMARTKEY | |
23 | PCX 150 LED THAILAND | 2017 - 2020 | K36S-T31-TH01 | SMARTKEY | |
24 | VARIO/ CLICK 125 | 2016 - 2018 | K60F-T01 -TH01 | NO - SMARTKEY | |
25 | VARIO/ CLICK 125 | 2016 - 2018 | K60K-B31-INO1 | NO - SMARTKEY | |
26 | VARIO/ CLICK 125 | 2016 - 2018 | K60S-T71-TH01 | NO - SMARTKEY | |
27 | VARIO/ CLICK 125 | 2016 - 2018 | K60A-B01-INO1 | NO - SMARTKEY | |
28 | SH 125i | 2016 - 2017 | K01J-611-V01 | SMARTKEY | |
29 | SH 150i | 2016 - 2017 | KO2K-701-V01 | SMARTKEY | |
30 | VARIOI CLICK 125 | 2017 - 2021 | KOOR-B71-INO1 | NO - SMARTKEY | |
31 | PCX (KOREA) | 2017 - 2020 | K35K-K21-KO 01 | SMARTKEY | |
32 | PCX (KOREA) | 2017 - 2020 | K96A-TO1-TU 01 | SMARTKEY |
REMAP HONDA ACG KLINE (ECM SHINDENGEN)
NO | BRAND | MODELS | YEAR | ECM CODE | ID | VERSION |
1 | HONDA | AIR BLADE 125 | 2013 - 2015 | 30400-K27A-V01 | 0101411101 | FULL VERSION |
2 | 30400-K27G-V51 | 0101AB1101 | ||||
3 | LEAD 125 | 30400-K12A-901/903 | 01012F1101 | |||
4 | SH MODE | 2014 - 2015 | 30400-K29A-901/903 | 0101461101 |
REMAP YAMAHA, SUZUKI
NO | BRAND | ECM CODE | MODELS | KEY | YEAR |
1 | Suzuki | 32920 – 12K00 | Satria 150 | SmartKey | 2017 - 2020 |
2 | 32920 - 12K00 | Raider 150 | |||
3 | Yamaha | B63-H594A-11 | NVX 155 - ABS | 2017 - 2019 | |
4 | B64-H594A-01 | NVX 125 | 2017 | ||
5 | B63-H594A-30 | NVX 155-ABS | 2020 |
Remapping for ECM Honda ACG – Shindengen
- Support to tune/remap for 22 types of ECM Honda ACG (2016-2021)
- Include 300 MAP files with configuration from virgin motors to modified throttle, air filter, bigger piston, exhaust pipe, fuel injector
- Use MAP to turn OFF smart key state, change smart key into mechanical key (remove the second-factor authentication)
- Use MAP to turn OFF code error – 88 when the EVAP valve is damaged, reuse ECM no need to change into a new one, save the cost Eliminate gas shortage, engine weakness, reduce fuel consumption
- Help the bike can accelerate fast, smooth, light, reduce engine chatter and explosion behind the exhaust
- Open the RPM limitation (rpm) up to 10500 – 12000 RPM
- Optimize engine power, optimize air-to-fuel ratio (A/F) according to each speed range, environment, terrain, and driving style
- Auto-Remap, no effect to ECM, simple, no need laptop or computer
- All of the MAP files were run in real configuration, tested HP, tried by Dyno, optimized with AFR(optimize air-to-fuel ratio A/F)
Smart key/ Keyless Honda, Yamaha, and Suzuki
- Read KEYID from the smart box when all keys lost
- Read ECMID from smart box
- Read/reset ECMID from ECM
- Erase key lost
- Erase the missing keycode
- Reflash EEPROM data of smart box
- Register new keys in all keys lost cases.
- Add key by key
- Check the synchronization between key and smart box
- Re-use the Honda “used key”
- Change ON / OFF mode switch
- Sync smart box and ECM automatically
- Replace new ECM
- Register up to 6 keys at once bike Honda
Immobilizer system PIAGGIO/VESPA
- Register the new keys in the all keys lost case.
- Reset, erase all keys of IC / ECM.
- Support register new keys.
- Support list: AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ASCII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3 / RIU1, MIU4, PGU09, PGN04 / PGS02 / PGS06 / PGT01.
LED system
- Activate the LED system
- Support checking LED system
Odometer adjustment
- Read the current mileage
- Correct odometer value of motorcycle dashboard.
- Restore the original data
- Automatic correct odometer
- All moto, motobike Honda, Yamaha, Suzuki, Kawasaki and Piaggio
Top 11 Reasons to Choose Autoshop Vietnam
- Professional manufacturer and distributor of diagnostic equipment
- Distributors nationwide and a lot of countries around the world
- The technical support team is enthusiastically consulted and guided
- Pay by PayPal, Bank Transfer or Western Union
- Best product quality
- Competitive price
- Fast delivery 3-5 days
- To be a reliable sales unit
- Distributors in Europe, Asia, America, and Africa
- One year warranty and lifelong after-sales service
- The return policy is very simple
كن الاول في المعاينة: “Autoshop SMARTTOOL2 for Motorcycle”
أرسل رسالة
اتصل بنا
Address: Sharjah - Industrial No. 5, behind Maliah Road., shop No. 8, Property of Ali Nasir Mohamed Suleiman
