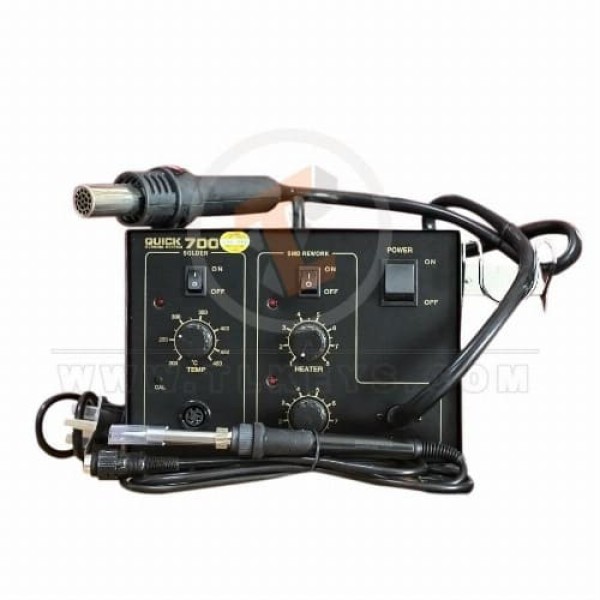

Quick 700 Desoldering and Static - Eliminate Rework System (2 IN 1)

QUICK700 2 In 1 soldering station Rework Station Smd Rework Station

QUICK700 rework station can meet different welding requirements with a 2-in-1 design and compact structure
Each part can work independently with ESD safe design and power consumption of 380W

QUICK700 Soldering Tools Details

Manufacturer: ‎ Quick
ASIN: ‎ B07NVTNZR7
Item Model Number: ‎ QUICK700
Power Source: Corded Electric
Type: Welder
Power Consumption: 270w Temperature Range: 100℃~420℃
Power consumption of soldering iron: 50w
Temperature range of soldering machine: 200℃~480℃
Size: 34*34.5*22.5cm
Weight: 6.6kg
Tip-to-Ground Potential: <2 mV
Tip-to-Ground Resistance: <2Ω

QUICK700 Specifications:

1. Original Quick SMD rapid rework station
2. 2-in-1 Rework Station, BGA Rework Station + Soldering Iron
3. Brushless fan
4. With long life air blower

What are the use cases for QUICK700 Soldering Temperature?

1. Fits most SMD, such as SOIC, CHIP, QFP, PLCC, BGA, etc.
2. It is suitable for hot shrinkage, drying, coating, mucous membrane removal, dissolving, reheating, disinfection, and so on.

Solder Rework Station features:

1. Prevent static electricity and creep to damage the PCB.
2. You do not need to touch the PCB, which can avoid moving the element and heating jam.
3. Widely adjust airflow and temperature and choose different nozzles, so that they can fit most SMD.
4. Use an inlet heating element, the type of heating element and the nozzle are the same as the international type.
5. Delayed to blow out excellent airflow when the power switch is off, which can protect the unit.
