Tango Original Universal Transponder Key Programmer Basic Device

TANGO Original Universal Transponder Key Programmer Basic Device From Scorpio LK

TANGO programmer is intended for programming transponders, that are a part of automobile immobilizing systems unlike the previous model the Gambit.
The new model from Scorpio TANGO is the two-band device that has allowed the addition of the list of supported transponders with firm Texas Instruments products (Tiris ©).
TANGO Key Programmer is the next generation of transponder programmers which is continuously developed to cover, read, and write the latest transponders used in the newest vehicle immobilizer technologies.
A new function for reading the Kilometers, VIN, and transponder type for all BMW keys has been added to the BMW software module.

Please Note after generating a new transponder with TANGO Programmer, you do not need any additional diagnostic equipment to program the generated transponder to the car.

It will start the car directly, even on the new FIAT CODE 2 system, which is also used in PSA Group vehicles.
You only have to write the new file back into the immobilizer system.
The ever-expanding list of key makers, currently totaling over 1116 (Over 580 are included with basic software)

Update 1.108 of the TANGO programmer introduces brand new functionality for work with Toyota/Lexus vehicles equipped with SmartKey Systems via OBD. The framework is implemented in TANGO Toyota+ software.
The main objective of the software is to allow the addition of smart keys in the "all keys lost" situation by creating an emulator which allows getting permission to register new keys via diagnostic equipment.

The List of supported Transponders for the Present Moment:

Additional TANGO Software Activations

Scorpio TANGO Transponder Programmer Highlights

• Cloning of Toyota / Lexus Smart keys on SLK-01, SLK-02, SLK-03/03E, SLK-04/04E, SLK-05/05E, SLK-07E emulators
• Subaru Image Generation Page1 14, 17
• TANGOPlus Subaru Smart Key (Page1 F1, F3) Systems OBD framework
• Toyota-H Immobilizer All Keys Lost solution (Gen1 MCU 11910 & Gen2 MCU 12xxx) - TANGO + Barracuda (all markets)
• Toyota-H Immobilizer All Keys Lost solution (Gen1 MCU 11910) - SLK-06 (all markets)
• Cloning of Toyota H-key [Blade](128bit) on LKP-04
• Toyota/Lexus Smart Key Systems OBD Framework
• Toyota G Immobilizers OBD Reset & Add Key (including EU type)
• Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99, 3A, 7A on TRPWS21 transponder
• Toyota/Lexus G Keys Image Generation and Cloning Page1 19,36,56,96,37,57 on LKP-02,CN5
• Toyota/Lexus/Subaru SmartKey Reset (40/80/128bit)
• FREE Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2,EH2,CN2,CN5,LKP-02
• FREE Image generator ID70 on ID4D
• Image generator ID67/68 on ID4D
• Total FREE production of TP22, TP23, TP24, TP25
• Free write Component Security 7 bytes Tool (Megamos48)
• In-depth Manual and Technical Support Provided
• Searching of the 7th byte by existing car's key(Megamos48)

TANGO Key Programmer Features

• TANGO auto key programmer has over 1142 Key Makers, 793 included with essential TANGO software
• Toyota Smart key all keys lost programming Via OBD II Using SLK Emulators (extra adapters & software’s are required) TANGO SLK emulator set
• Toyota-H Immobilizer All Keys Lost solution (all markets) with the help of barracuda key programmer
• TANGO cloning Toyota H-key [Blade](128bit) on LKP-04
• Toyota dump editor to pair Smart key ECU with ID CODE ECU (Payable software)
• Toyota G immobilizers OBD Reset & Add Key (including EU type) TANGO G software is required & TANGO G cable
• Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99, 3A, 7A on TRPWS21 transponder chip
• Free Transponder producing & cloning for many models
• Supporting key & smart key programming for Vehicles, Trucks, and motorbikes
• Toyota/Lexus G Keys Image Generation and Cloning Page1 19,36,56,96,37,57 on LKP-02 transponder chip
• Toyota, Lexus & Subaru Smart key reset (Payable software)
• Full FREE production of Seat TP22 transponder chip, Volkswagen TP23 transponder chip, Skoda TP24 transponder chip, Audi TP25 transponder chip
• Free write VAG Component Security 7 bytes Tool (Megamos 48)
• TANGO unlocks used remotes for some types of Chrysler remote key unlocking, Honda remote key unlocking, Suzuki transponder key unlocking, Kia transponder key unlocking, Hyundai transponder key unlocking & VAZ remote key unlocking
• TANGO reading the Kilometers, VIN, and transponder type for many key types
• Free Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2 transponder chip, EH2 transponder chip, CN2, CN5 transponder chip, LKP-02 transponder chip
• TANGO-free Image generator ID70 on ID4D
• TANGO unlock Audi 8E Megamos chip via Audi EZS Dump (Payable software)
• TANGO searching of the VAG 7th byte by existing car's key (Megamos 48)
• TANGO Toyota Techstream passcode calculation (Payable software)
• TANGO AD100 out-in code 8-digit calculation
• Free TANGO software updates

System Requirements:

• TANGO programmer
• J2534 PassThru compliant OBD cable
• SLK emulator corresponding to system type
• Toyota maker software activation
• SLK-0x software activation
• Toyota TIS Techstream
• Windows XP/7/8/10 PC/Laptop

The product is in the working out stages, therefore the list of the supported transponders will be developed later.
For the present moment, TANGO has the following built-in makers and functions

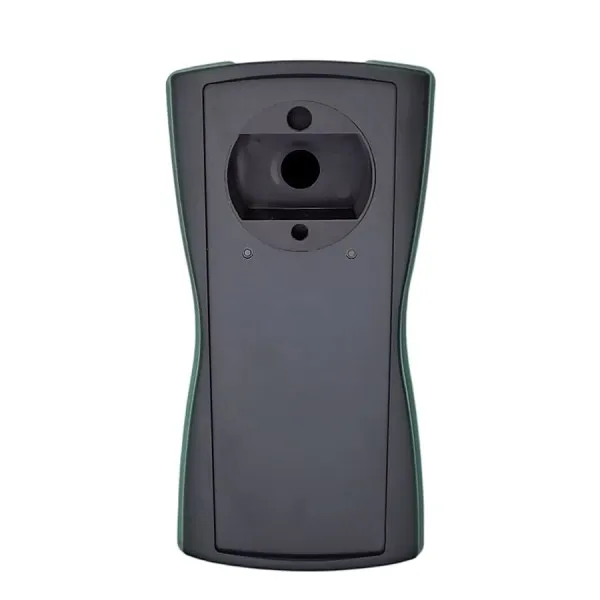

The device has an ergonomic design with high mechanical characteristics of the IP65 class according to the DIN EN 60529 standard.

The device has the following dimensions:
Length 160 mm
Width 80 mm
Height 50 / 30 mm

The device enclosure is made of 3mm ABS plastics with a rubber shock-proof damping seal which simultaneously is a decor element.
The seal also prevents the device from sliding on a work table surface.
Also as well as the Gambit, the device derives the power from USB and does not demand a connection of an external power source.
The difference is the use of drivers of other types that allow for avoiding conflicts with other devices working through virtual ports USB2.0/3.0
Unlike the Gambit, the device has a wide slot for keys of any size and two small holes of various depths for transponders of any size.
LED indication unlike Gambit is taken out on the upper cover of the case which is a solution more convenient in using.
The program interface has a modern intuitive design favorably differing from the interface of Gambit.
Meeting modern requirements, TANGO supports OS Vista which was not realized in Gambit.

Supported versions of Windows:
Win 98
XP
Vista
Win 7
Win 8/8.1
Win 10

Scorpio LK TANGO Auto Key Programmer FAQs:

Question: The TANGO software shows "Hardware not found" after installing the TANGO software and driver, how to solve it?
Answer: You must install the latest version of TANGO software & Driver which can be found in our download section

Question: How to update TANGO key programmer
Answer: The TANGO Update is free of charge, once you open the software it will ask you to update if a new version is available

Question: Is there a token limitation for TANGO? Is there any extra cost, such as the TANGO update cost?
Answer: There is no token limitation for TANGO. TANGO software updates are online for free.
But if you need TANGO's special function, or want to work it on a special car model, you need to buy an extra license to open the authorization.

Question: Is this TANGO key programmer original or a Chinese TANGO key programmer?
Answer: This is the OEM TANGO key programmer manufactured by Scorpio-LK

Question: Can I install the TANGO key programmer on windows 10
Answer: TANGO programmer software can be installed in windows 10, 8, 8.1, Vista, 7, XP, 98

Question: how to install the TANGO key programmer & TANGO key programmer driver
Answer: Download the software files on your desktop from our download section
Double-click on the TANGO software installation file (TANGO.exe).
Select TANGO language and click Ok.> Click Next.
It's recommended to leave the TANGO installation path as it is and click Next.
You can change the name of the shortcut in your start menu. Click Next.
Check the checkbox Create a desktop icon for easier access and click Next.
Wait for the TANGO installation. Deselect Launch TANGO and click Finish.
Go to the folder, where you just installed your TANGO Software.
(Default : My Computer > Local Disc(C:) > Program Files (x86) > TANGO Scorpio-LK).
Open the TANGO Driver folder. Choose your operating system type and open the folder.
Right-click on the TANGO FTDI-bus and choose Install.
Click Ok to finish the TANGO driver installation.
Go to your desktop and right-click on the TANGO software's shortcut.
Choose Run as administrator. When the TANGO software starts click Update on the On-Line Update window to update your TANGO Software.
Click Ok and wait for the TANGO software update to be completed. Your TANGO programmer is now ready for work!

Question: Does the TANGO key programmer reset the 128-bit smart key
Answer: The Original TANGO Programmer Support Toyota, Lexus & Subaru smart key unlocking with 40bit, 80bit & 128bit
