Autel MaxiIM IM508S Key Programming Service Tool Device

Autel MaxiIM IM508S Key Programming Tool with Advanced Features for Automotive IMMO Systems

The Autel MaxiIM IM508S is an advanced and comprehensive automotive diagnostic tool designed to provide a wide range of functionalities for professionals in the automotive industry. This device is part of the renowned MaxiIM series by Autel, known for its high-quality performance and reliability. The IM508S is equipped with powerful diagnostic capabilities, making it an essential tool for key programming, ECU coding, and various other automotive maintenance tasks.

Subscription and IP Restriction

Autel Car Diagnostic Tool

The Autel car diagnostic tool series is renowned for its innovation and reliability in the automotive industry. Autel offers a wide range of diagnostic tools designed to cater to the needs of both professional technicians and car enthusiasts. Among these tools, the Autel MaxiIM IM508S stands out as a top-tier device, providing advanced diagnostic capabilities and key programming functions.

Autel's diagnostic tools are designed to offer comprehensive vehicle coverage, supporting a vast array of makes and models. These tools are equipped with powerful software that enables users to perform in-depth diagnostics, including reading and clearing DTCs, performing live data streaming, and conducting various special functions. The user-friendly interface and intuitive design of Autel tools ensure that users can quickly and easily navigate through the diagnostic process.

One of the key features of Autel car diagnostic tools is their ability to perform key programming and key learning. The Autel MaxiIM IM508S, for instance, is specifically designed to handle immobilizer system diagnostics and key programming tasks, making it an essential tool for locksmiths and automotive technicians. The device supports a wide range of key types and immobilizer systems, ensuring compatibility with numerous vehicles.

In addition to key programming, Autel diagnostic tools offer a variety of special functions that aid in vehicle maintenance and repair. These functions include oil reset, EPB reset, SAS calibration, BMS reset, and more. These features help technicians perform routine maintenance tasks efficiently, reducing the time and effort required for each service.

Autel's commitment to quality and innovation is evident in the design and functionality of their diagnostic tools. The Autel MaxiIM IM508S exemplifies this commitment, offering a powerful and reliable solution for automotive diagnostics and key programming. Whether you are a professional technician or a car enthusiast, Autel's diagnostic tools provide the performance and reliability needed to keep vehicles running smoothly.

Autel MaxiIM IM508S Function List

• All Systems Diagnostics: Comprehensive diagnostic capabilities across all vehicle systems.
• AutoVIN / AutoScan: Automatically identifies vehicles and performs quick system health scans.
• Read / Erase Codes: Retrieves and clears diagnostic trouble codes (DTCs) from various vehicle modules.
• View, Record, Playback Live Data: Displays live sensor data, records data for future analysis, and allows playback of recorded data streams.
• View Freeze Frame Data: Shows vehicle operating conditions captured at the time of an emission-related fault.
• Shop and Data Manager Applications: Manages workshop information and data related to vehicle diagnostics and key programming.
• Key Read / Write: Reads and writes transponder information to facilitate key programming.
• EEPROM / MCU Read / Write: Reads and writes EEPROM and MCU for advanced key programming and module adaptation.
• Read PIN / CS (All Key Lost): Retrieves PIN / CS information when all keys are lost for key generation.
• Key Generation: Generates new keys for vehicles.
• Key Learning: Programs new keys and learns keys to the vehicle’s immobilizer system.
• Remote Learning: Programs remote control transmitters.
• Backup / Restore IMMO Data: Stores and retrieves IMMO data for secure key programming procedures.
• IMMO ECU Reset / Adaptation: Resets or adapts the immobilizer ECU to a new key.
• IMMO ECU Refresh / Coding: Refreshes or codes the immobilizer ECU.
• BMW FEM / BDC Key Learning and ECU Adaptation: Programs keys and adapts ECU for BMW FEM / BDC systems.
• VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More: Supports advanced key programming functions for VW and Audi MQB platforms and more.

XP400 Programmer

The XP400 Key Programmer is the perfect companion to the IM508S, offering advanced IMMO anti-theft functions:

• Key Generation: Generates new keys for vehicles.
• Key Programming, Add Key, All Key Lost: Programs keys and handles scenarios with lost keys.
• Remote Learning: Programs remote control transmitters.
• EEPROM Read & Write: Reads and writes EEPROM data for key programming.
• Transponder Read & Write: Reads and writes transponder information for key programming.
• IMMO ECU Reset & Adaptation: Resets or adapts the immobilizer ECU to a new key.
• IMMO ECU Refresh & Coding: Refreshes or codes the immobilizer ECU.

Bi-Directional Control / Active Test

When faced with issues like malfunctioning wipers or other actuators, the IM508S performs real active tests. This feature sends commands to the vehicle's ECU to activate actuators such as ABS, windows, doors, solenoids, valves, wipers, and headlights. It helps diagnose faulty parts quickly and accurately. Note: Compatibility varies, please check before use.

Note: Functions are not universal. Please provide VIN (17 digits), car make, model, and year for compatibility verification before purchase.

FCA "Auto Auth" Access

Supports FCA " Auto Auth" gateway for 2018 and newer FCA cars (Chrysler, Dodge, Jeep, etc.) in the US, Canada, and Mexico.

Note: For some Renault and FCA vehicles, additional adapters like the 12+8 adapter may be required during IMMO key programming, as " auto auth" alone may not suffice.

Cloud Report Management

This highly anticipated feature allows you to upload diagnostic reports to Autel Cloud. Share reports with customers effortlessly via QR code, email, or text message. Customers can access and view reports anytime, simplifying data sharing, reducing memory burden, and improving workflow efficiency.

OE-level Diagnostic Capability, Same as MK808

The Autel IM508S offers OE-level diagnostics and service functions akin to the Autel MX808, MaxiCOM MK808, and MK808BT. It supports quick diagnosis of over 80 US, EU, and Asian car models:

• ECU Information: Retrieves detailed ECU information.
• Read Codes: Displays and clears DTC records.
• Live Data: Retrieves and displays real-time data from various vehicle systems.
• Active Test: Performs specific subsystem and component tests.
• Special Function: Performs component adaptations and other specialized functions.

Autel MaxiIM IM508S Features

The Autel MaxiIM IM508S is equipped with a robust set of features designed to enhance the diagnostic and programming capabilities of automotive professionals. This section explores the key features that make the IM508S an indispensable tool in vehicle diagnostics and key programming.

Key Features of Autel MaxiIM IM508S:

• Comprehensive Vehicle Coverage: The IM508S offers extensive vehicle coverage, supporting key programming and diagnostic functions for a wide range of vehicle makes and models. Its compatibility spans major automotive brands, ensuring versatility in automotive workshops.
• Advanced Key Programming: With advanced key programming capabilities, the IM508S can generate and program keys for various vehicle types, including transponder keys, proximity keys, and smart keys. This feature is essential for locksmiths and automotive technicians who frequently handle key replacement and programming tasks.
• All System Diagnostics: The IM508S enables comprehensive diagnostics by allowing users to access and diagnose all available systems within the vehicle. This includes engine, transmission, ABS, SRS (airbag), and more. Technicians can read and clear diagnostic trouble codes (DTCs), view live data streams and perform active tests to pinpoint vehicle issues accurately.
• Key Learning: The tool supports key learning functions, facilitating the synchronization of newly programmed keys with the vehicle's immobilizer system. This ensures that new keys can effectively start and operate the vehicle, maintaining security and functionality.
• Special Functions: In addition to standard diagnostics, the IM508S offers a range of special functions designed to facilitate maintenance and service procedures. These functions include oil reset, EPB reset (Electronic Parking Brake), SAS (Steering Angle Sensor) calibration, BMS (Battery Management System) reset, and TPMS (Tire Pressure Monitoring System) reset.
• User-Friendly Interface: Featuring a large touchscreen display and intuitive navigation menus, the IM508S ensures ease of use for technicians of all skill levels. The clear graphical interface allows for quick access to functions and efficient operation during diagnostic sessions.
• Wireless Connectivity: The IM508S supports wireless connectivity via Wi-Fi, enabling seamless software updates and data transfer. This feature ensures that the tool remains up-to-date with the latest vehicle models and software enhancements, enhancing its longevity and performance.
• Data Management: The tool includes built-in data management features, allowing users to store and review diagnostic reports, vehicle history, and customer information. This helps streamline workflow and maintain organized records of vehicle maintenance and repairs.

Can Autel MaxiIM IM508S Program My Car Key?

The Autel MaxiIM IM508S is renowned for its advanced capabilities in automotive key programming, making it a go-to tool for locksmiths and automotive technicians alike. Here’s a detailed look at how the IM508S can program your car key effectively.

Key Programming Capabilities of Autel MaxiIM IM508S:

• Versatile Key Programming: The IM508S supports a wide range of key types, including transponder keys, proximity keys, and smart keys. This versatility ensures compatibility with various vehicle makes and models, allowing technicians to program keys accurately and efficiently.
• Key Generation: Apart from programming existing keys, the IM508S can generate new keys for vehicles that require replacement or additional keys. This feature is particularly useful in situations where keys are lost or damaged, enabling technicians to create functional replacements on-site.
• Immobilizer System Integration: The tool integrates seamlessly with the vehicle’s immobilizer system, ensuring that newly programmed keys are synchronized and recognized by the vehicle. This synchronization process is crucial for enabling the new keys to start and operate the vehicle securely.
• Simple Key Learning Process: The IM508S facilitates a straightforward key learning process, allowing technicians to add newly programmed keys to the vehicle’s immobilizer system with ease. This ensures minimal downtime and quick resolution for customers needing key replacement services.
• Support for Special Functions: In addition to key programming, the IM508S offers a range of special functions that contribute to overall vehicle maintenance and service. These functions include oil reset, EPB reset (Electronic Parking Brake), SAS (Steering Angle Sensor) calibration, BMS (Battery Management System) reset, and TPMS (Tire Pressure Monitoring System) reset, enhancing its utility in automotive workshops.
• Diagnostic Capabilities: Beyond key programming, the IM508S excels in comprehensive vehicle diagnostics, enabling technicians to diagnose and troubleshoot various vehicle systems. This ensures that any underlying issues affecting key functionality can be identified and addressed promptly.

Autel MaxiIM IM508S Key Programming Capabilities

The Autel MaxiIM IM508S is renowned for its robust key programming capabilities, making it an indispensable tool for automotive locksmiths and technicians. Here&rsquo's a comprehensive overview of its key programming features and functionalities:

Comprehensive Key Programming Features:

• Wide Vehicle Coverage: The IM508S supports key programming for a vast array of vehicle makes and models, ensuring compatibility across different manufacturers. This extensive coverage allows technicians to handle various customer vehicles efficiently.
• Transponder Key Programming: With the ability to program transponder keys, the IM508S enables technicians to synchronize new keys with the vehicle’s immobilizer system. This ensures that newly programmed keys are recognized and functional for starting the vehicle.
• Proximity Key Programming: For vehicles equipped with proximity keys (smart keys), the IM508S offers seamless programming capabilities. It allows technicians to add, delete, and program proximity keys, providing customers with reliable key replacement services.
• Key Generation and Replacement: In situations where keys are lost, damaged, or need replacement, the IM508S supports key generation. This feature enables technicians to create new keys from scratch, ensuring that customers have fully functional replacements without the need for dealership services.
• Key Learning and Synchronization: The IM508S facilitates a straightforward key learning process, allowing technicians to add newly programmed keys to the vehicle’s immobilizer system. This synchronization process ensures that the vehicle recognizes and accepts the newly programmed keys for secure operation.
• Advanced Diagnostic Integration: Beyond key programming, the IM508S integrates advanced diagnostic functionalities. This includes the ability to diagnose and troubleshoot various vehicle systems, ensuring that any underlying issues affecting key functionality can be identified and resolved promptly.
• User-Friendly Interface: Featuring a user-friendly interface and intuitive navigation, the IM508S simplifies the key programming process. Technicians can navigate through menus, select vehicle makes and models, and perform key programming tasks with ease, reducing service time and enhancing overall efficiency.

IM508S Specifications

Operating System	Android 11.0
Processor	Cortex-A55 processor (1.8 GHz)
Memory	4G & 64G
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 64GB)
Sensors	Ambient light sensor for brightness auto changing
Audio Input / Output	Input: N/A Output: buzzer
Power and Battery	3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Net Weight	788 g (2.42 lb.)

Autel MaxiIM IM508S Key Programming Tool with Advanced Features for Automotive IMMO Systems

The Autel MaxiIM IM508S stands at the forefront of automotive diagnostics and key programming tools, renowned for its exceptional performance and comprehensive capabilities. Engineered as an upgrade from its predecessors, the IM508S combines cutting-edge hardware and software to deliver unparalleled functionality.

Key Features and Benefits:

• Enhanced Performance: Powered by an advanced Cortex-A55 processor and equipped with 4GB RAM + 64GB ROM, the IM508S ensures swift operation and ample storage capacity for seamless data handling.
• Comprehensive Vehicle Coverage: Offering extensive compatibility across various vehicle makes and models, the IM508S supports key programming, ECU coding, and full-system diagnostics, making it indispensable for automotive professionals.
• Advanced Key Programming: Capable of programming transponder keys, proximity keys, and smart keys, the IM508S facilitates key generation and programming with precision and efficiency.
• Immobilizer System Integration: Seamlessly integrates with vehicle immobilizer systems, allowing technicians to synchronize newly programmed keys effortlessly for secure vehicle operation.
• Special Functions: Includes essential maintenance services such as oil reset, EPB reset, SAS calibration, BMS reset, and more, enabling technicians to perform routine service procedures with ease.
• User-Friendly Interface: Features a large 7-inch LCD capacitive touchscreen and intuitive navigation menus, ensuring straightforward operation and enhanced user experience.
• Wireless Connectivity: Supports dual-band Wi-Fi (5G and 2.4GHz) for efficient software updates and data sharing via Autel Cloud Report Management, enhancing workflow efficiency.
• Diagnostic Capabilities: Performs full-system diagnostics, reads and clears DTCs, and provides real-time data streaming for comprehensive vehicle health analysis.

Why Choose Autel MaxiIM IM508S?

The IM508S not only simplifies key programming and diagnostics but also enhances workshop efficiency with its robust performance and user-friendly design. Whether you' re a seasoned technician or a locksmith, the IM508S offers the tools needed to tackle complex automotive tasks with confidence.

Comparison between Autel MaxiIM IM508 and IM508S

Features	IM508	IM508S
Processor	Quad core：4x 1.6GHz(A9)	Quad core：4x 1.8GHz(A55)
Operating System	Android 4.4.4	Android 11
Touchscreen	7-inch	7-inch
Resolution	1024x600	1024x600
Memory	1G+32GB	4G+64GB
SD Card	SD Card (Support up to 32GB)	SD Card (Support up to 64GB)
Rechargeable Li-ion Battery	5000mAh	5000mAh
Internet Updatable	Wi-Fi	Wi-Fi
Camera	NO	NO
Connection	OBD Cable	OBD Cable
Programmer	XP400	XP400
Weight	0.78 kg	0.78 kg
Remote Expert	NO	NO
Device/Report Management	Yes	Yes
Programmer Function	Note: All functions are covered most extensively when paired with XP400 PRO and its accessories	Note: All functions are covered most extensively when paired with XP400 PRO and its accessories
Reading/Writing EEPROM	Yes	Yes
Reading/Writing MCU	Yes	Yes
Reading/Writing Engine ECU	Yes	Yes
Reading/Writing IMMO ECU	Yes	Yes
Universal Key Information Detection	Yes	Yes
Write key to ECU by programmer	Yes	Yes
Key Unlocking	Yes	Yes
Frequency Detection	Yes	Yes
Keytool Functions	Universal key generation	Universal key generation
Chip Simulation (Need APB112)	Yes	Yes
Diagnostic Functions
Auto VIN	Yes	Yes
Reading/ Erasing codes	Yes	Yes
Read Live Data	Yes	Yes
Read Freeze Data	Yes	Yes
Read ECU information	Yes	Yes
Active Test	Yes	Yes
Service Function	Yes（40+ service features）	Yes（40+ service features）
Special Function	Yes	Yes
Online Coding	No	No
Offline Coding	No	No
Hidden Function	No	No
Guided Function	No	No
Offline Programming	No	No
Cloud Service	Report Management	Report Management
Other	Remote Desk CANFD（Adapters required）	Remote Desk CANFD（Adapters required）

Specific Functions of Autel MaxiIM IM508S

The Autel MaxiIM IM508S excels not only in key programming and diagnostics but also in offering specific functions that enhance its utility for automotive professionals:

Advanced Diagnostics and Service Functions

• IM508S Oil Reset: One of the standout features of the IM508S is its capability to perform oil reset procedures. This function allows technicians to reset the oil change interval indicator on supported vehicles, ensuring accurate maintenance scheduling and optimal engine performance.
• IM508S EPB (Electronic Parking Brake) Reset: The IM508S supports electronic parking brake reset, enabling technicians to retract the brake calipers for brake pad replacement or service. This function is crucial for maintaining the braking system's functionality and safety.
• IM508S SAS (Steering Angle Sensor) Calibration: Steering angle sensor calibration is another essential service function offered by the IM508S. It ensures accurate steering response and stability control system operation by resetting the sensor to its correct position after maintenance or repairs.
• IM508S DPF (Diesel Particulate Filter) Regeneration: For diesel vehicles, the IM508S provides DPF regeneration capabilities. This function helps clean and regenerate the diesel particulate filter, optimizing exhaust system performance and reducing emissions.

Versatility and Ease of Use

• User-Friendly Interface: The IM508S features an intuitive interface that simplifies navigation and operation. Technicians can access specific functions like oil reset, EPB reset, SAS calibration, and DPF regeneration with ease, enhancing workflow efficiency.
• Multi-Language Support: The device supports multiple languages, catering to global markets and ensuring that technicians can operate it comfortably in their preferred language.

Smart Mode + Expert Mode

The IM508S offers both Smart Mode and Expert Mode for performing IMMO-related functions, including Key Learning, Remote Control Learning, Remote Control Add, and more:

• Smart Mode: Allows car owners to perform automated key learning with guided instructions.
• Expert Mode: Provides professionals with customizable options for each module to select the best solutions.

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. It retrieves vehicle IMMO information and executes IMMO functions such as Key Learning, Remote Control Learning, and Remote Control Add.

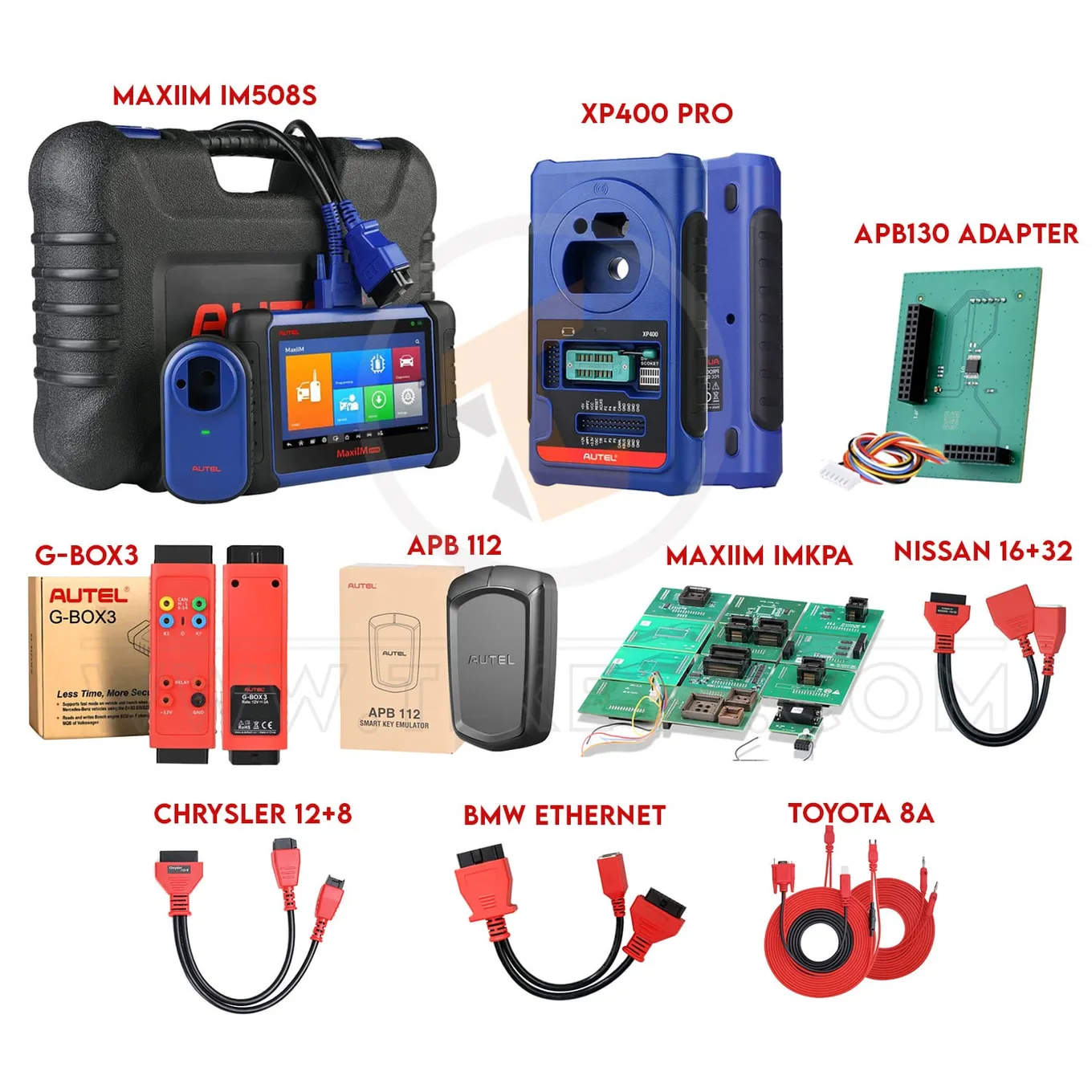

Other Features:

• Use with Autel G-BOX3: Enables key programming for Mercedes-Benz DAS3 CAN EIS/EXS (All Keys Lost), All Keys Lost Password Calculations, and DME/DDE ISN Reading & Writing in Boot Mode or Bench Method for BMW. Also supports reading and writing Bosch engine ECU on F chassis BMW and MQB Volkswagen.
• Use with Autel APB112: Collects data from the ignition coil, identifies ignition coil issues, and handles 46/4D key chip data collection and simulation. Specifically supports Toyota/Lexus smart key programming for All Keys Lost scenarios.
• Use with Autel IMKPA: Key Programming Adapter Kit compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters enabling Read/Write/Erase functions for Mercedes Benz ESL_W209/W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning, and Volkswagen/AUDI/BMW/Benz Key Unlock.

IM508S MaxiIM Software:

• Main Features:
  • Auto-select car
  • Guiding function support
  • IMMO Status scanning
• IMMO Functions: Comprehensive IMMO capabilities
• Diagnostics:
  • Basic diagnostic functions
  • Auto VIN support
  • Read/Clear Codes
  • Live Data
  • Freeze Frame
  • ECU Information retrieval
• Keytool Function:
  • Key generation support
  • Chip simulation via APB112
• Service Functions: Includes 36 service functions
• Optional Features:
  • Videoscope support (via MV105/108)
  • Online Coding support (partial, via MV105/108)
  • Coding support (partial, via MV105/108)
  • Hidden Function Renewal (via MV105/108)
  • Guilding Function (via MV105/108)
  • Online Programming (via MV105/108)
  • Scan VIN/License (via MV105/108)
  • Protocol support (via MV105/108)

Autel MaxiIM IM508S Recent Updates

BMW Software

• All keys lost & add key by OBD II for BDC module equipped BMW F-series vehicles.

Toyota V1.80:

1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including Sienna HV, Harrier HV, Tundra HV, and bZ4X.
2. Adds IMMO functions for models as of 2023 including Alphard/Vellfire, Highlander, RAV4, and Corolla.

Lexus V1.80:

1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including NX series and RX series.
2. Adds IMMO functions for models as of 2023 including IS 300, IS 350, LC 500, LS 500, RC 300, RC 350, and ES 350.

VW V1.90:

1. Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Arteon (2017-2021), Golf (2013-2021), Passat (2015-2021), Polo (2015-2021), Tiguan (2018-2021), Touran (2016-2022), Jetta (2018-2021), and T-Roc (2018-2021).

Audi V1.90:

1. Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as A1 (2019-2021), A3 (2021-2021), Q2 (2017-2021), and Q3 (2019-2021).

Seat V1.90:

1. Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Arona (2018-2021), Ateca (2017-2021), Ibiza (2018-2021), Leon (2013-2021), Tarraco (2019-2021), and Toledo (2013-2019).

Skoda V1.90:

1. Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Octavia (2013-2021), Fabia (2015-2021), Superb (2015-2021), Kodiaq (2017-2021), Kamiq (2020-2021), and Rapid (2013-2021).
