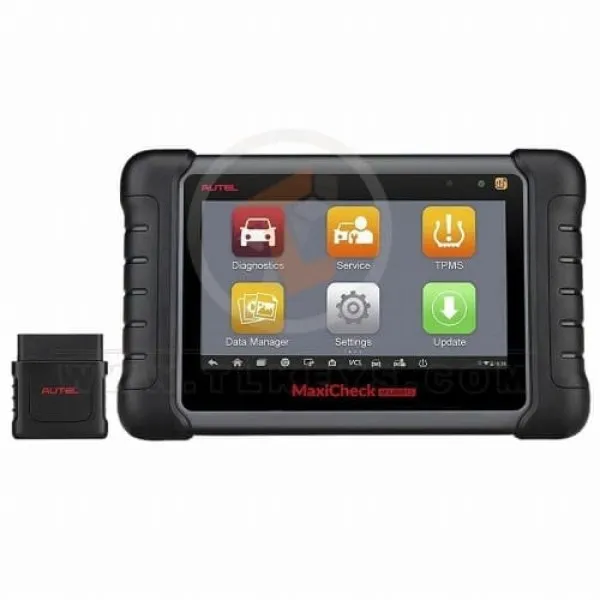

Autel MaxiCheck MX808TS OBD2 Diagnostic Scanner Tool
Autel MaxiCheck MaxiTPMS TS608C Upgraded Diagnostic Scan Tool MK808BT/MK808/MX808 with Complete TPMS Functions Full Systems EPB/BMS/SAS/DPF/Oil Reset
- SKU: TL32319
-
Category:
Key Programming Diagnostics Tools
- MANUFACTURER: Autel
Attributes
| weight | 1 KG |
|---|
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCheck MX808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) and IMMO. In addition to OBD II diagnostics and special service, MX808TS enables you to carry out complete TPMS functions, including TPMS health check, sensor activation & programming and TPMS relearn.
Description
Advanced TPMS diagnostics for complete TPMS health check
Activate 98% of all known TPMS sensors
Program AUTEL MX-Sensors
Comprehensive OBD relearn coverage
Onscreen relearn procedure
Read/clear codes for all available systems.
Auto VIN technology can automatically identify the vehicle’s make, model and year
information in no time.
Reset Steering Angle Sensor (SAS)
Reset service mileage and service intervals
Relearn parking brake pad after replacement
Support forced DPF regeneration and adjusting injectors
Support battery registration and reset
Additional information
| Recommended Use |
Indoor |
|---|---|
| Operating System |
Android™ 4.4.2, KitKat |
| Processor |
Cortex-A9 processor (1.5 GHz) |
| Memory |
32GB |
| Display |
7-inch LCD capacitive touchscreen with 1024 x 600 resolution |
| Connectivity |
Mini USB 2.0 • USB 2.0 • Wi-Fi • HDMI Type A • Micro SD card (supports up to 32GB) |
| Sensors |
Light sensor for brightness auto changing |
| Audio input/output |
Input: N/A • Output: buzzer |
| Power and Battery |
3.7 V/5000 mAh lithium-polymer battery • Charges via 5 VDC power supply |
| Tested Battery Life |
Around 7 hours of continuous use |
| Battery Charging Input |
5 V/1.5 A |
| Power Consumption |
600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. |
-10 to 60°C(14 to 140°F) |
| Storage Temp. |
-20 to 70°C (-4 to 158°F) |
| Operating Humidity |
5% – 95% non-condensing |
| Dimensions (W x H x D) |
270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Net Weight |
885 g (2.31 lb.) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE- |
