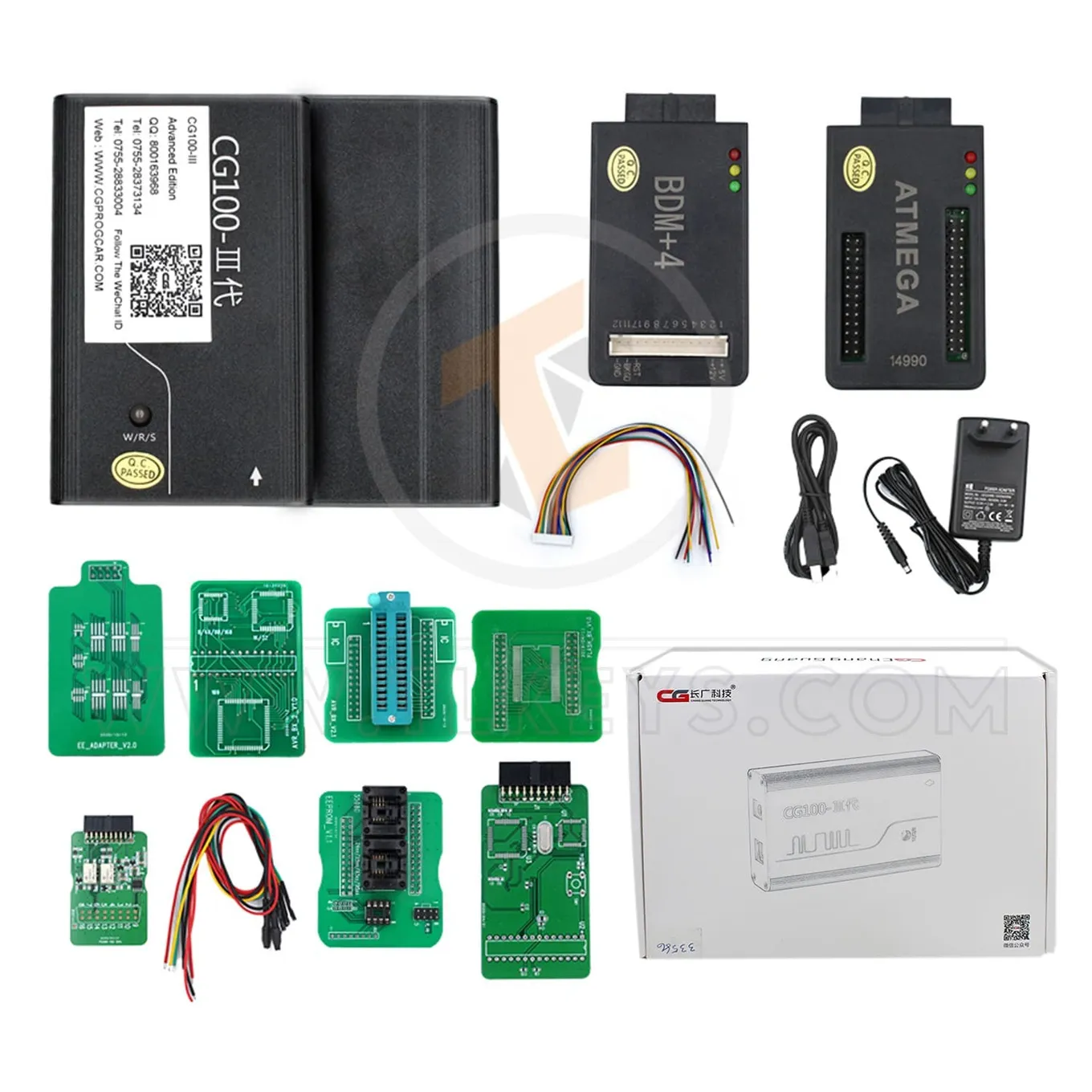

CGDI CG100 Device Full Version Read / Write / Repair - Airbag Restore

CGDI CG100: Comprehensive Automotive Diagnostic Tool

The CGDI CG100 is a sophisticated automotive diagnostic tool designed for professional use in automotive workshops. It excels in functions such as airbag reset, key programming, ECU repair, etc. This tool is engineered to tackle a wide range of electronic system issues, including those involving Tricore MCUs and various microcontrollers.

The Importance of Electronic System Repair in Vehicles

Modern vehicles are equipped with intricate electronic systems that manage crucial functions like engine operation, airbag deployment, and security features. These systems are susceptible to faults and require specialized tools for effective diagnosis and repair. The CGDI CG100 is tailored to meet these needs, enabling technicians to efficiently address issues and maintain optimal vehicle performance.

Common Problems Faced by Car Mechanics

Automotive technicians frequently encounter issues such as airbag malfunctions, key programming difficulties, ECU faults, and general vehicle diagnostics. Without the appropriate tools, these problems can be challenging and time-consuming to resolve. The CGDI CG100 simplifies these tasks, making it an essential tool for any professional automotive service.

Features of the CGDI CG100

• Airbag Repair: Specially designed to reset and repair airbag systems, including reading and writing EEPROM for Tricore MCUs over CAN-bus.
• Key Programming: Supports key programming for various brands including BMW, Volkswagen, Land Rover, and Bentley. The full-featured version includes an adapter for programming Land Rover and BMW keys.
• Vehicle Fault Diagnosis: Provides comprehensive diagnostic functions for various vehicle electronic systems, with built-in calculators for ISN, VIN, and CRC EEPROM programming.
• ECU Repair Tool: Capable of reading and writing data to engine control units (ECUs), supporting repair and replacement for BMW, Volkswagen, and Bentley engines. Also supports domestic MT80 and MT60 engine computers.
• EEPROM Read and Write: Handles EEPROM tasks with support for a wide range of chips including Renesas, Infineon XC236x, ST, MOTOROLA, ATMEGA, NEC, and AM28BL802CB.
• Odometer Adjustment: Allows adjustment of mileage for various vehicle models.
• Advanced Microcontroller Support: Supports a broad range of microcontrollers including Renesas SRS, Infineon XC236x, and others.

Unique Features of CGDI CG100 PROG III

The CGDI CG100 PROG III version offers enhanced features and functions:

• Complete Renesas SRS Support: Includes all functions of Renesas SRS systems.
• EEPROM Reading and Writing: Supports non-secure BMW DDME ECU microcontrollers and includes built-in calculators for ISN, VIN, and CRC EEPROM programming.
• CAS Key Programming: Supports programming of CAS3, CAS3+, CAS4, and CAS4+ keys.
• CAS Data Splitting: Ability to split the quality of CAS data for enhanced flexibility.
• CG100 ATMEGA Adapter: Comes with a CG100 ATMEGA Adapter for airbag restoration devices, supporting 35080 EEPROM and 8-pin chip reading and writing.

ATM Adapter Compatibility

The ATM Adapter included with the CGDI CG100 PROG III supports the following chips:

• 35080 Series: M35080DQ080, M35080DQ160, M35080 3/6, M35080 V6 / VP (5 seconds to adjust mileage: directly read and write)
• ATMEGA Parallel Series: MEGA8L, MEGA48, MEGA88 (can erase the second-hand ATMEGA8L for re-use), MEGA16, MEGA32, MEGA169
• 24 Series: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128 (read and write)
• 93 Series: 93C46, 93C56, 93C57, 93C66, 93C76, 93C86 (read and write)
• 25 Series: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256 (read and write)
• 95 Series: 95010, 95020, 95040, 95080, 95160, 95320, 95640, 95128, 95256, 95512 (read and write)

Support for Additional CPUs

The CGDI CG100 also supports a range of CPUs and FLASH memory, making it a versatile tool for various automotive diagnostics and repairs:

• 9S08GL16 CPU Parallel FLASH: Includes support for AMD AM29BL802D, which can erase the FAW REIZ MT34 immobilizer.
• Renesas CPUs: R5F61797, RF61725, R5F61723, R5F61721 (used in Toyota, Honda, and Subaru).
• Infineon XC Series: XC2060N-40F, XC2060M-104F, XC2336B-24F, XC2336B-40F, XC2361A72F, and others (used in Nissan, Suzuki, Hyundai, Ford, Mazda, Land Rover, Jaguar, GM; 20 seconds of reading and writing speed is exclusive worldwide).
• Freescale: MPC5604P(0M26V)(1M36W) (used in Honda).
• ST SPC560: (used in Volkswagen).
• CPU ATMEGA Series: ATMEGA169, ATMEGA32, ATMEGA16, ATMEGA8, ATMEGA88, ATMEGA48 (supports kilometer tuning).

User-Friendly Interface

One of the key benefits of the CGDI CG100 is its intuitive user interface, which simplifies the execution of complex diagnostic and repair tasks. It supports various Windows operating systems, including XP, WIN7, and WIN8 (both 32-bit and 64-bit), ensuring compatibility with most workshop computers.

How to Use the CGDI CG100

Using the CGDI CG100 is straightforward. Follow these basic steps to perform common functions:

• Airbag Reset: Connect the device to the vehicle's OBDII port, select the airbag module, and follow the on-screen instructions to reset.
• Key Programming: Insert the new key into the ignition, connect the CGDI CG100, and choose the key programming function.
• ECU Repair: Read data from the faulty ECU, write corrected data, and reinstall the ECU into the vehicle.

The device also includes detailed manuals and online support for more advanced procedures.

Benefits of Using the CGDI CG100

• Increased Efficiency: Streamlines various repair and diagnostic processes, saving valuable time and effort.
• Improved Service Quality: Enhances the accuracy of diagnostics and repairs, resulting in better service quality for customers.
• High Return on Investment: Offers a wide range of functionalities, making it a valuable investment for any automotive workshop.

The following chips are added for the programmer:

CG100 PROG III Update Policy

The CGDI CG100 PROG III includes a free online update for one year from the date of purchase. After this period, updates will be a paid feature. If you choose not to pay for the updates, the device will continue to function with the old version. It is recommended to update the device to the latest version before performing any programming to ensure all features are current.

Conclusion

The CGDI CG100 is an essential tool for any professional automotive workshop. Its extensive features, user-friendly design, and reliable performance make it a critical asset for diagnosing and repairing vehicle electronic systems. Investing in the CGDI CG100 can significantly enhance workshop efficiency and service quality, making it a worthwhile addition to any mechanic's toolkit.
