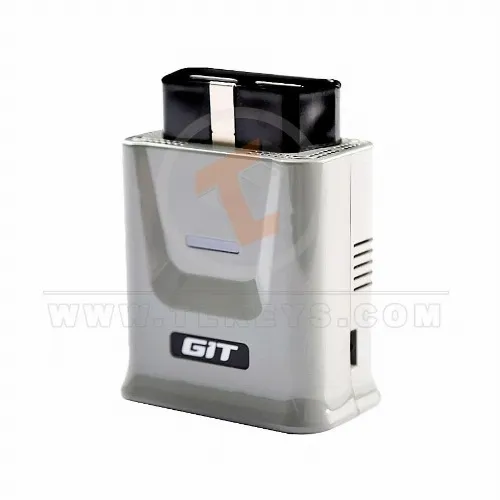

G-Scan Tab GVCI PC Based Diagnostics Bluetooth Solution Device - Automotive Diagnostic Tool (Small but Powerful)

G-Scan Tab SMALL BUT POWERFUL

The G-scan Tab is an affordable PC-based automotive diagnostic solution using Bluetooth technology.
The G-scan Tab exceptionally strong offers reliable Bluetooth connectivity and can connect to a Windows 10 or later-based tablet, laptop, or computer.
The fast and intuitive G scan limited diagnostic software gives in-depth capabilities Large scale of the car makes and models, which is updated and expanded 3 times a year.
It includes free software updates for one year and a 12-month warranty.
Noticeable: PC or tablet not attached with purchase. Own PC, tablet, or desktop pc with Windows 10 (or later) operating system and Bluetooth connection capability is required for the operation.
12v system coverage only, 24v vehicles not supported by G scan Tab. (refer G scan 2)
OBDII connected vehicles covered only. OBDI generation vehicles not supported by G scan Tab. (refer G scan 2)
J2534 pass-thru not supported by G Scan Tab. (refer G scan 2)

G-Scan Tab Features

Wireless via Bluetooth

The wireless and reliable connection between the GVCI and the PC is made simple and easy via Bluetooth.

Factory tool based Hyundai and Kia S/W

Provides complete coverage for Hyundai and Kia vehicles based on Hyundai and Kia factory GDS tools.

Cost-Efficient

No need to pay for the standalone scan tool's complete hardware.
Save money by choosing an affordable Windows tablet from the store or by using the laptop you already own.

Versatility

It works on a Windows tablet or any standard Windows device including laptops and desktops.
* Minimum system requirements must be observed.

No Pre OBD-II Vehicles Coverage

G-scan Tab shares the same database (excluding OBD 1 generation vehicles) with G-scan and G-scan2.

No 24V Commercial Vehicles Support

G-scan Tab is not capable of accepting the power and signals of 24V commercial vehicles.

No J2534 Pass-thru Function

G-scan Tab does not support the J2534 function. G-scan2 is the only option as a Pass-Thru device for programming ECUs on both Hyundai and Kia vehicles.

G-Scan Tab Specification

Memory	Flash Memory 2Mbyte / SRAM 256Kbyte
Operating Voltage	7~35VDC
Dimension / Weight	58 X 74 X 36 mm / 90 g
Wireless protocol	Bluetooth 2.1 + EDR (2.4GHz)
Indicators	2 LEDs (Front/Bottom)
CAN	CAN (High Speed, Low Speed, Single Speed)
K-Line / L-Line	ISO-1941, ISO-9141-CARB, KWP-2000
Commercial Vehicle	SAE-J1708 / J1587, J1850 (VPWM,PWM)
Data / Control Line	Melco Pull-Down



G-Scan Tab Requirements

Display	1200 X 1800 or Higher
CPU	Intel Bay Trail-T Z3735F 64bit processor or later with greater performance
RAM	2 GB or more
Storage (C:)	15 GB or more free space
OS	Windows 10 (or later version)
Wireless protocol	Bluetooth 2.0 or higher



G-Scan Tab Function

Smart Update

When the Windows tablet or PC is connected to the internet, G-scan Tab connects to the GIT server through the internet, checkups, and downloads available updates and patches, and maintains the diagnostic database up to date.

Smart Update

The option automatically scans all vehicle systems, reports fault codes, and provides access to advanced diagnostic functions available for each system detected.

Live data

As one of the basic diagnostic functions, the G-scan Tab provides live data that enables users to monitor the input and output side of the system console.

Actuation Test

The actuation test is another basic diagnostic function that G-scan Tab provides.
Users can check the control unit's operation by activating or deactivating the operation of an active component under the control unit's command.

Special Function

In addition to the basic functions of DTC read/erase, Live Data, Actuation Test, and ECU info, G-scan Tab provides various coding, learning, and Initializing functions.

Diagnostic Trouble Code

DTC read and erase are the basic of the basic functions for diagnosis.
The G-scan tab provides a two-line DTC description that displays full-text DTC descriptions, with no more abbreviations or scanning to fit in the limited space.

Data Graphing with Auto Scale

The alphanumeric numerical value can be switched for live data to fast and responsive graph mode with a simple click.
It instantly self-adjusts the max and min scale helping users more accurately observe and compare the parameters.

Datalog and direct feedback

In case of error or failure, users can log bi-directional data transmission between G-scan Tab and the vehicle.
Log data can be sent to the engineers directly from G-scan Tab, which is responded to within 24 hours on working days.
