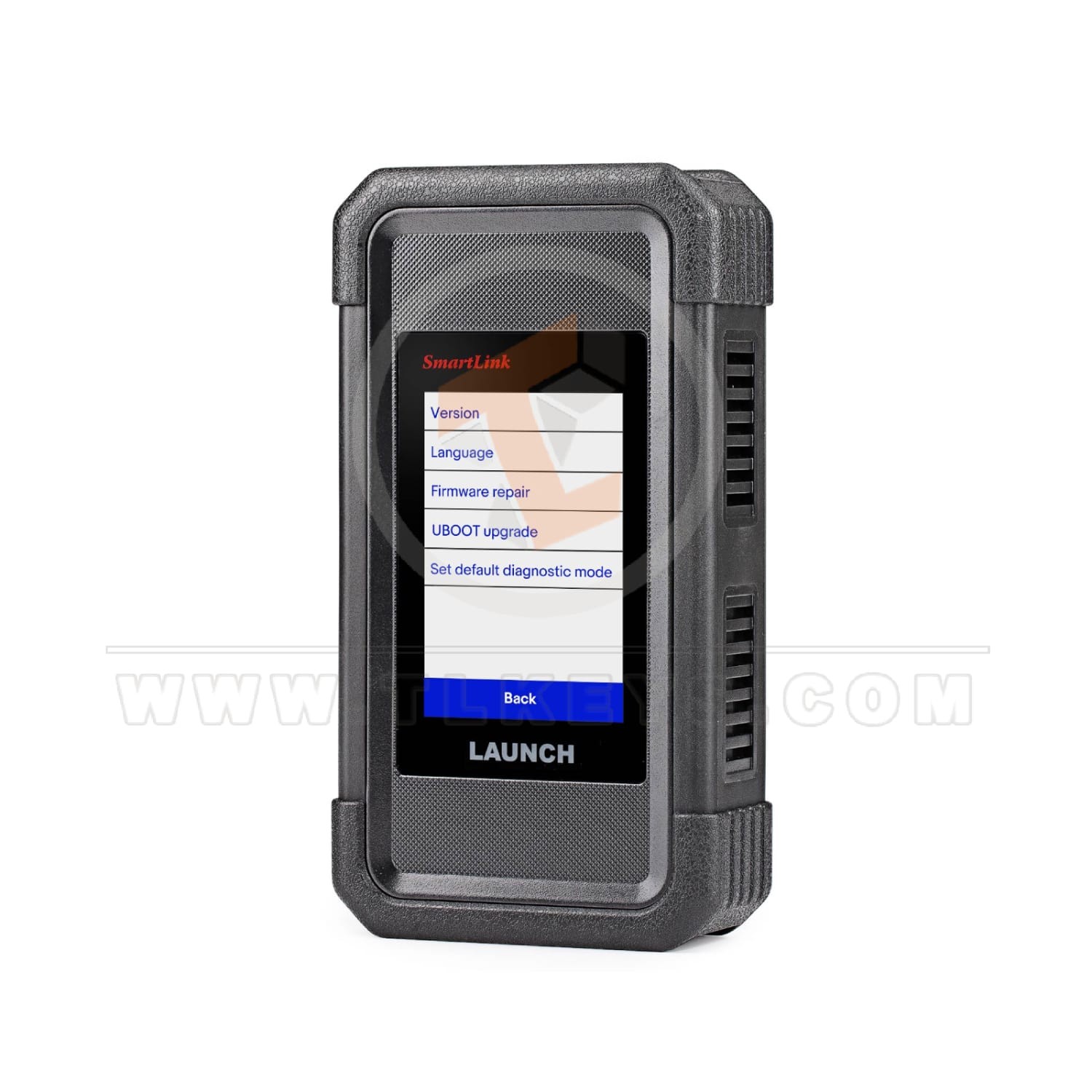

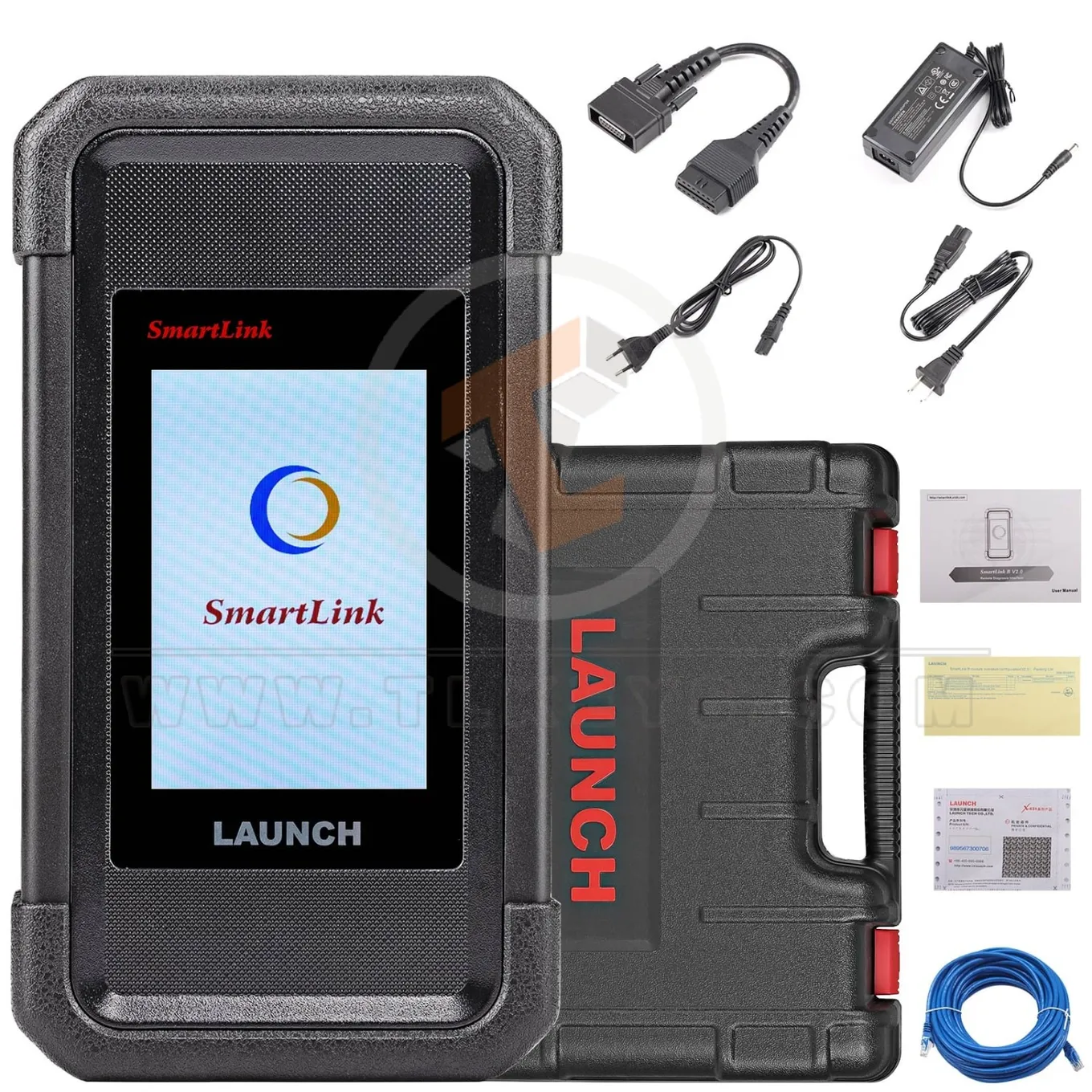

Launch X431 SmartLink B V2.0 – Remote Diagnostic Device

Launch X431 SmartLink B V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector ) No Ip Restriction

The SmartLink super remote diagnosis is a revolutionary solution for in-vehicle remote diagnosis that redefines current methods. The remote scanner can communicate directly with the local vehicle! Only a VCI – SmartLink C is needed on-site when customers need diagnosis and repair. This device allows technicians from thousands of miles away to assist, provided they have the function and SmartLink B.

Launch SmartLink B V2.0 Remote Diagnosis:

The SmartLink Remote Diagnostics System is a newly developed service system for remote vehicle diagnosis and repair. SmartLink B (Business), as the Service Provider, can accept remote repair orders from SmartLink C users via the SmartLink Service Platform.

Launch X431 SmartLink Features:

• Compatible with LAUNCH tools, OE tools, or other diagnostic tools
• Supports both remote and local diagnosis through LAUNCH intelligent diagnostics
• Supports advanced protocols like DoIP, CAN FD, and CAN 2.0
• Allows request publishing and offer acceptance through the Launch Super Remote Diagnosis Reservation Platform
• Compared to SmartLink 1.0, the V2.0 version features:
  • Improved WIFI signal
  • Enhanced heat dissipation

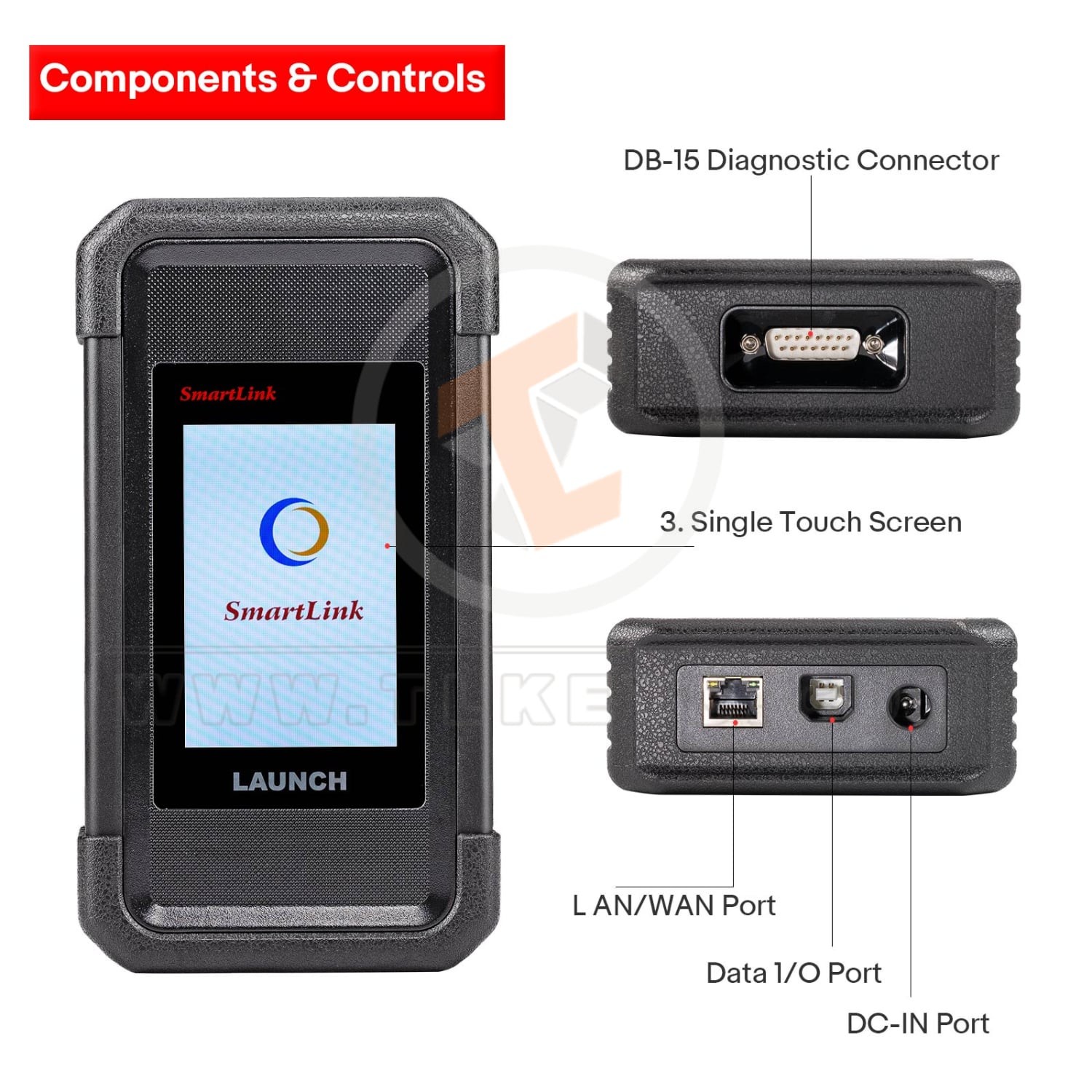

  • DB15 connector for secure connection

Note: Requires an Activation Card

Launch X431 SmartLink Service Platform:

The SmartLink Platform connects SmartLink C with SmartLink B and operates via an internet browser. SmartLink C users can post remote diagnosis requests on this platform, while SmartLink B users can view and accept requests to perform remote diagnostics.

How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?

The process involves creating a remote connection, where SmartLink B users can connect with the vehicle remotely and guide clients through diagnosis. The system supports J2534 protocol, allowing users with OEM software and the Launch Tech J2534 driver to perform diagnostics remotely.

How to Activate SmartLink B Remote Diagnosis:

1. Register: Visit the “Launch Super Remote Diagnosis Reservation Platform” and register with your email and device activation codes.
2. Log in: After registration, log in to the platform. Add more SmartLink devices by entering the product serial number and activation code.
3. Accept Requests: View requests, check details, and accept those you can handle. The client’s contact information will be provided.
4. Perform Diagnostics: Connect with the client and guide them through issue resolution.
5. Complete Task: Mark the task as "Completed" or "Give up" if unresolved. Review diagnostic history in the "History task" section.

How SmartLink B Users Provide Remote Diagnostic Services:

• Creating a Remote Connection:
  • Mode 1: Connection Code - SmartLink B user obtains a code from the car-side user.
  • Mode 2: Appointment or Open Demand
• Connect the SmartLink B to the network and diagnostic device.
• Operate the diagnostic device to start the remote diagnosis. Monitor online status, vehicle voltage, and network delay on the platform.
• After diagnosis, enter test results to conclude the task.

SmartLink B Specification:

• Display Screen: 3.97-Inch single-touch screen, 320*480
• Working Voltage: DC 9V ~ 36V
• Communication Method: Remote diagnostic mode via Ethernet
• Wi-Fi: Supports 2.4G/5G dual band
• USB: Type B USB 2.0
• Storage: 8GB
• Memory: 256M
• Power Consumption: < 6W
• Working Temperature: -10℃ ~ 50℃
• Dimensions: 204mm x 110mm x 45mm
