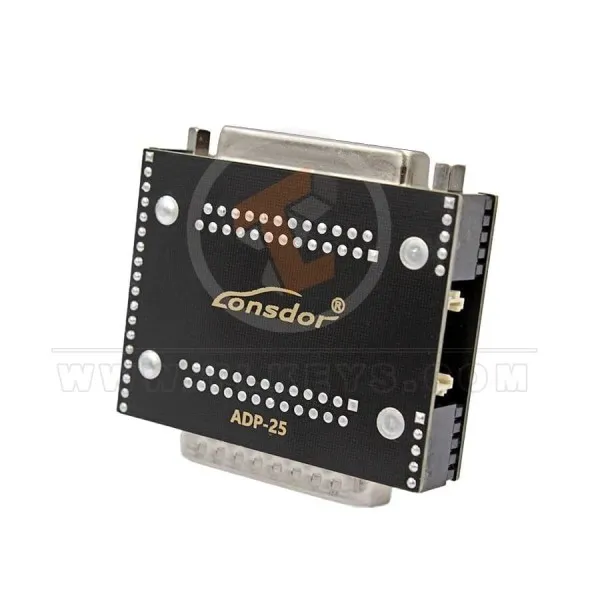

Lonsdor Super ADP 8A4A Adapter

Lonsdor Super ADP 8A/4A Adapter for Toyota Lexus Proximity Key Programming with Lonsdor K518

Lonsdor ADP Super Highlights

Support Min. 90% Toyota/Lexus（ up to 2021） Smart key programming without AKL license.
Compatible with all K518 series (K518S/K518ISE/K518 Pro..)
All Keys Lost requires an LKE Emulator as well.

Bundle for Lonsdor Super ADP - 25

Bundle Lonsdor Toyota Lexus Super ADP 8A 4A Adapter And LKE Emulator For K518ISE K518S
Lonsdor K518ISE Key Programmer + LKE Smart Key Emulator + Super ADP 8A/4A Adapter & JCD-1 & JCD-2 Cable Set For Chrysler Dodge Jeep - 1 Year FREE UPDATE

Newly added key programming for smart box with chip 93C66
8A: DST-AES 88 A8 A9 AA
4A: HITAG-AES

Lonsdor Super ADP Functions

Backup IMMO data
Add key by OBD
All key lost
Delete key
Free password to program dealer key & Lonsdor FT specific key

How to Use Lonsdor ADP Super?

Connection:
Locate the smart box.
Connect the Lonsdor ADP 8A/4A Adapter to the K518 series programmer interface.
Disconnect the interface between the smart box and the car, then connect the smart box and ADP adapter via the professional wire harness.
Connect the ADP adapter to the OBD port of the vehicle.

Operations:
Make sure the K518 key programmer WiFi connection is good, then you can do the following operations based on the tips on the K518 series machine.

1. Backup IMMO data
2. Generate emulator key AKL (8A/4A)
3. Add smart keys
4. Delete smart keys

Note: No need to generate a Lonsdor LKE smart key emulator when adding smart keys.
However, you must generate a Lonsdor LKE smart key emulator when all your keys are lost.

Lonsdor ADP Adapter Toyota Car List:

Toyota 8A	Camry/2013-2021
	Camry/2013-2021
	Land Cruiser/2014-2021
	Prado/2014-2021
	Crown/2015-2021
	Alphard/2015-2021
	Vellfire/2015-2021
	Previa/2015-2021
	C-HR/2018-2021
	lzon/2018-2021
	Wildlander/2018-2021
	Avalon HV/2019-2021
	Rav4/2014-2021
	Prius/2015-2021
	Avalon/2019-2021
	Corolla EX/2013-2019
	Harrier/2021
Lexus 8A	UX series/2018-2021
	RX series/2013-2021
	NX series/2017-2021
	LS series/2013-2021
Toyota 4A	Livin/2021
	Allion/2021
	Corolla/2019-
	Corolla HV/2019-2021
	Levin/2019-
	Levin HV/2019-2021
	IS series/2013-2021
	GS series/2013-2021

Package Includes:

• 1 pc x 27P cable
• 1 pc x ADP-25 adapter
• 1 pc x 24P cable
