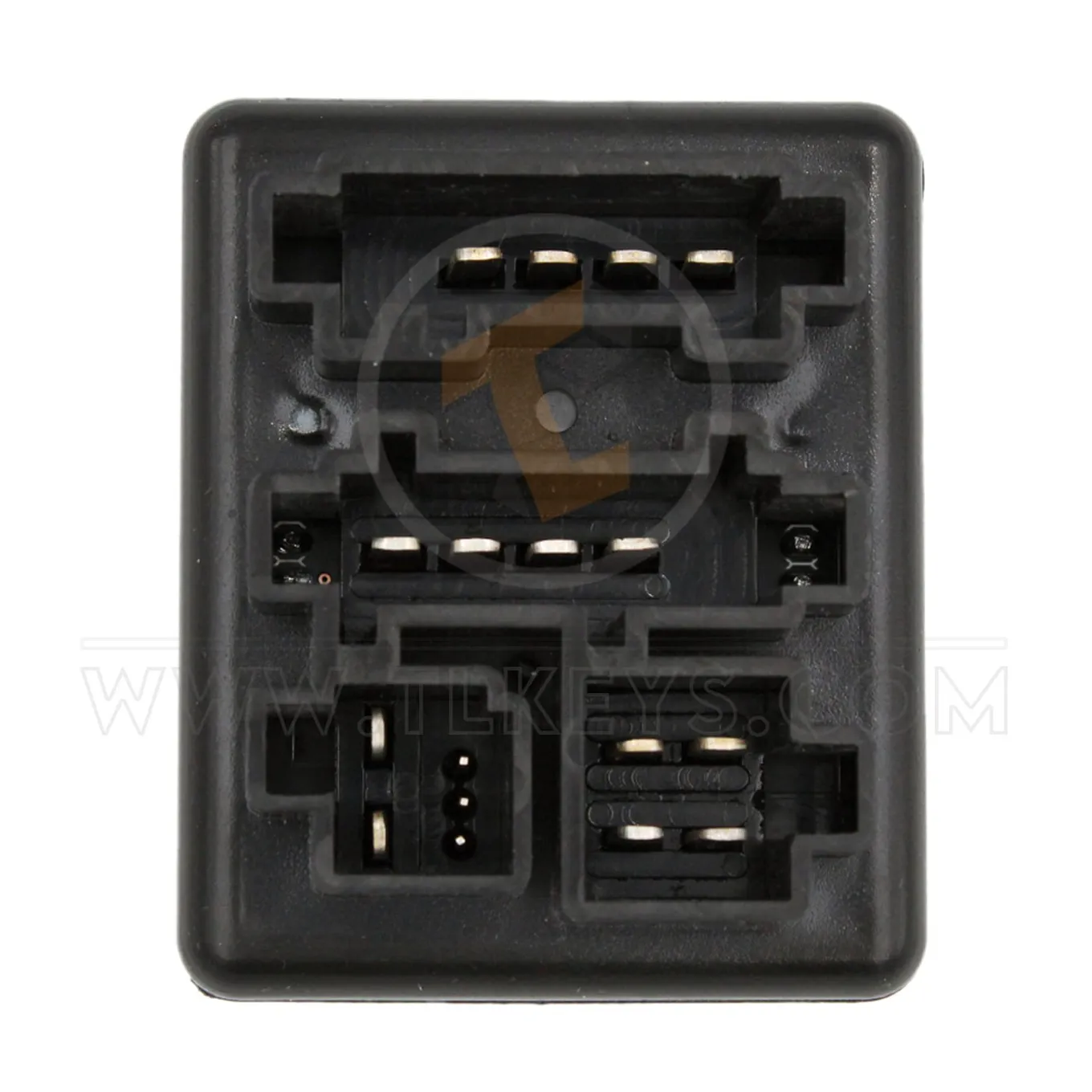

MB Universal Steering Lock Emulator All Models

W204-W207-W212-W176-W246-W447 Shorted Jumper

Mercedes W204 steering lock Fatal error is one of the most frequent problems in Mercedes Benz starting system for Mercedes W204, W207 & W212 from 2007 to 2014.
Mercedes Benz Dealer has to order a new steering lock unit and program it which is too much costly and requires a long time of waiting, using this Mercedes Benz ELV Emulator, you can program it very easy & you can reprogram it to another vehicle once needed very easy.
Mercedes steering lock bypass emulator will make your job easier and faster, Mercedes W204 ESL bypass was never that easy, using Emulator W204 Mercedes is safer and more durable than Mercedes W204 ELV repair since you will not get any Mercedes W204 ESL problem.

Mercedes W204 ESL Emulator Main Features:

• Mercedes W204/W207/W212/W176/W447 steering lock emulator is very simple and easy to use
• Mercedes W204/W207/W212/W176/W447 ELV steering emulator Support most types of Mercedes key programming devices
• Mercedes W204/W207/W212/W176/W447 emulator Can be reprogrammed several times
• Mercedes W204/W207/W212/W176/W447 ELV emulator light helps you to determine the status of ELV programming

How to Use & Fix Mercedes W207 emulator?

1. Unplug the ELV wire from the car steering lock unit.
2. If the vehicle steering loch is in lock mode steering lock must be removed from the car.
3. Calculate Mercedes EIS Password using the famous diagnostic tool. (VVDI, AVDI, etc.)
4. Mercedes ESL Emulator programming must be done using a famous diagnostic tool device.
5. Connect the Mercedes ELV emulator to the car and start the vehicle.

Mercedes Steering Lock Emulator Light Behavior

After programing the ELV emulator Mercedes and connecting it to the car, or to the testing cables, insert the car key to the ignition switch.

• If the Emulator ELV Mercedes-Benz light turns green that means programming is done perfectly, and the car is ready to start
• If the Mercedes EIS Emulator light turns red that means programming procedures are not done well or the key you are using doesn’t belong to the same EIS / EZS.
• If the Mercedes ELV emulator W204 light doesn’t turn on you must check the power supply of the car or the cables

Mercedes Benz Steering Lock Emulator Supported EIS / EZS

• ELV Emulator Mercedes W204 EIS
• ELV Emulator Mercedes W207 EIS
• ELV Emulator Mercedes W212 EIS
• ELV Emulator Mercedes W176 EIS
• ELV Emulator Mercedes W246 EIS
• ELV Emulator Mercedes W447 EIS with a steering lock

Mercedes ESL Emulator Supported Key Programming Devices

• Abrites AVDI
• Xhorse VVDI MB Tool
• Xhorse Keytool Plus
• CGDI MB
• DIAGSPEED
• AUTEL AURO

MB Universal Emulator Non-Shorted Jumper

Mercedes electronic steering lock problem is one of the most frequent problems in Mercedes-Benz starting system, Mercedes dealers have to order a new steering lock and program it which is too much costly and required a long time of waiting.
Our electronic steering lock Mercedes emulator will fix your steering lock error, and the Mercedes Benz ESL ELV Universal steering lock emulator will bypass Mercedes ELV permanently, our Mercedes ESL emulator doesn’t require coding, simply connect and it will fix your Mercedes ESL failure.
If you wish to move the Mercedes steering lock emulator to another vehicle to diagnose a fault then the Mercedes steering lock bypass emulator can be connected to another car without coding.
“Mercedes ESL ELV emulator will make your job easier and faster, Mercedes ESL fault repairing was never that easy before our emulator.”
Using the Mercedes ELV bypass emulator is safer and more durable than Mercedes ESL repairing since you will not get Mercedes ESL issues anymore in the future.
The Mercedes EIS emulator replaces the original Mercedes ESL signal.
It is used in the event of damage to Mercedes ESL or to check the correct operation e.g. the ignition switch.

Mercedes ESL Bypass Emulator Main Features:

• Mercedes universal steering lock emulator is very simple and easy to use.
• Mercedes universal ELV emulator doesn’t require coding
• Mercedes universal ESL emulator light helps you to determine the status of ELV programming

Plug and Play No Need for Adaptation

How to Use & Fix ESL Steering Lock Emulator

• Unplug the ELV wire from the original car steering lock unit
• If the vehicle steering lock is in lock mode, the steering lock must be removed from the car
• Connect our Mercedes ELV emulator to the car and start the car.

Mercedes Steering lock emulator light behavior

After connecting Mercedes ELV ESL to the car, or the testing cables, insert the car key into the ignition switch

• If the Emulator ELV Mercedes Benz light turns green that means it is connected well and the car is ready to start
• If the Mercedes EIS Emulator light turns red that means the key doesn’t belong to the same EIS / EZS or you have a Mercedes EIS problem
• If the Mercedes ELV emulator light didn’t turn on you must check the power supply of the car/cables

EIS ESL Mercedes Emulator Supported models:

• Mercedes W639 ELV emulator, Mercedes W639 steering lock emulator
• Mercedes W906 ELV emulator, Mercedes W906 steering lock emulator
• Mercedes W209 ELV emulator, Mercedes W209 steering lock emulator
• Mercedes W211 ELV emulator, Mercedes W211 steering lock emulator
• Mercedes W219 ELV emulator, Mercedes W219 steering lock emulator
• Mercedes W203 ELV emulator, Mercedes W203 steering lock emulator
• Mercedes W463 ELV emulator, Mercedes W463 steering lock emulator
• Mercedes W169 ELV emulator, Mercedes W169 steering lock emulator
• Mercedes W463 ELV emulator, Mercedes W463 steering lock emulator
• Mercedes Sprinter ELV emulator, Mercedes Sprinter steering lock emulator
• Mercedes W202 ELV emulator, Mercedes W202 steering lock emulator
• Mercedes VITO ELV emulator, Mercedes VITO steering lock emulator
• Mercedes VIANO ELV emulator, Mercedes VIANO steering lock emulator
• VW Crafter ELV emulator, VW Crafter steering lock emulator
• Mercedes W208 ELV emulator, Mercedes W208 steering lock emulator
• Mercedes W210 ELV emulator, Mercedes W210 steering lock emulator
• Mercedes W245 ELV emulator, Mercedes W245 steering lock emulator
