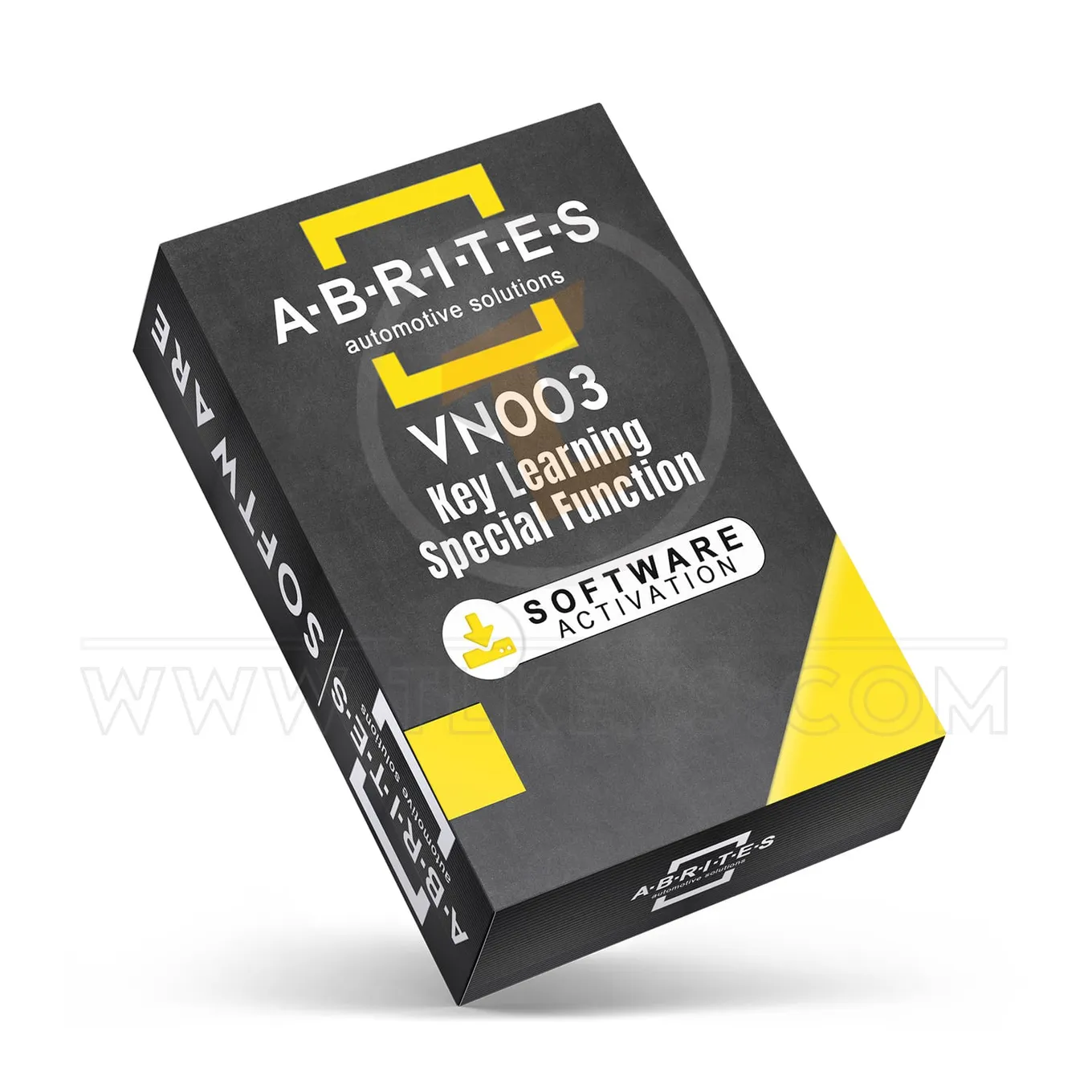

VN003 - Key Learning Special Function

VN003 Key Learning special function is one of our flagship products. It is a world leader in key learning and is a great solution for key transponder, PCB, and remote-control programming for Volkswagen/Audi/Seat/Skoda/Bentley/Lamborghini and even some Porsche vehicles. It works for vehicles produced from 1996 up to 2018.

Main functionalities:

Key Programming by OBDII in ALL KEYS LOST situation, and when programming additional key.
Dealer Key preparation
Read/Update Immobiliser related data – PIN, Component Security , Power Class, MAC
Read/Update IMMO data from ECU
Standard and Wizard mode key programming (Guided functions)

Supported models:
VN003 covers a range of cars with the following immobiliser systems:

IMMO I
IMMO II
IMMO III
IMMO III+
IMMO IV
IMMO V (BCM2)

Immo I/II with external immobiliser box up to 2003

Additional Key Programming and AKL by OBDII

SUPPORTED MODELS:
Audi A3/A4/A6
VW Golf/Passat
Others
*in some cases immo box needs to be read with a programmer

Immo III 2003 - 2007

Additional Key Programming and AKL by OBDII
Read/Update CS, and PIN by OBDII (from ECU and immobiliser/dashboard)

SUPPORTED MODELS:
Audi A8

VW Phaethon/Touareg

Bentley

(all models with Kessy)
*ZN061 for VW Tauran/Golf 5 AKL

Immo III+ 2007 - 2014

Additional Key Programming and AKL by OBDII
Read/Update PIN and CS by OBDII
Extracting 7th bite of CS

SUPPORTED MODELS:
Audi A3/A8

VW Passat/Touareg,

Porsche Cayenne

Bentley
*ZN060 might be required for A3 in AKL
*TA31 might be required to extract 7th byte in AKL

Immo IV

Additional Key Programming and AKL by OBDII
Read/Update Immo data by OBDII

SUPPORTED MODELS:
Audi A6 and Q7 (2006+),  (EZS Kessy)

VW Golf VI, Jetta, Touaran, Tiguan, (VDO Nec, Micronas, Magnetti Marelli) Beetle, New Beetle
*AKL if ECU cannot be read by OBD or internal CAN, it needs to be done by dump
*ZN059 would be required in AKL situations for VDO Nec

Immo V (BCM2) 2008 - 2018

All Keys Lost up to 2012 - 2013
Additional key programming up to 2018
Disable ELV

SUPPORTED MODELS:
Audi A4/A5/Q5/ 2008+

Audi A6/A7/A8/VW Touareg (2010-2018)

Compatible keys:

TA44
TA46
TA49
TA50


MQB vehicles require VN009.
An AVDI interface with an active AMS in order to use this special function, ZN002 / ZN003 PROTAG Programmer required for using it.
