Xhorse Mercedes Package VVDI MB BGA Tool Key Programmer With 1 Year

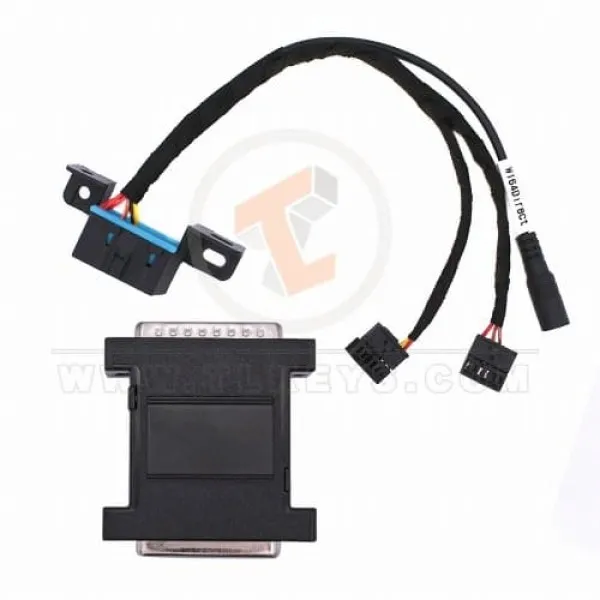

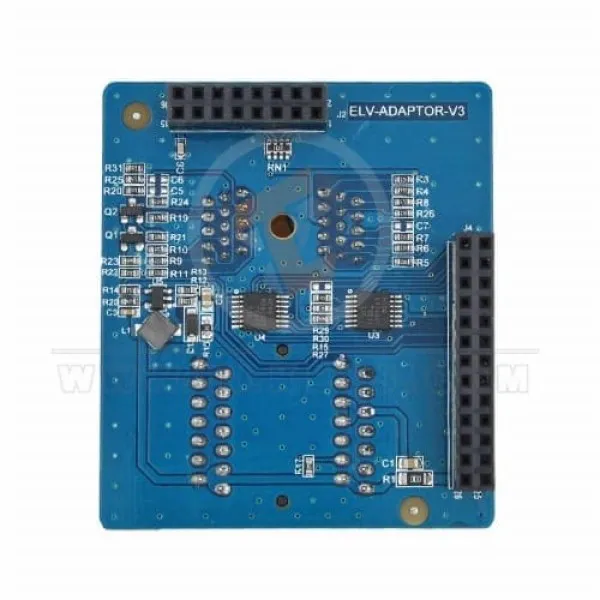

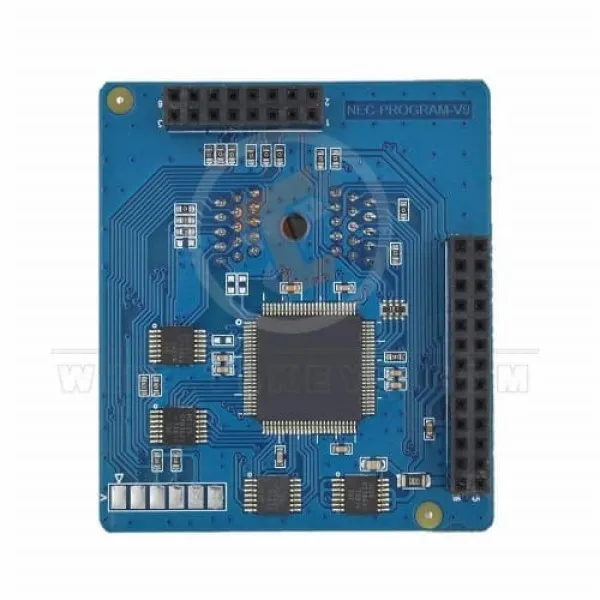

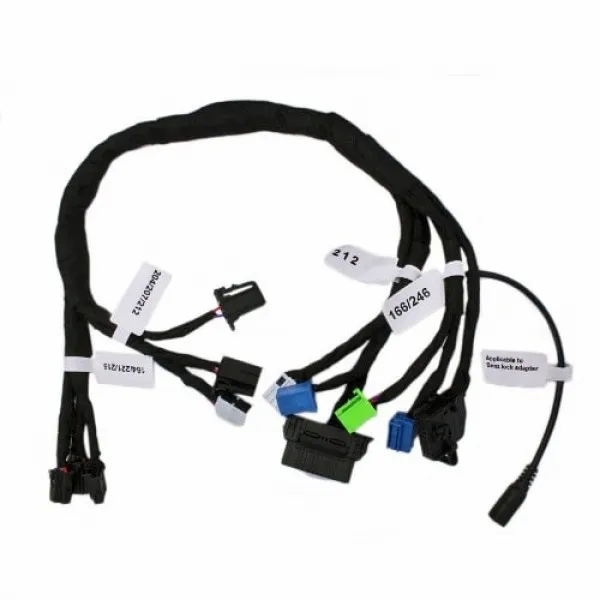

Xhorse Mercedes Package VVDI MB BGA Tool Key Programmer With 1 Year Free Subscription + ELV Lock Socket Adapter + NEC Key Socket Adapter + VVDI MB BGA Tool Power Adapter + EIS ELV Test Line Cable + Mercedes Benz Fobik Key Remote 3 Buttons + 2PCS Original FBS3

VVDI MB BGA Tool Key Programmer support all key lost for most Benz cars, Mainly used for key reading and writing, EIS tools, password calculation, key file preparing, ESL tools, ECU/Gearbox renewals, and many special functions.

Now support all keys lost: W202, W203, w204, w207, W208, W166, W197, W212, W218, W246,
W206, W210, W463, W639, W246, W212, W212(old),
some W216, W164 2009-, W164, W221, W215, W220, W230, and future will add more

Password Calculation: Read EIS under OBD mode will check car power automatically. Avoid lost data in EIS

Note: VVDI MB BGA tool update goes well, the following workable models are for reference only.

Xhorse VVDI MB BGA TOOL Highlights:

1. Support BE key, read password and prepare new key via IR.
2. All NEC keys support on-board to write and erase
NEC V051, V057 support on board get password
3. Password calculation: Read EIS under OBD mode will check car power automatically.
Avoid lost data in EIS
support BGA keys, NEC keys(include 51,57version), etc., work fast.
4. Support renewing EIS and ELV
5. Support writing EIS and ELV
6. Support online generate key file
7. Unlock the ELV function
8. Renew other control modules function will support soon
9. Latest Version: V5.1.1, Free update lifetime

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Read-write key
Identification key, IR read & write BE key
Red V51, V57 version's key password by NEC adapter
Read activate blank BGA(OCF4)key,
key current Hash(repair)
Renew, write into the used NEC KEY
Write smart key etc.

2. Password calculation
OBD read and calculates all(FBS3) can protocol EIS password
support BGA Key, NEC Key, V51, V57 version password calculation
support all key lost W164, W216, W166, W211, W212, W246, W212(OLD), W204, W207 ECT
online calculation key password, work fast.

3. ESL TOOLS
OBD(Kline) read data, renew ESL, replace ESL(no need to renew EIS)
check ESL damage, repair W204 ESL

4. Read/Write Gateway
support OBD repair KM: W204, W207, W211, W251, W154, W212, W221, W216, W166, W172, W232, W205, etc.
Support reading & writing gateway EEPROM and Flash: W211, W164, W204, W207, W212, W221, W216, etc.

5. EIS tools
Read & write EIS by OBD or IR, OBD auto-detect, access to W164, W209, and W211 without gateway
read the old Motorola EIS (K-Line)'s password
renew EIS, replace EIS, enable key, disable key, personalize W204 ESL
test EIS status, working key, etc.

6. Prepare Key File
Online generate V11, V41, and V51 version's key file
support Motorola EIS EEPROM file, with high efficiency, 100% successfully generate

7. Program ECU/Gearbox/ISM
Support renew ECU, gearbox, and ISM, write VIN, personalized, etc.

8. Unlock the ELV function will be released soon.

9. Renew other control modules function will support soon

Model Support IR/OBD:

• W164, W164 2009+
• A166, W197, W212, W218, A246
• A169, W209, W211
• W172, W204, A207
• W203
• W204, W207, and W212 only by dump
• W209 only by dump
• W210
• W215, W220
• W230
• W216
• W221
• W906

Keys Version Supported:

• v03, v06, v08, v05, v07, v09, v59,v61
• Supports all BENZ KEYS after 2011

VVDI Benz BGA tool Review:

1. I tested the password from 212 new model super, good tool, need to pay 2 tokens, it will take 10 min all ok.

2. Do you have to see a video of this tool? They say can do all keys lost on w212. No tool can do it even Mehaco or NEC pro51. w212 EIS on video, sure it can.
Mehaco / Mercedes instrument can do all keys lost on w212.. the option is available for a few months.

3. Q: I test read data with obd2 210 kline working and 204 car read with OBD 2 but 211 not read with obd2 cable connect

• 16 12v
• 4+5 GND
• 14 CAN_L
• 6 CAN_H
• pin 1: ESL 1
• pin 2: GND
• pin 3: +12V (30)
• pin 5: CAN L (White)
• pin 6: CAN H (Green)
• pin 7: CAN L
• pin 8: CAN H

CAN ANYONE TEST

A: Read EIS via OBD for W164, W169, W211, and W209, require gateway connected

4. I try to collect the list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL

• W210: EIS/EZS A208.545.01.08 - MCU ??? -read PSW IR - not successful
• W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
• W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
• W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
• W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
• W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
• W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
• W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
• W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
• W220: EIS/EZS A215.545.02.08 - MCU ??? - read PSW IR - OK
• W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
• W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful

  I Can guarantee it will not read ANY WITH HC05
  1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
  read a w203 A203.545.05.08 with mask 1J35d password ok
  W203 IES 203 545 05 08 read PSW IR OK
  W 220 IES 215 545 02 08 read PSW IR – OK

  Only support parts of HC05, HC08 Motorola EIS(Kline), it cannot support will show error, need to remove EIS get EEPROM. we have tested W215 ok, but not mean all W215
  can support. in fact, only support parts of this type.

please refer to change W204 ESL steps:

ESL: Clear TP, Renew ESL (need erase password)
EIS: Renew EIS (need password & erase password)
Write EIS data back, then Personalize W204ESL

5. There is a new tool from VVDI called VVDI MB TOOL and until now has worked very well with me.
If you want a good device for a good price I think VVDI MB TOOL is your best choice.

6. Now get the password from W204 EZS/EIS all keys lost type process in 2nd attempt using VVDI BGA V2.1.4 new software.

• If all keys are lost you need 2 tokens. After 1 minute get back the password
• Try now to calculate key dumps, write the first dump to BE key, and use it in EZS/EIS…learned quickly
• Try to use now Xhorse W204 ELV-emulator…success assigned…new key turn, EMU sound lock/unlock rightly
• Every W212, where assembled manual transmission or 5G-automatic have W204 EZS/EIS with W204 ELV metal unit
• I have done already the W212 ELV Emulator for W204. All went quickly with no problems whatsoever.

7. Working key mode needs to pay 1 time for success calculation. Lost all key need to pay 2 times for success calculation

• Password calculation – working key: can get key password through EIS and working key (online)
• CAN protocol EIS all support password calculation
• Support BGA keys and other NEC keys
• Support calculate password for NEC v51 and v57 keys. No soldering, safe method.
• Data acquisition time depends on the key version. It needs about 3.5 – 13 minutes
• BGA version need about 5 minutes, some versions only need 3.5 minutes
• Calculate time in server: 30 seconds – 1 minute
• Password calculation – lost all keys: support W166, W212, W246, W212(old with ELV)
• EIS for password calculation while lost all working key
• Lost all key data acquisition time depends on EIS type, It needs about 3.5-8 minutes
• Lost all key calculate time in server: 30 seconds – 1 minute

8. About IR mode:

1.  Identification key： Support read key basic information: SSID, counter, remain times, use times, key number, status, version, mark values, etc
2.  BE key: Key version is BE, support read password and key EEPROM stored in BE key, write new key file to make a working key, renew used BE key to a new one, etc
   If a working key is BE version, you can read the password from the key directly, no need to read the password from EIS
3. NEC&BGA Keys: Write the key file to new original keys or erased keys via IR
4. Write mark values: Only BE key support, you can write information for yourself
5.  Copy key password: You can copy the password to the clipboard after success reading the key password
6. Repair key via IR: When identification key, you can only get SSID, Status, and Version, then you can repair this key via IR

How to combine Xhorse VVDI 2 and VVDI MB TOOL to your account?

1, Run Xhorse Upgrade Kit
2, Connect your Xhore device to a PC via USB cable
3, Read the device and select "Binding "
4, You will get a QR code automatically
5, Login Xhorse APP, enter "Account "-"Combine device"
6, Scan the QR code to combine with your account
