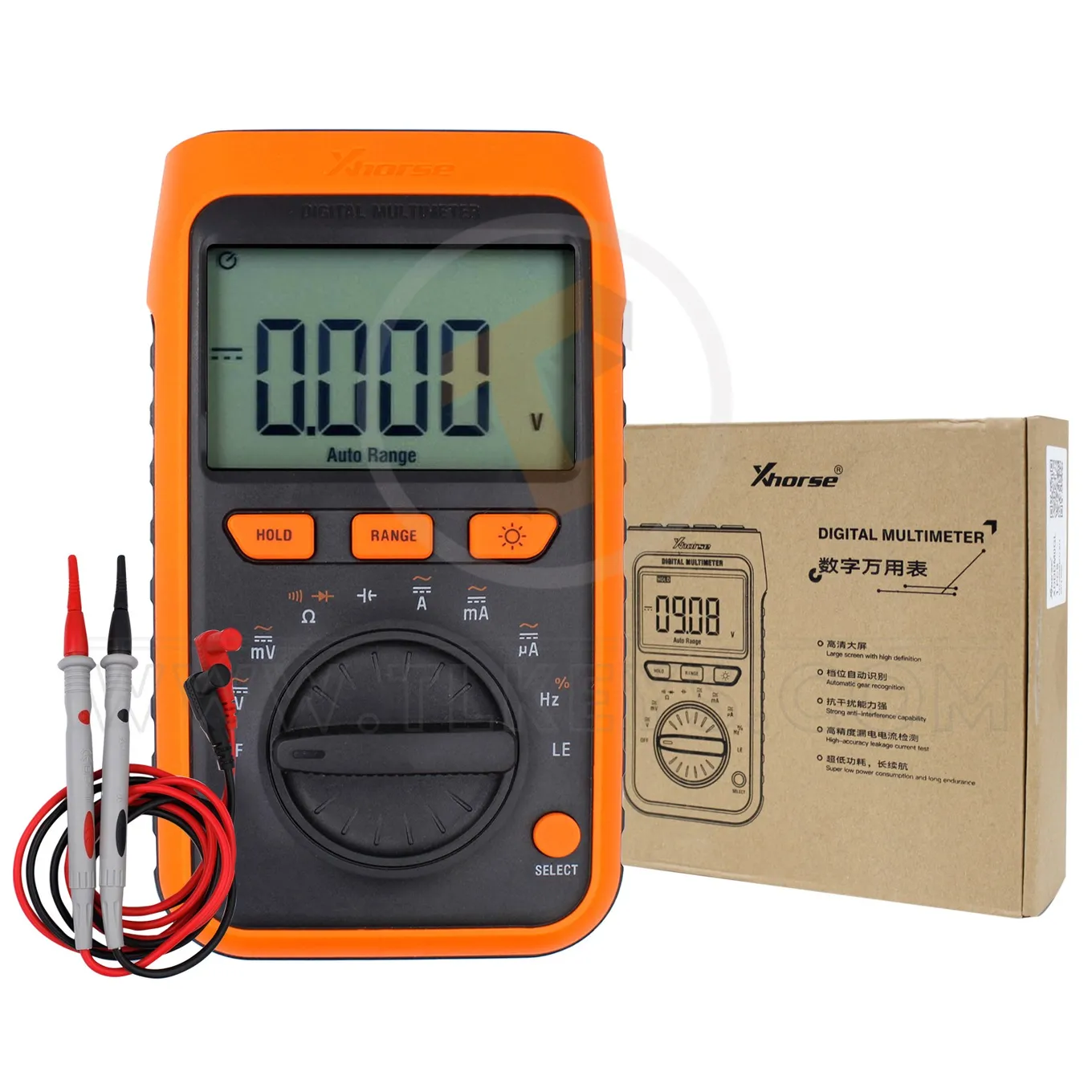

Xhorse XDDDM0GL Digital Multimeter with Overload Protection

The Xhorse Digital Multimeter XDDDM0GL supports a variety of functions, including AC/DC voltage measurement, AC/DC current measurement, resistance measurement, capacitance measurement, frequency measurement, duty cycle measurement, diode testing, and continuity testing.

The measurement range for leakage detection is 600μA/6000μA, with a maximum resolution of 0.1μA and accuracy of 1μA.

Yes, the XDDDM0GL can measure both AC and DC voltage. It has measurement ranges of 600mV, 6V, 60V, and 600V with resolutions of 0.1mV and 0.001V, and an accuracy of ±(0.5%+3) for DC voltage and ±(0.8%+3) for AC voltage.

The maximum resolution for DC current measurements is 0.01mA for 60mA/600mA ranges and 0.001A for the 10A range. The accuracy is ±(0.8%+3) for 60mA/600mA and ±(0.6%+3) for the 10A range.

For AC current measurements, the XDDDM0GL covers ranges of 600μA/6000μA, 60mA/600mA, and 10A. It offers resolutions of 0.1μA, 0.01mA, and 0.001A respectively, with accuracies of ±(0.8%+3) for 600μA/6000μA and 60mA/600mA ranges, and ±(1%+3) for the 10A range.

The multimeter measures resistance from 600Ω to 60MΩ. The maximum resolution is 0.1Ω, and the accuracy is ±(0.8%+3) for resistance measurements. For on/off detection, the device produces sound below 500Ω and displays OL above 6100Ω.

Yes, the XDDDM0GL can measure capacitance with ranges from 6nF to 600uF. It has resolutions of 0.001nF for lower ranges and 0.01uF for higher ranges, with accuracies of ±(5%+5) for 6nF to 60uF and ±(10%+5) for 60uF to 600uF.

The frequency measurement range of the XDDDM0GL is from 9.999Hz to 9.999MHz, with a resolution of 0.001Hz and an accuracy of ±(0.5%+3).

The diode testing function measures from 0V to 3.3V with a resolution of 0.001V. The display shows OL (overload) for readings above 3.3V.

The XDDDM0GL includes overload protection, able to withstand impacts up to 600V. It also has mistest protection with overvoltage and overcurrent alarm prompts.

The auto-ranging feature simplifies measurements by automatically adjusting the multimeter’s settings based on the measurement being taken. This reduces manual errors and makes the device easier to use.

The XDDDM0GL is designed with low power consumption of less than 3mA, contributing to long battery life. It includes automatic power-saving features to extend battery performance.

Yes, the XDDDM0GL features a high-definition large screen with a backlight, ensuring clear and readable measurements even in low-light environments.

The XDDDM0GL is built with durable materials and includes a design that is easy to grip, with a knob that conforms to user habits. It also features a rear support that can be adjusted for various usage conditions.
