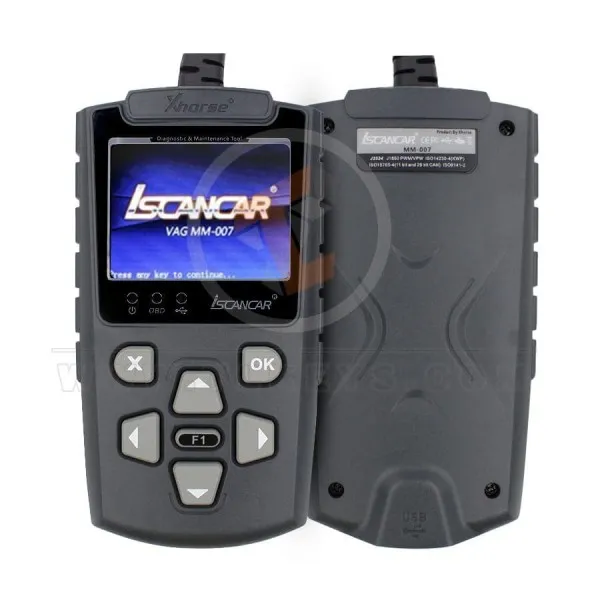

Xhorse XDMM01EN MM-007 Car Diagnostic Tool and Maintenance

Xhorse Iscancar VAG-MM007 Support MQB KM Function Plus MQB Cable MQB Mileage Change

The latest update of the VAG MM007
Hardware version: 2.3.2
Software version: V2.3.0 2019/07/11
NEC35xx mileage change

Xhorse Scan Tool VAG-MM007 Parameters:

Voltage: 5V USB / 12V OBD
LCD Resolution: 320×240
USB Standard: USB2.0
Working Temperature: 0-60° C
OBD Line Length: 1.5meters
Power Consumption: 80mA/12V

Xhorse Iscancar V-A-G MM-007 Main Features:

1. Support ECU Diagnosis: Basic Setup, Channel Adaptation, DTC Read, DTC Clear, System Login, etc
2. OBD reader PINs, adjustment after control unit replacement, gate record, etc

MQB Connection:
Iscancar VAG MM-007 Basic Function:
Support console diagnosis, such as basic setting, channel adaptation, DTC reading, DTC clearing, system logging, etc.

Guide Function:
There are many commonly used functions.
They have simplified the process so that you can follow it more easily.

Special Function:
OBD reader PINs and adapts after replacing the control module, gate record, etc.

Write Data Log:
When you replace the new console, you must write the data records online, otherwise, the console will not work properly.
You can now use this car diagnostic scanner to write data logs offline.
And you can activate some functions like MKE etc.

The basic function of refurbishment and maintenance:
Many functions are very useful for reconditioning and maintenance, such as control module replacement,
throttle conditioning, and electronic brake pad replacement. In addition, more functions will be added continuously.

Built-in Database:
There is a database built into the car diagnostic tool. Users can write data records without an online account.
It has already supported many consoles, and more data will be added constantly.

Technical Support:
Xhorse technical support team is professional and efficient, and online technical support for free.
Provide lifelong perfect after-sales service to ensure a trouble-free operation of the equipment.
Consider customer suggestions and feedback carefully.

Online upgrade:
VAG MM-007 can be upgraded online.

Example of Writing a Data Record:

1. PQ35 Gateway 7N0907530AN: MKE Active. After writing the data record, you can set MKE on the dashboard.
2. MQB Gateway 5Q0907530AJ: MKE active. After writing the data record, you can set MKE on the dashboard.
3. PQ35 replaces Kessy 5K0959434B: Before writing data, there is a DTC "No key setting", and the car cannot find the keys.
   After writing the data, the DTC disappears, and the car can find the keys.
4. Replace MQB Kessy 5Q0959435A: Before writing data, there is DTC 10478040 (invalid data record), the car cannot find the keys.
   After writing the data, the DTC disappears, and the car can find the keys.
5. Front camera MQB 5Q0980653G: Before writing data, there is DTC 0649 (invalid data record), after writing data the DTC disappears.
6. New MQB ACC 5Q0907561A: Before writing data, there is an "invalid data record" for a DTC, after writing data the DTC disappears.
7. PQ Xenon 5M0907273F: Before writing data, there was DTC 10478040 (invalid data record), after writing data the DTC disappears.
8. PQ 3AA907273D Tire Pressure Monitor: Before writing data, there is DTC 12652550 (invalid data record),
   the control module does not work, after writing data the DTC disappears, and you can set the tire pressure on the dashboard.
9. New MQB DCC 5Q0907376: Before the write date, there was a DTC 813056 (invalid data record), after the data is written the DTC disappears.
10. Parking Assist MQB 5Q0919298K: Before writing data, there was DTC 10478040 (invalid data record), after writing data the DTC disappears.

VAG-MM007 V2.2.9 (2018-05-16)
---------------------------------------------
** Note: Please download the upgrade kit to update the firmware
1-Simulator:
Sniff all modules data.
Main menu -> Module simulation -> Data sniffer.
Sniffer CAN bus data.
Main menu -> Module simulation -> Data sniffer.
Download a file online.
Main Menu -> Module Simulation -> Online File Upload.
Simulate all units.
Computer software -> user selects units.

2-Read 4th generation IMMO and MQB dashboard key ID.
Main menu -> Function guide -> 17 panels.

3-Golf7 sports van ABS code generates.
Main menu -> Function guide -> 03 ABS.

4-Parameter Files:
Tiguan_PQ35_05KESSY_5K0959434E.
Golf 7_19_5Q0907530 AD.
MQB_19_5Q0907530AF.
MQB_19_5Q0907530AH.
MQB_19_5Q0907530AJ.
MQB_19_5Q09075330AM.
Tiguan_MQB_14_5Q0907376A
PQ_19_7N0907530BG
Audi S3_19_530AJ
Dynaudio_10channels_5C6035456C
Passat B8_PDC_3Q0919298B
Touran L_19_5Q0907530AM
Touran L_10_5QA919298
Teramont_6C_AreaView
Tiguan_MQB_4B
Tiguan_MQB_6C_AreaView
Tiguan_PDC_5Q0919298C
Passat B8Variant_14_5Q0907376B
Sharan
Passat
leon_fcm_3Q0907338
leon_A5_3Q0980654G
leon_pdc_5QA919294A
leon_44_5Q0909144S
Octavia_A5_5Q0980653G
Octavia_42_5Q4959593E
Octavia_A5_3Q0980654H
Octavia_52_5Q4959592E
Octavia_44_5Q0909144S
octavia_44_5Q0909144T
octavia_3C_5Q0907686B
Passat
Q3_RMC_8U1035183D
Audi Q5_6C_AreaView4M0907428E
Audi Q5_22_sportdiff_8K0907163B
Audi R8_MXB_4H4907357F, G
fix: others.

V2.2.3 (2018-02-08)
---------------------------------------------
+add function:
change MQB mileage, and support cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only supports cars with cluster Continental/VDO. JCI type and virtual cockpit were not included.
2: please use the Xhorse upgrade kit, and select the 2.2.3 version firmware to update.

V2.1.8 (2017-07-18)
---------------------------------------------
1:Add EA111 UDS engine and check the oil level.
2:Add EA111 UDS genuine clear value adapts throttle.
3:Add UDS EPB set "VIN check" option.
4:Add GTI7.5 3Q0907338 parameter file.
5:Add Audi start-stop setting.
6:Add Audi A4(2017) sports needle.
7:Fix 4B unit connection bug.
8:Change some description of parameter files.

V2.1.6 (2017-05-15)
---------------------------------------------
1:Add magician/CC to replace the new comfort module.
2:Add MIB RCTA sensors setting.
3:Add some controller configuration parameter files.
4:Add SD card format &create folders.
5:Add recover coding after refreshing parameter files.
6:Fix other bugs.

V2.1.4 (2017-04-27)
---------------------------------------------
1:parameter refresh writes multi data blocks at one time.
2:Fix can't auto detect instrument type when reading PIN.
3:Add parameter files as below:
3.1: New Lavida steering assistance 180909144.
3.2: Skoda PQ superb Kessy.
3.3: Lamando Kessy three antennas.
3.4: VW411 Kessy 5K0959434H.
3.5: VW411 BCM light data. 5K0937087AG.
3.6: VW411 DCC 3C0907376x.
3.7: VW411 gateway(active/deactivate MKE).
3.8: VW411 DSP config data(fender/Dynaudio).
3.9: VW411CS headlight AFS.5M0907357G.
3.10:VW411CS front camera,3Q0980654.

V2.1.3 (2017-04-22)
---------------------------------------------
1:Add 2017 Sharan light data.
2:Add xenon static AFS.
3:Fix reprogram BCM firmware bug.
4:Fix reprogram UDS module bug.
5:Add parameter files as below:
5.1: lamando ACC 5Q0907572A/B/D.
5.2: lamando PDC 5Q0919294.
5.3: lamando PLA 5Q0919298A/D.
5.4: lamando Kessy 5Q0959435A.
5.5: lamando Gateway 5Q0907530N/Q.
5.6: Lamando rear left door 5Q4959393B/595B.
5.7: Lamando rear right door 5Q4959393B/595B.
5.8: VW37x headlight AFS 5Q0907357/A/D.
5.9: VW37x SWA 5Q0907686.
5.10: VW37x front camera 5Q0980653C/E/F.
5.11: VW37x steering assistance 5Q0909144P.

V2.1.2 (2017-04-13)
--------------------------------------------
1:Add PQ MIB clear DTC after updating firmware.
2:Add PQ MIB golden menu.
3:Add Sharan sliding door basic setting.
4:Add Lane keeps for 30 seconds.
5:Add 0 AM DSG Software Nr Index Version GKBS.
6:Add some parameter files.
7:Fix some bugs.


Package Included:

• 1pc x MM-007 Diagnostic and Maintenance Tool
• 1pc x Cable for V-A-G MQB works with Iscancar VAG-MM007
