CB088 - 7G-Tronic VGS2/3/4-0 NAG2 FBS3/FBS4 Direct CAN BUS Connection

CB088 - 7G-Tronic VGS2/3/4-0 NAG2 FBS3/FBS4 Direct CAN BUS Connection

Description:

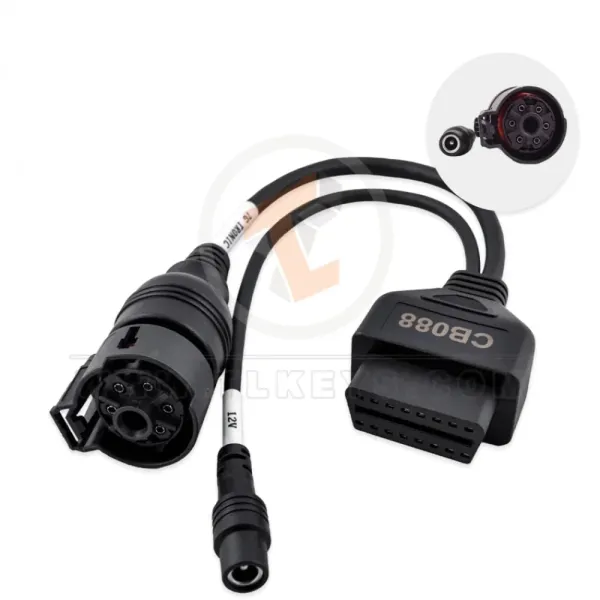

The CB088 cable is a connectivity solution by ABRITES for directly connecting to 7G-Tronic transmission control units VGS2/3/4-0 NAG2 (FBS3/FBS4 generation) via CAN BUS.

This cable connects the TCU with AVDI (ABRITES Vehicle Diagnostic Interface) via a DB25 connector and to a 12V power supply adapter, required for the procedure, via a DC connector.

Functionality:

• Connection between VGS2/3/4-0 NAG2 TCUs (FBS3 and FBS4 gen) via CAN BUS

Supported Vehicles:

• ALL Mercedes vehicles with:
  • VGS2 NAG2 TCU
  • VGS3 NAG2 TCU
  • VGS4-0 NAG2* TCU

Requirements:

To work with VGS2 NAG2 and VGS3 NAG2 TCUs, an AVDI with basic software and active AMS is required. A 12V power supply adapter is also needed.

Note: For working with VGS4-0 NAG2 TCUs, we recommend using the SET088 7G-Tronic VGS4-0 NAG2 FBS4 Solder-Free Connection Set, which contains the CB088 cable for guaranteed success and stable connection. In this case, you also need the MN035 VGS4-NAG2 FBS4 Virgin/Personalization via ABPROG software license.

The ABRITES Vehicle Diagnostic Interface (AVDI) with active Annual Maintenance Subscription (AMS) is required to use the full functionality of this product.
