GODIAG GT111 VW Audi CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key

GODIAG GT111 for VW, Audi, Skoda, Seat – CAN-Bus Dashboard IMMO Key Matching Test Platform (3rd & 3.5th Generation)

Description:

The GODIAG GT111 is a specialized test platform cable designed for IMMO key matching and dashboard data interaction on VW, Audi, Skoda, and Seat vehicles equipped with 3rd and 3.5th generation CAN-Bus dashboards. It features high-precision POGO PINs for stable and non-destructive data reading and writing.

Compatible Devices: This tool is compatible with a wide range of diagnostic and programming devices, including: HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, AUTEL, and more.

Key Features:

1. High-precision POGO PIN for dashboard data read/write.

2. Supports offline dashboard connection with conversion to standard OBD2.

3. Enables key chip and dashboard synchronization testing.

4. Built-in independent ignition switch.

5. Includes a key induction adapter with LED indicator.

6. Durable and stable POGO PIN design prevents cable damage.

Smart IMMO System Emergency Start Detection:

To identify the emergency start sensing area:

• Press the vehicle’s start button and bring the key identifier close to various areas.

• If the identifier’s light flashes or turns on, that area is the emergency start sensing zone.

• For smart keys with dead batteries, simply place the key in this zone to start the vehicle.

IMMO and Key Chip Function Testing:

Test Result Interpretations:

1. Flashes briefly and turns off – IMMO chip and key chip are functioning correctly.

2. Flashes continuously – Key chip is not matched with the vehicle; re-matching is required.

3. No flash – Possible fault in the vehicle’s IMMO system; further inspection needed.

Package Includes:

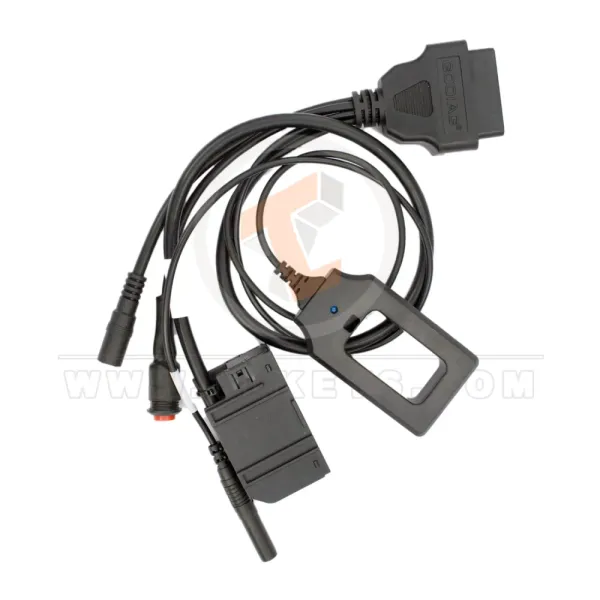

• 1x GODIAG GT111 for VW, Audi, Skoda, Seat – CAN-Bus Dashboard IMMO Key Matching Test Platform with POGO PIN
