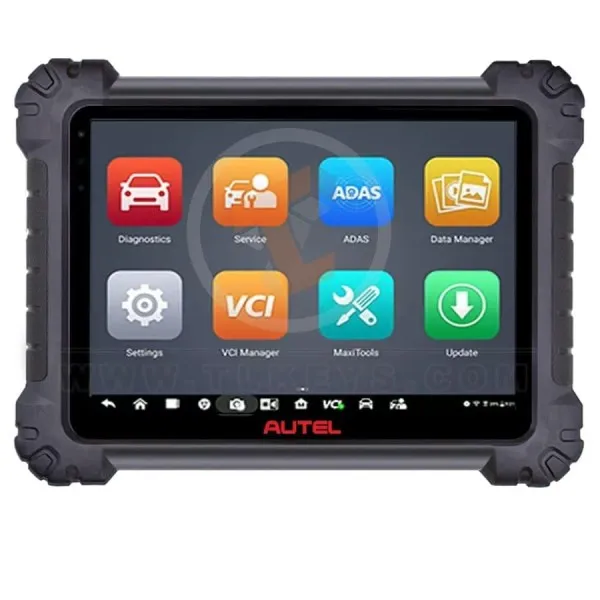

MaxiSYS MS909 Diagnostic Tablet Device with MaxiFlash VCI/J2534

Autel MaxiSys MS909 Scanner and Diagnosis Tool With MaxiFlash VCI/J2534 - 2 Years Autel Updates Subscription

Autel MaxiSys MS 909 Overview

MaxiSYS MS909 is an advanced Android diagnostic tester tablet with a 9.7-inch touchscreen, Octa-core processor, 128GB, and advanced VCI memory that supports the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols.
The MS909 features structural mapping capability for supported vehicles and an intelligent car diagnostic tool feature that guides the technician from car code scanner to repair to car tester with detailed repair information and illustrations.
The MS909 features a rechargeable lithium battery that provides 8 hours of continuous use and front and rear cameras.

Autel MaxiSys MS 909 Specification

• Autel updates provide the latest OE-level coverage for more than 80 domestic, Asian, and European American vehicles, including supercars.
• Exceptional OE-level functionality from comprehensive OBDII diagnostics and services to advanced ECU coding and programming
• Automatic system and software updates with instant message notifications over the Internet
• Interactive data logging sessions allow direct contact with Autel Support for direct troubleshooting of diagnostic machine errors and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer information, and vehicle records well-organized
• Cloud-based Data Manager saves customer and vehicle records, car scanner data, and technical notes

909 Autel Attributes

Operating System	Android 7.0 / Android 10.0
Processor	Samsung Exynos8895V OCTA-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset Jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with a temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Dimensions LxWxH	15 x 15 x 15 inches
Screen Size	10 Inches
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Why should to Buy Autel MaxiSys MS909?

Intelligent Diagnostic Tool
Autel scanner MS909 is one of Autel's most advanced Ultra smart diagnostic Ultra series, same functions as Autel MS919.
The MaxiSys MS909 Scanner offers the latest hardware, smart diagnostics with a unique repair assistant, topology mapping, DTC analysis, TSBs, repair advice to provide step-by-step repair guidance to technicians, advanced ECU programming and coding, directional control, protocols coverage optimized for the newer vehicle.



Improve Your Shop Repair Efficiency by 70%
Autel MS909 Diagnostic Tool with smart diagnostics and repairs function that goes beyond the original factory can take your repairs to a whole new level! Repair Tips - Details of troubleshooting steps.

Advanced ECU Programming & Coding
Autel MaxiSys MS909 Scanner upgraded from MK908P / Elite / Elite 2. Advanced online ECU programming can replace existing software/firmware in ECU, and program new ECUs For BMW & Benz-specific software fixes - Driving Performance Control.
- Online coding for Benz / BMW / Audi / Porsche / VW / Nissan / Nissan-GTR / Infiniti / Hyundai Skoda / Seat / Bentley.



Revolutionary Topology Module Layout
The technician usually complains that the traditional diagnostic tools only display the faults in the form of a list, and it is difficult to find the specific problem module in a short time.
Autel MS909 chassis module layout can meet your needs.
With the chassis module, you can see the communication structure of each ECU globally, the color-coded chassis displays complete systems, easier to locate faults and solve problems quickly.

36+ Maintenance and Service Functions
Such as the MS919 / Ultra Autel MS909 autel scan tool with more than 36 maintenance and service functions to provide a comprehensive solution.
Including EPB, Oil reset, DPF, SAS, TPMS, IMMO keys, BMS, Injector, Throttle, Suspension, Brake Bleeding, TEC-Learn, Headlight, WIN DR ROOF, Seat, Lang change, CHG tire size, Reset Set the airbag, Trans adaptive, crankshaft, cylinder, etc. position sensor learns.

Full Bi-Directional Control / Active Tests
Autel MS909 Tablet Diagnostic car scanner tool includes all diagnostic functions and special service functions of MK908 / MK906BT / MS906BT / MS906S / MS906 Pro / MP808K / MP808BT such as Bi-directional control. With bi-directional control ability, to control various car parts and components such as fuel pumps, radiator fan, throttle, mirrors, interior and exterior lights, horn, wipers, headlights, windows, etc. to test their functions.

Compatible With J2534
more protocols, and newer vehicle coverage Autel MaxiSys MS909 with updated J2534 programmer (worth 1299) that supports D-PDU, RP1210, CANFD, J2534, and DoIP protocols.
Wider protocol compatibility allows MS909 to work on 99% of vehicles up to 2022 in the market such as BMW, 5th generation Land Rover, new Volvo original software, GM, Ford, Chrysler, Volkswagen, Mercedes-Benz, Ferrari, Porsche, Toyota, Nissan, Honda, Mitsubishi, Mazda, Subaru, Isuzu, Kia, etc.

HIGHEST AND MOST POWERFUL HARDWARE
Speaking of hardware, the Autel MS909 is equipped with the latest Autel hardware.
10 Inch Touch Screen Tablet with Android 7.0 OS Powered by Octa Core Processor (2.3GHz Quad + 1.7GHz Quad), 1536 x 2048 TFT-LCD Ultra HD Quality, 128GB Built-in Memory, 5MP Front, and Back Camera, 16MP MP, 15000mAh battery (super long 8 hours of continuous use), faster and stable dual Wi-Fi to provide diagnostic guidance and test components to confirm repairs.



New Features
Battery Test, Remote Expert, WI-FI Print and Cloud Service (MV105), Cloud Report Management, SCAN VIN/License, Pre and Post Scan, Wi-Fi Print Functions, etc.
With continuous updates, there will be more extended functions to help you use Autel MS909 more easily.
With MS909, you will get more surprises.

Autel MaxiSys MS909 highlights:

Added 10+ New Advanced Functions for 2022:
Support Diagnostic Functions for McLaren/Tesla, Battery Test (need work with BT506), Remote Expert, Endoscope (need work with MV105/MV108),
Cloud Report Management, SCAN VIN / License, before and after scanning functions, Wi-Fi printing, etc.
Smart Diagnosis:
Such as Autel MS919 / Ultra. The Autel MS909 has all the capabilities of our new software specialists that we called Repair Assistant,
DTC Analysis, TSB, Structural Mapping, and Related Cases.
VAG Guided Function: On-screen operating instructions are provided for some complex functions, which simplifies the diagnostic process and shortens the diagnosis time.
The steering function is compatible with VW, Audi, Skoda, Seat, etc.

Autel MaxiSys MS909 Fast Scanning

New topology module list CAN BUS Tree
Set color-coded module status per page
Improved DTC-guided auto-scan module list
Review unit DTCs from Auto Scan in greater detail
New feature - barcode or text recognition
Scan vehicle ID via camera for identification - Scan vehicle ID easily via camera for identification


Autel MaxiSys MS909 Powerful Hardware

• Octa-Core processor / 128 GB memory
• Larger 10-inch heavy-duty touchscreen
• New multiplayer for ANDROID 7.0 OS
• Front and rear cameras with a resolution of 5 megapixels and 16 megapixels
• New MaxiFlash VCI

Autel MaxiSys MS909 Advanced ECU Coding

Online ECU Programming: For Benz / BMW only:
The Programming and Coding function is used to re-flash vehicle control units, allowing you to update the vehicle's computer software to the latest version,
As well as reprogram adaptive data from specific components after repairs have been made or substitution.
J2534 ECU Programming: For makes and models that support the J2534 protocol (OEM programming apps needed)
Replace existing software/firmware in the ECU; New ECU Program.
Fixes vehicle drivability, fuel efficiency, power loss, fault codes, and durability issues.
Note When on-board reprogramming, please ensure that the vehicle battery is fully charged.


Upgraded version of MK908P / MS908S PRO / Autel Elite

10,000+ Wide Vehicle Coverage

The Autel MS909 comes with the latest software to support vehicles through 2021 and some through 2022.
Note: All functions and services are not compatible, please send us your VIN information to check compatibility before purchasing

Diagnostics of all systems at the OE level

The Autel MS909 Diagnostic Tablet is Autel's most advanced scanner, it can perform OE level all systems diagnostics on 95% of post-2000 vehicles,
And 85% of post-2019 vehicles to car code readers and clear codes, view live data, perform active tests, and retrieve ECU information.
It works on more than 80 domestic, European, and Asian American cars.
MS909 has the best vehicle coverage Autel has yet to offer, covers 95% of post-2000 vehicles, and 85% of post-2019 vehicles, and is growing rapidly with frequently released software updates.

Full Bi-Directional control

Bidirectional control of the ECM in component testing allows the Autel Elite to send control commands to operate the vehicle's systems.
ECU Coding allows you to update the on-vehicle computer software to the latest version, and override adaptive data for specific components after repairs or replacements have been made.
The MaxiSys MS909 Bidirectional Control Scan Tool can perform active tests on various systems or components such as valves and pumps to check if they are in good working order,
allowing for more efficient and effective repairs.

Advanced Service Option :

Special functions:

1. Oil Reset: Close the oil service light and reset the service mileage and mileage after replacing the engine oil
2. DPF Service: Supports forced fuel injector regeneration and adjustment
3. ABS Brake Bleeding: Help to get a firm brake pad after the air is exhausted
4. ELECTRONIC PARKING BRAKE RESET: Resetting the new electronic parking brake resets the braking wheels safely again
5. SAS Reset: Clear the memories of the previous steering angle sensor and store the replaced one
6. BMS Service: reset the battery management system
7. And more...

1 Year Free Software Update

Autel MS909 comes with 1-year free software updates to enjoy quick and easy software update procedures for upcoming new features, coverage of car models in its fold

BT and Faster Dual Enhanced Wireless Connection

Innovative dual wifi provides a faster and more efficient user experience.
Wi-Fi calling is an advanced function of VCMI speed connection.
Since the Wi-Fi connection supports 5G, the MaxiSys MS909 tablet and the VCI share a faster and more stable connection when using this connection method.
The tablet can be operated up to 50 meters away from the MAXIFLASH VCI when attached to the vehicle.

Autel MaxiSys MS909 FAQ

Question: What is the difference between VCMI and J2534?
Answer: Autel VCMI has more functions than J2534.
Besides serving as a diagnostic tool, the advanced Autel MaxiFlash VCMI 5-in-1 also works as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
It is more advanced than J2534 which with its three diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools, and diagnose and program more vehicles than J2534 programming tools.

Question: After the subscription expires, can I still use the Chassis Module Diagram with Smart Diagnosis?
Answer: Yes, you can still use Chassis Module Layout with Smart Diagnosis after the subscription expires.

Question: Can the Autel Ultra software keys? How do you check compatibility?
Answer: Yes, the Autel Ultra comes with a software keys function. However, it can not work on all cars.

Question: Can it support a multimeter?
Answer: Yes. naturally.

Question: Does Maxisys ms909 program an ECU?
Answer: Autel MaxiSys MS909 software can support ECU programming functions.
Online ECU Programming: For Benz / BMW scanner vehicles only
J2534 ECU Programming: For makes and models that support the J2534 protocol (OEM programming apps needed).

Question: What adapters does it include?
Answer: The adapters in the Autel MaxiSys MS909 package come with the mains cable that can be connected to an OBD II / EOBD compliant vehicle, and the OBD I-Type adapters, respectively, are Benz-14, Chrysler-16, BMW-20, Nissan-14, and Kia-20, Fiat-3, PSA-2, Mazda-17, VW/Audi-2+2, Benz-38, Mitsubishi/Hyundai-12+16 plus Autel USB Cable V2, AC/DC External Power Adapter, scissor cable, light fuse x2.0

Question: Does the ms909 support the same smart diagnostics as the Ultra?
What other features have been added to the Autel Maxiysy elite?
Answer: Autel MaxiSys MS909 comes with the same smart diagnostic function as Autel MaxiSys Ultra.
Smart Diagnosis is specifically designed to guide the diagnostic process.
Smart Diagnostics offers various maintenance solutions including chassis, TSB analysis, DTC analysis, repair assistance, repair tips, how-to videos, etc.,
which mostly makes the diagnosis easier and saves time.
Autel MaxiSys MS909 is the most cost-effective diagnostic tool, and it differs only slightly from Autel MaxiSys Ultra in terms of software function and hardware configuration.
Compared with the Autel MaxiSys Elite diagnostic tool, the Autel MaxiSys MS909 scan tool has more functions like smart diagnosis, ECU programming, software updates, and so on.

Question: I have to change the PCM on my Chevy Aveo.
Can this auto scanner program the new one?
Answer: Autel MaxiSys MS909 supports ECU programming functions.

Question: What is the storage capacity of this scanning tool and does it have an external micro SD card
Answer: The Autel MaxiSys MS909 scanner comes with 4GB of RAM and 128GB of internal memory, but it does not come with an external micro SD card.
You'll need to purchase an SD card separately if you need it, and it supports up to 256GB.

Question: So is this for all the years how far back can it go?
Answer: Autel MS909 is compatible with most 12V vehicles on the market after 1996 and vehicles with updated OBD2 and EOBD protocol.
Autel MS909 Diagnostic Tool covers more than 80 US, Asian, and European vehicle brands and solves 98% of diagnostic problems.
The update is used to upgrade software, fix bugs, and add more vehicle models to improve MS909.

Question: What is the difference between Autel ms908p?
Answer: The Autel MaxiSys MS909 is an upgrade to the Autel MS908P software, which gives your vehicle intelligent one-stop diagnostics designed for high-end Autel scanners.
MaxiSys scan tool provides step-by-step instructions and comprehensive solutions including chassis, TSB analysis, DTC analysis, repair help, repair tips, how-to videos, etc., making you practice diagnosis like a master.
Autel MaxiSys MS909 comes with an advanced configuration than Autel MS908P, which improves diagnostic efficiency.
Undoubtedly, the Autel MaxiSys MS909 Scanner is the most cost-effective diagnostic tool and features more functions such as smart diagnosis, ECU programming, software autel updates, etc.

Question: Does the MS909 have Protocol D-PDU?
Answer: Yes

Autel MaxiSys MS909 Package Contents

• Autel MaxiSys MS909 main unit
• MaxiFlash VCI connector
• Main OBD cable v2.0
• USB cable 2.0 V2
• AC/DC adapter (12V)
• Cigarette lighter
• Lighter fuse (2pcs.)
• Clipper cable
• Quick reference guide
• Packing list
• Soft cloth
• Carrying case

* Software subscription with 1-year free software updates.
