SKU: TL33986
Autel MaxiIM IM608 PRO is the most advanced and all in one key programmer and diagnostic software that combines advanced key programming Diagnosis. With 2 years update
$3133.50
- SKU: TL33986
-
Category:
Key Programming Diagnostics Tools
- MANUFACTURER: Autel
Attributes
weight | 8 KG |
---|
Videos
MaxiIM Autel IM608 PRO OBD2 Diagnostics Software And Key Fob Programmer With JVCI Tool Bundle With 1 YEAR UPDATE
Note1: 2 Year update subscription is included with the device.
Note 2: XP400 Pro can be purchased separately.

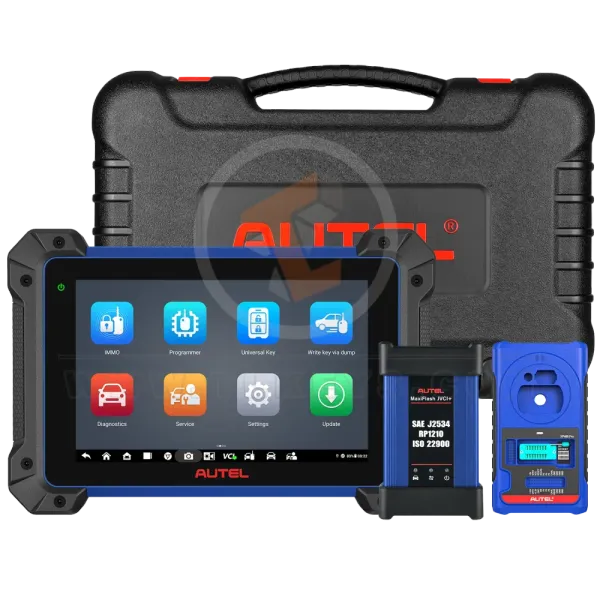

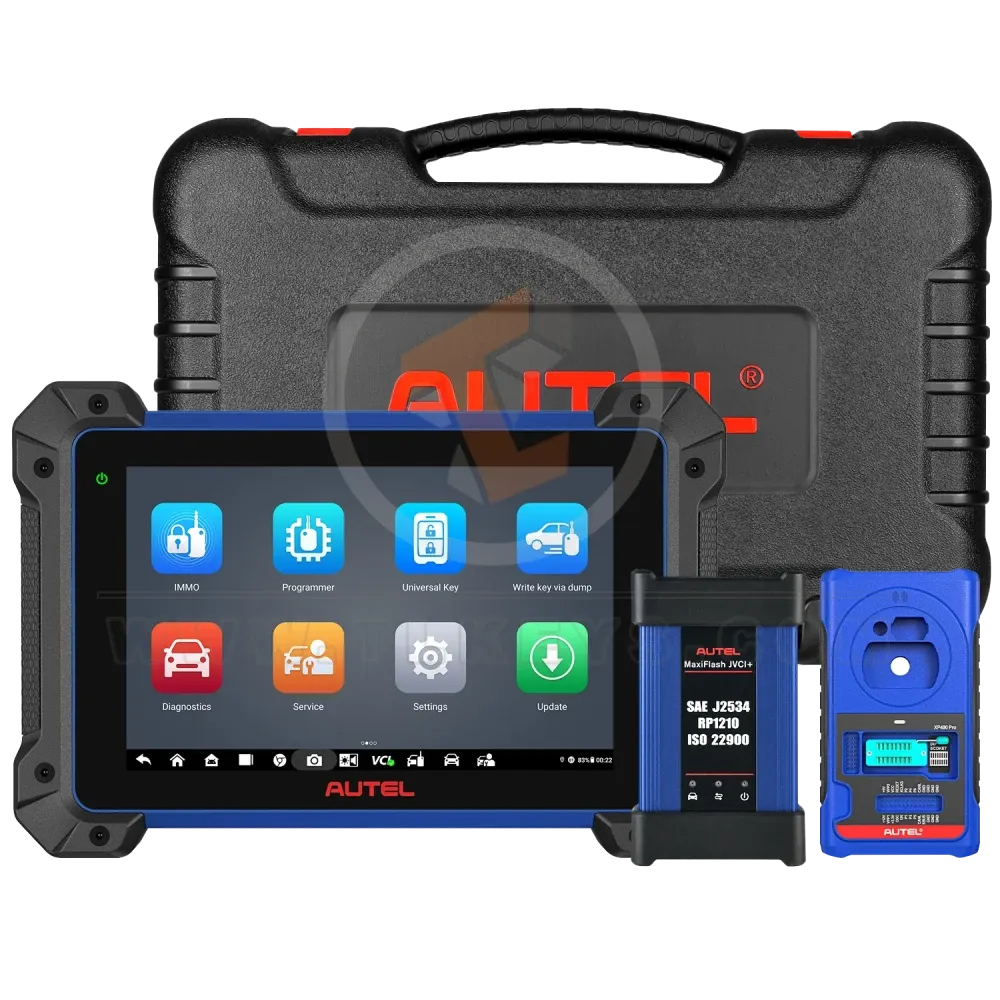

MaxiIM Autel IM608 PRO is the most advanced and unique all-in-one key programming tool and diagnostic software tool that combines advanced key programming,
All advanced systems and services diagnostics in a 10.1-inch touchscreen Android tablet.
It is equipped with XP400 PRO autel key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and key programming tool functions.
Autel IM608 PRO provides you with all special functions to quickly diagnose all modules the majority of the makes and models on the market.
It is the unprecedented key programming tool and diagnostic tool that you ever wanted.
AUTEL MAXI Autel IM608 PRO Technical Specification
- Samsung Exynos 5260(2GB ROM)
- 10.1”1024x768 LCD capacitive touchscreen
- Internal reliable 64GB Memory
- Android Operating System for fast boot-up and multitasking
- The powerful combination of key programming/all system diagnostics/advanced maintenance services
- Smart Mode for guided and automated key learning
- Expert Mode for advanced key learning
- Read PIN/CS (all key lost), key generation, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Transpronder read/write, EEPROM/MCU read/write
- Powerful OE level diagnostics Software for more than 80 US, Asian, and European makes and models
- Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS
AUTEL MAXI Autel IM608 PRO POWERFUL 31+ SERVICE HOT FUNCTION
Operating System | Android™ 4.4.2, KitKat |
Processor | Samsung Exynos Hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
Memory | 2GB RAM & 64GB On-board Memory |
Display | 10.1-inch LED capacitive touch screen with 1920x1200 resolution |
Connectivity |
Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
Power and Battery |
15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage | 12 V (9-24 V) |
Power Consumption | 6.5 W |
Operating Temp | 0 to 50°C (32 to 122°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |
Dimensions (WxHxD) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
Weight |
NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.) |
Protocols
|
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middle speed, Low-speed, and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
Comparison Between MaxiIM Autel IM608 PRO and MaxiIM Autel IM508
Autel IM508 | Autel IM608 PRO | |
COMPARISON CHART | ||
Smart Mode (Guided and Automated Key Learning Function) | Standard Functions | Standard Functions |
Expert Mode (Advanced Key Learning) | Standard Functions | Standard Functions |
Auto Detect Make/Model/Year/System | Standard Functions | Standard Functions |
Read PIN (All Key Lost) | Standard Functions | Standard Functions |
Key Generation | Standard Functions | Standard Functions |
Key Learning | Standard Functions | Standard Functions |
Remote Learning | Standard Functions | Standard Functions |
IMMO ECU Reset/Adaption | Standard Functions | Standard Functions |
IMMO ECU Refresh/Coding | Standard Functions | Standard Functions |
Backup/Restore IMMO Data | Standard Functions | Standard Functions |
BENZ 3rd Generation IMMO Add Key, All Key Lost via OBD | Available when connected to XP400 Pro | Standard Functions |
Read/Write/Erase Benz ESL_W209 / W906 Data | Available when connected to XP400 Pro | Standard Functions |
Benz OE NEC Key Learning | Available when connected to XP400 Pro | Need extra adapters |
AUDI Q5/A4/A5 2015-2017 Key Learning via OBD | Available when connected to XP400 Pro | Need extra adapters |
Volkswagen MQB Key Learning via OBD | Standard Functions | Standard Functions |
BMW diagnostic software for cars FEM/BDC Key Learning and Adaption | Standard Functions | Standard Functions |
BMW CAS4 Key Learning | Available when connected to XP400 Pro | Standard Functions |
BMW EWS3 Key Learning | Available when connected to XP400 Pro | Need extra adapters |
2015-2018 Land Rover&Jaguar Write Key via Dump | Available when connected to XP400 Pro | Standard Functions |
Volvo Smart Key/Fobik Smart Key Learning | Available when connected to XP400 Pro | Standard Functions |
Volkswagen/AUDI/BMW diagnostic software for cars Key Unlock | Available when connected to XP400 Pro | Need extra adapters |
Programming | ||
EEPROM Read/Write | Basic | Advanced |
MCU Read/Write | Basic | Advanced |
Key Programming | Basic | Advanced |
Mercedes Infrared Key Read/Write | Available when connected to XP400 Pro | Standard Functions |
Remote Frequency Detection | Available when connected to XP400 Pro | Standard Functions |
OE-Level Diagnostics Software | ||
All Systems for Over 80 Makes | Standard Functions | Standard Functions |
MaxiFlash JVCI (J2534 ECU Reprogrammer) | Standard Functions | |
Advanced Service Functions | ||
Oil Service Reset | Standard Functions | Standard Functions |
Parking Brake Pad Relearn After Replacement | Standard Functions | Standard Functions |
Steering Angle Sensor Relearn | Standard Functions | Standard Functions |
Battery Registration and Reset | Standard Functions | Standard Functions |
Diesel Particulate Filter Regeneration | Standard Functions | Standard Functions |
Tire Pressure Monitoring System | Standard Functions | Standard Functions |
Active Test | Standard Functions | |
ECU Coding | Standard Functions | |
Complete Service Functions | Basic | Advanced |
Features | ||
Built-in Rechargeable Li-ion Battery | 5000 mAh | 15000 mAh |
Internet updateable | Wi-Fi | Wi-Fi |
Multilingual Support | Standard Functions | Standard Functions |
Limited Year Warranty | Standard Functions | Standard Functions |
Touchscreen 7-inch 10.1-inch | 7-inch | 10.1-inch |
Memory | 32 GB | 64 GB |
Processor | Quad-core processor | Hexa-core processor |
Camera | 8.0 Megapixel | |
Resolution | 1024x600 | 1920x1200 |
