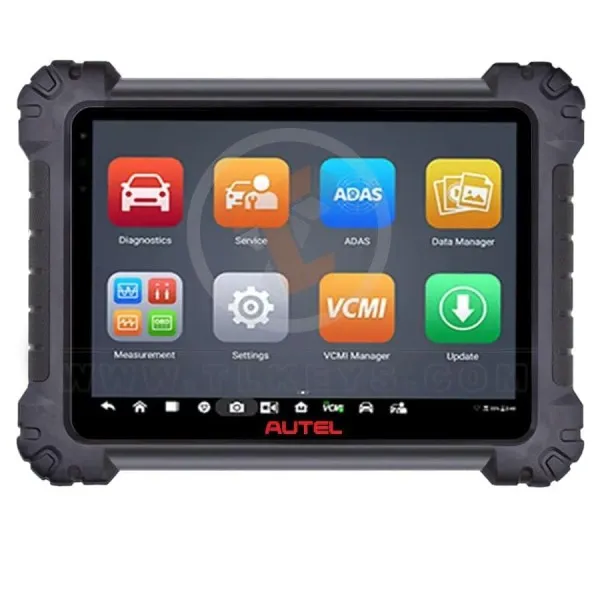

MaxiSYS MS919 OBDII Bi-Directional Diagnostic Scanner Device

Autel Maxisys MS919 Scanner Intelligent Diagnostic Tablet with 5-in-1VCMI, 38+ Service, ECU Programming & Coding

What is Autel Maxisys MS919 Scanner:

MaxiSYS MS919 is an advanced Android diagnostic tablet with a 9.7-inch touchscreen, Octa-core processor, 128GB memory, and MaxiFlash VCMI.
The Autel MS919 is a 5-in-1 communication and test tool that provides vehicle-to-tablet wireless vehicle communications and supports the latest DoIP, D-PDU and Mega CAN vehicle communication protocols.
VCMI works as a 4-channel oscilloscope, waveform generator, multimeter, and Can BUS tester.
The MS919 features Dynamic Chassis Module Mapping for supported vehicles and Smart Diagnostics that guides the technician from code to repair to test with detailed repair information and illustrations, oscilloscope test guides, and a waveform library.
The MS919 features a rechargeable lithium battery that provides 8 hours of continuous use and front and rear cameras.

What updates happened in January 2022:

GM: Adds E.CU information, read codes, erase codes, live data, active test, and special function for 33 models in 2022 including the Cadillac CT4, Buick Envision, and Chevrolet Blazer.
Adds 5 hot special functions: auto on/off, shift mode, A/C, rain/light sensor, and EGR.
Toyota: Adds basic functionality for 41 models in 2021 (including Yaris and 4Runner) and 9 models in 2022 (including Corolla and Hilux).
Adds 3 types of service functions: ACC, A/C, and HV battery.
VW: Adds diagnostic supports for models including ID.6 X 2021, ID.6 Crozz 2021, Audi Q4 e-Tron 2022, and CP - Tarek 2021.
It updates the basic functions and special functions (including resetting the oil, EPB, and Odometer), supporting models up to 2022.
Adds 258 direct directed functions including battery, lamp washer, and transport mode.
Adds topologies for brands including Volkswagen, Audi, Skoda, and Seat.
JLR: Adds basic functionality to 2022 PHEV models (Jaguar XE and Jaguar XF) and 2021 PHEV models and later (Discovery Sport and new Range Rover Evoque).
Adds 35 special functions including Power Supply Service Mode Diagnostics, Purge Valve Self-Test, Fuel System Leak Check (DMTL), and Fuel Tank - Smoke Test for 2017 and onwards models.
Nissan: Adds basic functionality for 23 models in 2021 (including Kicks, Versa, and Infiniti) and 10 models in 2022 (including Armada, Pathfinder, and Frontier).
Adds 1310 Special Function DTCs including P0440/P1440 - EVAP (small leak), P1274 - Air-Fuel Ratio Sensor 1, and P0134 - Heating Oxygen Sensor (HO2S) 1. Adds Hot Special Function: HV Battery.
Supports functions including Li-ion battery capacity balancing, battery capacity gradual clear loss, and battery charge/discharge information data.
BMW: Improves core functionality, models supported until July 2021.
Adds 7 hot special functions: Transmission Mode, HV Battery, ACC, A/C, Rain/Light Sensor, EGR, and FRM Reset.
Adds basic functions and special functions for models with 4 body types including G22 and G82.
Supports E.CU programming version for models up to March 2021 with F/G chassis.

Autel Maxisys MS919 Features:

• Autel Updates provides the latest OE-level coverage for more than 80 domestic, Asian and European American vehicles, including supercars
• Exceptional OE-level functionality from comprehensive OBDII diagnostics and services to advanced ECU coding and programming
• Automatic system and software updates with instant message notifications over the Internet
• Interactive data logging sessions allow direct contact with Autel Support for direct troubleshooting of diagnostic errors and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer information, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data, and technical notes

Autel Maxisys MS919 Specifications:

Operating System	Android 7.0 / Android 10.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera (rear)	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with a temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Why You Must Buy Autel Maxisys MS919 :

Autel New Autel MaxiSys MS919

The newly released Autel Scanner 2023 version of the Autel MaxiSys MS919 is a more cost-effective tablet scanner that has covered all the functions that MK908P, MS Elite, and MS909 are equipped with.
It is a diagnostic tool, especially for professional mechanics and auto repair chains since it covers 99% of vehicles worldwide.
The updated MS919 has featured all the features like 5-in-1 VCMI, OEM technical service bulletin, more than 10 advanced functions, and technical support.

MS919 5-in-1 VCMI, same as Autel Ultra

MaxiFlash VCMI is a small but complete and reliable microcomputer with powerful hardware accessories such as an oscilloscope, waveform generator, multimeter, and CAN BUS tester.
It also supports multiple transmission protocols simultaneously such as KPW, CAN, CAN-FD, DoIP, etc.
Only two Autel discs support VCMI and MS919 can save you $1000 compared to MS Ultra!

Autel MS919 intelligent diagnosis and 38 special functions

As the most ambitious scanner ever developed by Autel, the MS919 is designed to diversify the knowledge pool of mechanics, simplify the diagnostic process and bring out the potential of technicians.
The newly added Repair Assist and TSB can merge and prioritize all detected fault codes.
It also provides related repair tips, videos, and cases for your reference.
The 36+ special functions can be the perfect solution to most problems.

MS919 D-PDU, RP1210, J2534

To help you deal with more models that support different interface standards, we've proactively followed in the footsteps of the times and compliant our D-PDU, J2534 (SAE J2534-1 and J2534-2).
and RP1210 to help you perform diagnostics and programming for passenger cars and commercial vehicles.
MS919 supports not only Volvo and Land Rover original software, but also Volkswagen, Mercedes-Benz, and 20 other VC car models.

10+ Advanced Functions

The Autel MS919 scanner has more than 10 highly equipped functions.
For example, Active Test can test specific subsystems for in-depth diagnosis, Guided Function provides integrated troubleshooting, IMMO Service can disable lost car keys and program replacement key fobs, etc.
Besides, there are some other useful and cool functions like full system diagnosis, retrofit guidance, personalized configuration function, etc.

36+ Maintenance Jobs

With professional-level maintenance features, the Autel MaxiSys MS919 is the diagnostic tool that can deeply and comprehensively address all your vehicle maintenance needs.
Maintenance features supported by the MS919 include but are not limited to Oil Reset, Battery Register, EPB, Key Programming, Transient Adaptation, Brake Bleed, DPF, Injector Coding, VGT Turbo Calibration, SAS, ABS Initialization, and reset the throttle, and calibrate the suspension.

ECU Programming for BMW & Benz

To keep pace with the exponential upgrade speed of vehicles, the software update is essential to improve vehicle performance such as drivability, fuel efficiency, reduced power loss, and erasing fault codes.
The ECU Programming feature helps you to download the latest software version online by accessing the Internet and reprogramming the latest version in the vehicle's ECU.
Almost all common units can be programmed, such as DME, EGS, CAS, DSC, EPS, FEM, ZGM, etc.

Why is Autel MSxisys MS919 the Best Smart Diagnostic Scanner?

1. Autel Scanner MAXISYS MS919 is the updated version of MK908 Pro, MS908S Pro, MS Elite, MS Elite II, MS909
2. 5-in-1 VCMI with extension for devices such as oscilloscope, waveform generator, multimeter, and CAN BUS tester.
3. Smart Diagnosis: OEM Technical Service Bulletin, DTC Analysis, Repair Assistant.
4. MS919 also supports 3 major diagnostic protocols: D-PDU, J2534 (SAE J2534-1 and J2534-2), and RP1210, which covered 99% of vehicles in the world.
5. MaxiSys 919 is powered by a Samsung Exynos8895V Octa Core (2.3GHz Quad Core + 1.7GHz Quad Core) processor with 4GB RAM and 128GB ROM, equipped with a 9.7-inch TFT-LCD capacitive touchscreen with a resolution of up to 1426 x 2048 and Android OS 7.0.
6. Advanced ECU coding and programming of Benz, BMW, VW, Audi, Porches, Renault, Toyota, Nissan, Peugeot, and Citroën vehicles.
7. +36+ special functions meet all your needs. Such as Oil Reset, EPB, TPMS, BMS, ABS Bleed, DPF Regeneration, IMMO Keys, Injector Coding, SAS Calibration, Throttle Adaptation, Gearbox Matching, SRS, etc.
8. More than 10 advanced functions are bundled into MS919. Active testing, VAG-oriented function, customization, retrofit and modification, key programming, etc.

2023 Autel Intelligent Diagnostic Scan Tool Autel MaxiSys MS919 Main Services

ECU Coding and Programming

Online & Offline ECU Programming
MS919 allows you to pass through blocks to access the OE ECU data packet and tune the ECU as you like.
Program rewriting, ECU upgrade, upgrade, ECU matching, replacement, etc.
For the common interface standard, D-PDU, J2534, RP1210, and MS919 also support this.
For Example
Online programming for Mercedes Benz (204, 212, 207, 463), online SCN for (222, 212, 204, 205), ECU coding, and programming for most models.

Online and offline ECU coding
It's a key to opening the portal to a whole new world. MS919 enables you to set the ignition time, oil injector, air intake, and drive system controlled by software.
In any case, it's time to open the cuffs and stop being beholden to OE settings.

• Online Coding, Hidden Flashing, and Modification for Volkswagen and Audi.
• Online Coding and DTC Instruction (MS919 can suggest step-by-step to clear DTC) for Porsche.
• Online coding for Renault
• Customization for Toyota, Nissan, Peugeot, Citroen

5 in 1 VCMI and Intelligent Diagnosis:

Oscilloscope, Waveform Generator, Multimeter, OBDII Digital Can Check, VCI VCMI
With MaxiSys Flash's strong compatibility with D-PDU, J2534, and RP1210 interface standards, it can perform more diagnostics and programming for passenger cars and CVs than other best-selling tablet scanners in the US market.
It supports the OE software of Volvo, Land Rover, VW, Mercedes, and more than 20 CV models.
Not to mention diagnostic protocols, MaxiSys also supports comprehensive hardware extensions such as oscilloscope, waveform generator, multimeter, and CAN BUS tester.
With the help of those small practical tools, the Autel tablet pc can help you to track down problems easily and solve them better.

1. Technical Service Bulletin - Contains recalls related to DTC, TSB, and OEM campaigns.
2. DTC Analysis - Provides repair help information related to the fault code.
3. Repair Assistant - Intelligently prioritizes DTC and directs the user to the appropriate repair.

View Topology Tree:

Solve complex problems with one click, making your work easier.
The newly added display topology makes displaying information more intuitive and systematic.
You can zoom in and out to view the communication structure between the units. The MS919 can display fault codes and access the system to perform functions.
Here are the supported display topology brands:
BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.

10 advanced features for professionals

Active Testing: The best way to target problems before you take off control modules or components.
The Autel MS919 will be the leader rather than the receiver of ECU commands.
The following are the modules that you can control with the help of the MS919:
power windows, heated rear windows, xenon headlights, wipers, fuel burner heater, transfer case, seat memory, electronic throttle, etc.
Function-oriented for VAG:
For VAG vehicles, you will need to select a channel and enter the login password when performing the diagnosis.
MS919 will save you the trouble of searching for information and will automatically enter it directly
Hidden Flash Functions:
It helps you activate some hidden car functions, such as auto mirror folding, auto on/off, one-touch window permanent closing, etc.
IMMO:
IMMO can disable the lost car key and program the replacement key.
One or more alternate key fobs can be programmed.
Retrofitting and Modification:
It is a function that helps you to modify the hardware and flash the software.
For example, the car is not equipped with electric rear-view mirrors in the original factory, so the automatic mirror folding function is not possible.
After adjusting the hardware - installing the electric rearview mirror, and flashing the console, you can successfully perform the function.

More than 38 special functions for 99% of vehicles, meeting all your needs:

This auto scan tool comes with over 38 service functions and can be continuously updated with more functions and wider vehicle coverage to meet all your needs for various scheduled repairs or maintenance.
Oil Reset, EPB, TPMS, BMS, ABS Bleed, DPF Regeneration, IMMO Keys, Injector Coding, SAS Calibration, Throttle Adaptation, Gearbox Matching, SRS, etc.
Oil Reset:
Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
EPB Reset:
Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, adjusting the brakes after disc or pad replacement, etc.
SAS Calibration Reset:
Calibrate the steering angle after replacing the steering angle position sensor, steering system mechanical parts, etc.
Stores the current steering wheel position as the straightforward position in the steering angle sensor and clear error memory.
DPF Renewal:
Perform the regeneration procedure as it is known as the DPF cleaning process to clear particles from the DPF filter through a continuous combustion oxidation mode to stabilize the filter performance.
Suspension:
Adjust the vehicle height sensor to calibrate the level when replacing the vehicle height sensor or air suspension control module.
ABS Bleeding:
Bleed brake system air to restore ABS brake sensitivity.
BMS Service:
Re-match the controller and actuation sensor to detect the battery more accurately, clear the original low battery information, and prevent the related controller from detecting the wrong information.
TPMS Reset:
Quickly look up tire sensor IDs from the vehicle's ECU, and perform a TPMS test and sensor replacement.
Injector Coding:
Code the injector after replacing or adjusting it to more accurately correct the fuel injection volume per cylinder.

How does the Autel MS919 differ from the Elite and older MS908s:

1. Larger memory: 128 GB memory
2. VCI interface with updated J2534 includes an oscilloscope, waveform generator, multimeter, and CAN bus tester
3. Module list of M topology can be bus tree
4. faster processor
5. Does not include the docking station
6. Not including early OBD-II adapters!
7. Android 7.0 operating system
8. 1-year update subscription and warranty (both can be renewed)

Compare Between MAXISYS MS909 VS MAXISYS MS919 VS MAXISYS ULTRA

	MaxiSYS MS909	MaxiSYS MS919	MaxiSYS Ultra
HARDWARE
Connection	Bluetooth MaxiFlash VCI Including Latest Protocols	Bluetooth MaxiFlash VCMI Including Latest Protocols	Bluetooth MaxiFlash VCMI Including Latest Protocols
Screen	9.7-Inch Touchscreen 1536 x 2048 DPI / TFT-LCD Asahi Glass	9.7-Inch Touchscreen 1536 x 2048 DPI / TFT-LCD Asahi Glass	12.9-Inch Touchscreen 2732 x 2048 DPI / TFT-LCD Corelle Glass
Battery	15,000 mAh	15,000 mAh	18,000 mAh
Processor	2.2GHz + 1.8GHz OCTA-CORE	2.2GHz + 1.8GHzOCTA-CORE	2.2GHz + 1.8GHz OCTA-CORE
Memory	128GB SSD / 4GB RAM	128GB SSD / 4GB RAM	256GB SSD / 4GB RAM
Camera	16MP Rear / 16MP Front	16MP Rear / 16MP Front	16MP Rear / 5MP Front
Docking Station	—	—	Included
SOFTWARE
Operating System	Android 7.0	Android 7.0	Android 7.0
Software Updates	1 Year Free Update Via Wi-Fi	1 Year Free Update Via Wi-Fi	1 Year Free Update Via Wi-Fi
Automatic Detection	Auto-Vin / Auto-Scan Scan Vin / Plate Scan	Auto-Vin / Auto-Scan Scan Vin / Plate Scan	Auto-Vin / Auto-Scan Scan Vin / Plate Scan
Secure Gateway Access	Authorized FCA Access With Autoauth Account	Authorized FCA Access With Autoauth Account	Authorized FCA Access With Autoauth Account
License Plate Reader	Available On Select Vehicles	Available On Select Vehicles	Available On Select Vehicles
Vehicle Coverage	US, Asian & European 1996 And Newer Passenger / Light Duty Some Medium Duty	US, Asian & European 1996 And Newer Passenger / Light Duty Some Medium Duty	US, Asian & European 1996 And Newer Passenger / Light Duty Some Medium Duty
OBDII Test Modes	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6
Service Resets	26 Service Features	26 Service Features	26 Service Features
Diesel PM	Reset Diesel Emissions Light & Medium Duty Vehicles	Reset Diesel Emissions Light & Medium Duty Vehicles	Reset Diesel Emissions Light & Medium Duty Vehicles
System Diagnostics	Access All Modules In all systems	Access All Modules In all systems	Access All Modules In all systems
Component Activations	Bi-Directional Control	Bi-Directional Control	Bi-Directional Control
Enhanced Functions	Coding Adaptations	Coding Adaptations	Coding Adaptations
ADAS Calibration	ADASUpgrade & Frame Kit* Purchase Required	ADASUpgrade & Frame Kit* Purchase Required	ADASUpgrade & Frame Kit* Purchase Required
Battery Analysis	MAXIBAS Software**	MAXIBAS Software**	MAXIBAS Software**
Cloud Services	Remote programming, repair database & report storage	Remote programming, repair database & report storage	Remote programming, repair database & report storage
Complete TPMS Function	—	—	—
REPAIR ASSIST	GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS	GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS	GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS
TOPOLOGY MODULE MAPPING	COLOR-CODED ALL SYSTEM STATUS SCREEN ON SUPPORTED VEHICLES	COLOR-CODED ALL SYSTEM STATUS SCREEN ON SUPPORTED VEHICLES	COLOR-CODED ALL SYSTEM STATUS SCREEN ON SUPPORTED VEHICLES
RELEVANT CASES	DTC TROUBLESHOOTING	DTC TROUBLESHOOTING	DTC TROUBLESHOOTING
TECHNICAL SERVICE BULLETINS	AVAILABLE ON SELECT VEHICLES	AVAILABLE ON SELECT VEHICLES	AVAILABLE ON SELECT VEHICLES
OSCILLOSCOPE	—	VCMI 5-IN-ONE DEVICE: VCI MULTIMETER, WAVEFORM GENERATOR, CAN BUS TESTER	VCMI 5-IN-ONE DEVICE:ALSO INCLUDES VCI, J2534 MULTIMETER, WAVEFORM GENERATOR, CAN BUS TESTER
SPLIT SCREEN DISPLAY	—	—	VIEW MULTIPLE FUNCTIONS AT ONCE

MaxiSYS MS909 Questions & Answers FAQ

Question: Can this enter the battery code in a 2012 Audi s4?

Answer: Yes

Question: Does it come with scope leads and power cords?

Answer: Yes. It has everything you need to diagnose vehicles.

Question: Can you use a video scope with this scanner

Answer:
- Autel MaxiSys MS919 comes with a video scope inspection function.
The MaxiFlash VCMI that comes with the Autel Scanner MaxiSys MS919 is a reliable low-end computer with powerful accessories for devices such as an oscilloscope, Waveform generator, multimeter, and CAN BUS tester.
It also supports multiple transmission protocols simultaneously such as KPW, CAN, CAN-FD, DoIP, etc.
- You can also use the Autel MV105 / MV108 video scope with Autel MaxiSys MS919.

Question: What is the difference between Ultra and MaxiSys 919

Answer: Autel MaxiSys 919 Updated 2021 Version - One of the most advanced and economical vehicle diagnostic tools you can find on the market.
The updated MS919 has featured all the features like 5-in-1 VCMI, OEM technical service bulletin, 36+ special functions, 10+ advanced functions, and technical support.
Generally through the diagnostic function, Autel Ultra = MS919
For the money selling, it's the Autel Ultra> MS919
Undoubtedly, the Autel MS919 scanner is the most cost-effective diagnostic tool, and it differs little from the Ultra in terms of software function and hardware configuration.
Compared with Ultra, MS919 is equipped with almost all functions and saves you thousands of dollars.

Question: Can you reprogram and/or change the Mack ECU

Answer: The Autel MaxiSys MS919 comes with vehicle ECU programming and ECU coding functionality.

Question: Can the Module topology be compatible with all cars?

Answer: Autel MaxiSys 919 comes with a module topology function, which makes displaying information more intuitive and systematic.
You can zoom in and out to view the communication structure between the units. The MS919 can display fault codes and access the system to perform functions.
But due to the different compatibility of product systems, this function is not universally compatible with all vehicles, and it is under improvement

Question: What does the intelligent diagnosis mean, and this is the basic function of MS919?

Answer: As the most ambitious scanner developed by Autel, the core function of Autel MS919 is intelligent diagnosis.
The newly added Repair Assist and TSB can merge and prioritize all detected fault codes.
It also provides related repair tips, videos, and cases for your reference.
1. Technical Service Bulletin - Contains recalls related to DTC, TSB, and OEM campaigns.
2. DTC Analysis - Provides repair help information related to the fault code.
3. Repair Assistant - Intelligently prioritizes DTC and directs the user to the appropriate repair.

Question: How does the Maxisys MS919 compare to the Maxisys Elite?

Answer: The newly released 2021 Autel MaxiSys 919 is an upgraded version of MS Elite, which is a more cost-effective tablet scanner that has covered all the features offered by MS Elite.
It is a special diagnostic tool for professional mechanics and auto repair chains since it covers 99% of vehicles worldwide.
The updated MS919 has featured all the features like 5-in-1 VCMI, OEM technical service bulletin, 36+ special functions, 10+ advanced functions, and technical support.

MaxiSYS MS909 Reviews From our Clint

Customer1 Review A great professional scanner/programming tool.
As a professional mechanic with over 25 years of experience, I highly recommend it.
It's a "next level" scanner to make things easier for your store and a powerful scanner/programming tool that gets you to solve problems without hiring a third party.
I have a snapshot on the scanner but this is so much better than a snapshot.
With this, I can do
